- Powder coated epoxy cast iron cylindrical O.D. housing with extended inner ring bearings
- Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
- Felt labyrinth seal and flinger for dry and dusty environment
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

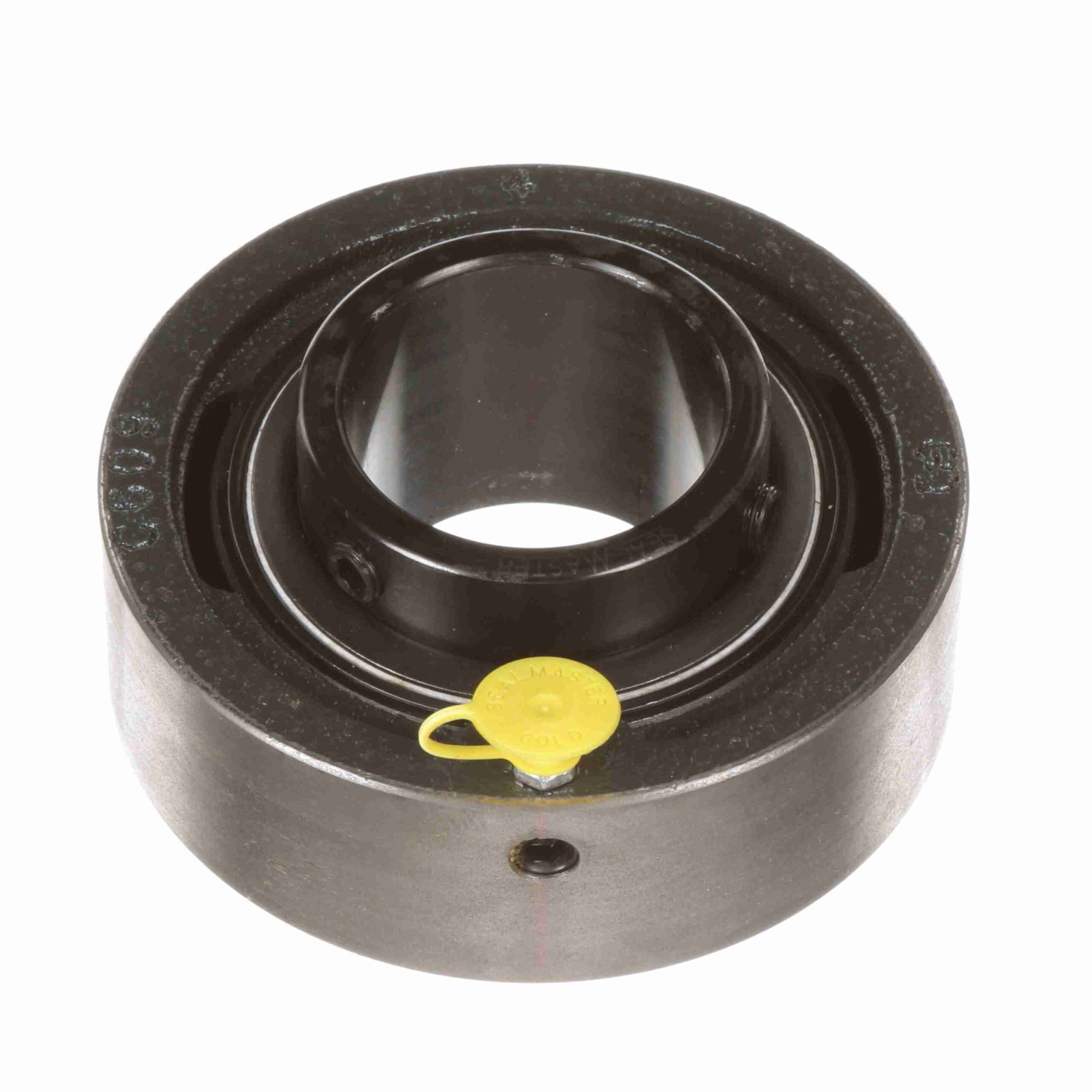

SC-210
Sealmaster Mounted Cast Iron Cylindrical Cartridge Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – SC-210
$383.79
Out of stock
Out of stock
| Insert Material: | 52100 Bearing Steel, Black Oxided | Rolling Element: | Ball Bearing |
|---|---|---|---|
| Seal Type: | Felt Labyrinth Seal | Measure Units: | Metric |
| Misalignment: | ±2.0° Misalignment - Static Only | Internal Clearance: | Standard |
| Radial Dynamic Load Capacity (lb): | 7, 889 lb | Bore Shape: | Straight |
| Housing Construction: | One Piece | Replaceable Insert: | Yes |
| Platform: | Gold Line Ball Bearing | End Cap: | No |
| Housing Color: | Gray | Outer Ring Land Profile: | Standard |
| Bearing Insert Coating: | Black Oxide Coated | Misalignment Type: | Static Only |
| Radial Static Load Capacity (lb): | 5, 216 lb | Series: | SC |
| Cage Material: | PPS | Lubrication Type: | Lithium Complex NLGI 2 Grease |
| Maximum Speed (RPM): | 3550 rpm | Retainer Type: | Land Riding Retainer |
| Housing Material: | Cast Iron | Housing Style: | Cartidge Block |
| Housing Type: | Cartridge, Cylindrical | Fixed vs. Expansion: | Fixed |
| Locking Type: | Setscrew | Duty/Series: | Standard Duty |
| Insert Number: | 5210 | Maximum Operating Temperature (F): | 220 °F |
| Inner Race Heat Treat Method: | Zone-Hardened | Ability to Relubricate: | Yes |
| UPC: | 662461000000 | Weight: | 4.90 LB |
| Packaged Length: | 5 Inches | Packaged Width: | 2 Inches |
| Packaged Height: | 5 Inches | HTC: | 8482.10.5052 |
| Country of Origin: | Mexico |
