- 22200 series spherical bearing
- Single row separated spherical rolling elements
- Oil hole and annular lubrication groove
- Nylaplate® seal on both sides
- Standard internal clearance
- Tapered bore
SB 22205K W33 SS

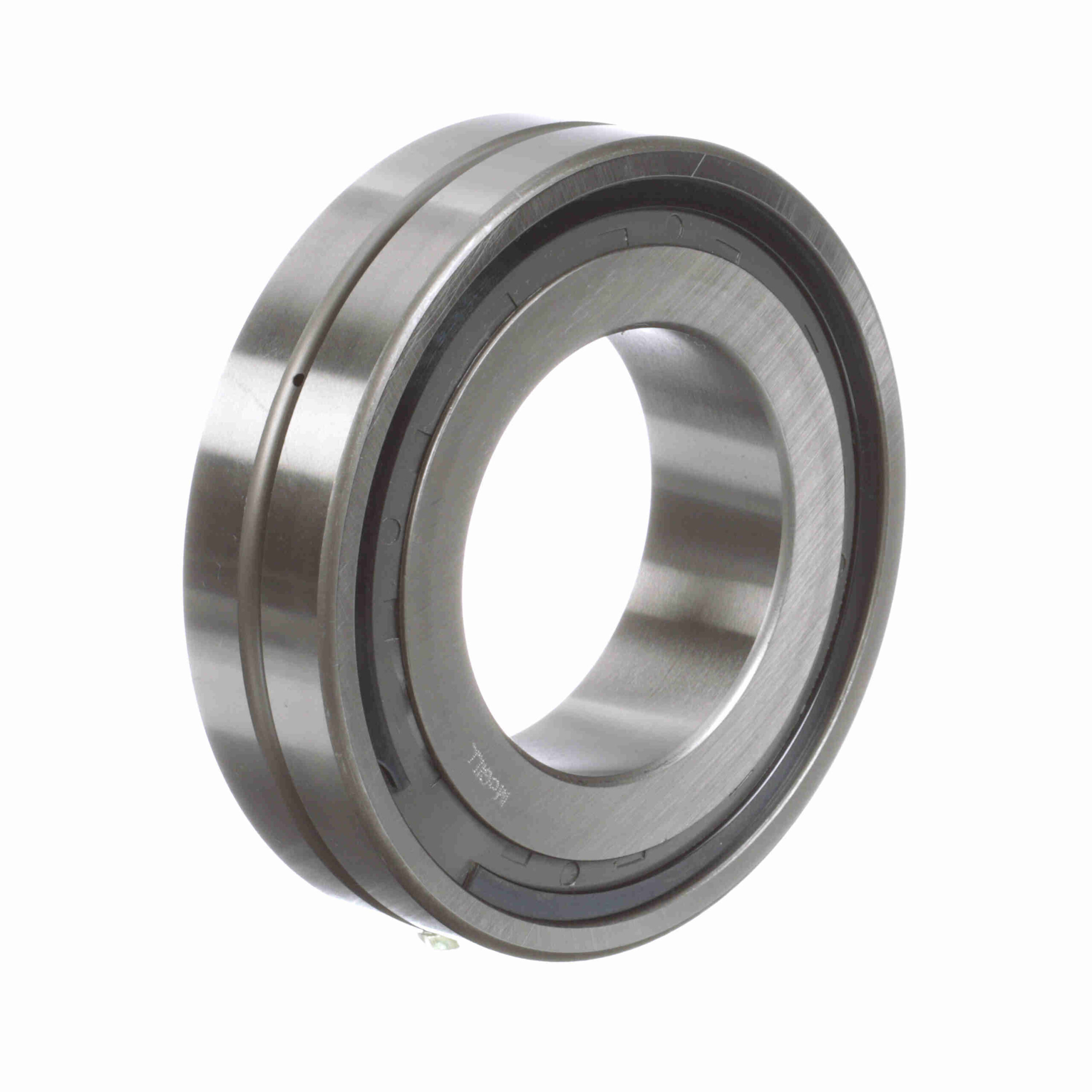

McGill SPHERE-ROL® Radial Spherical Roller Bearing – Tapered Bore – Sealed – SB 22205K W33 SS
$244.04
Out of stock
Out of stock
| Series: | 22200 | Seal Type: | Single Seal |
|---|---|---|---|
| Cage Material: | Steel | Angular Misalignment: | 2° |
| Misalignment: | Yes | Material: | 52100 Bearing Steel |
| Rolling Element: | Spherical Roller | Bore Type: | Tapered |
| Number of Rows: | 1 | Radial Clearance: | C0 |
| Duplexing: | No | Speed (Max) Oil (RPM): | 10, 000 rpm |
| Speed (Max) Grease (RPM): | 5, 000 rpm | Full Complement/Caged: | Caged |
| Platform: | SPHERE-ROL® | Sealed: | Sealed - Both Sides |
| Lubrication Hole Type: | Lubrication Groove & Hole | Precision Rating: | P0, ISO 15-2094 |
| Outer Ring Type: | Not split | Finish/Coating: | Uncoated |
| Dynamic Load Rating (kN): | 40.3 kN | Mounting Method: | Adapter Mount |
| Operating Temperature Range (F): | -30 to 300 °F °F | Maximum Operating Temperature (F): | 300 °F |
| UPC: | 726166001438 | Weight: | 0.40 LB |
| Packaged Length: | 2.63 Inches | Packaged Width: | 1.31 Inches |
| Packaged Height: | 2.63 Inches | HTC: | 8482.30.0040 |
| Country of Origin: | United States of America |
