- Lifetime Warranty – If this bushing ever fails Browning will replace it Free of charge.
- Solid Flange, Double Split Barrel – Assures better concentricity to the shaft.
- Key to Key Drive – With keys on both the shaft and product to provide the strongest possible drive.
- 3/4″ per Foot Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
S1 2 13/16

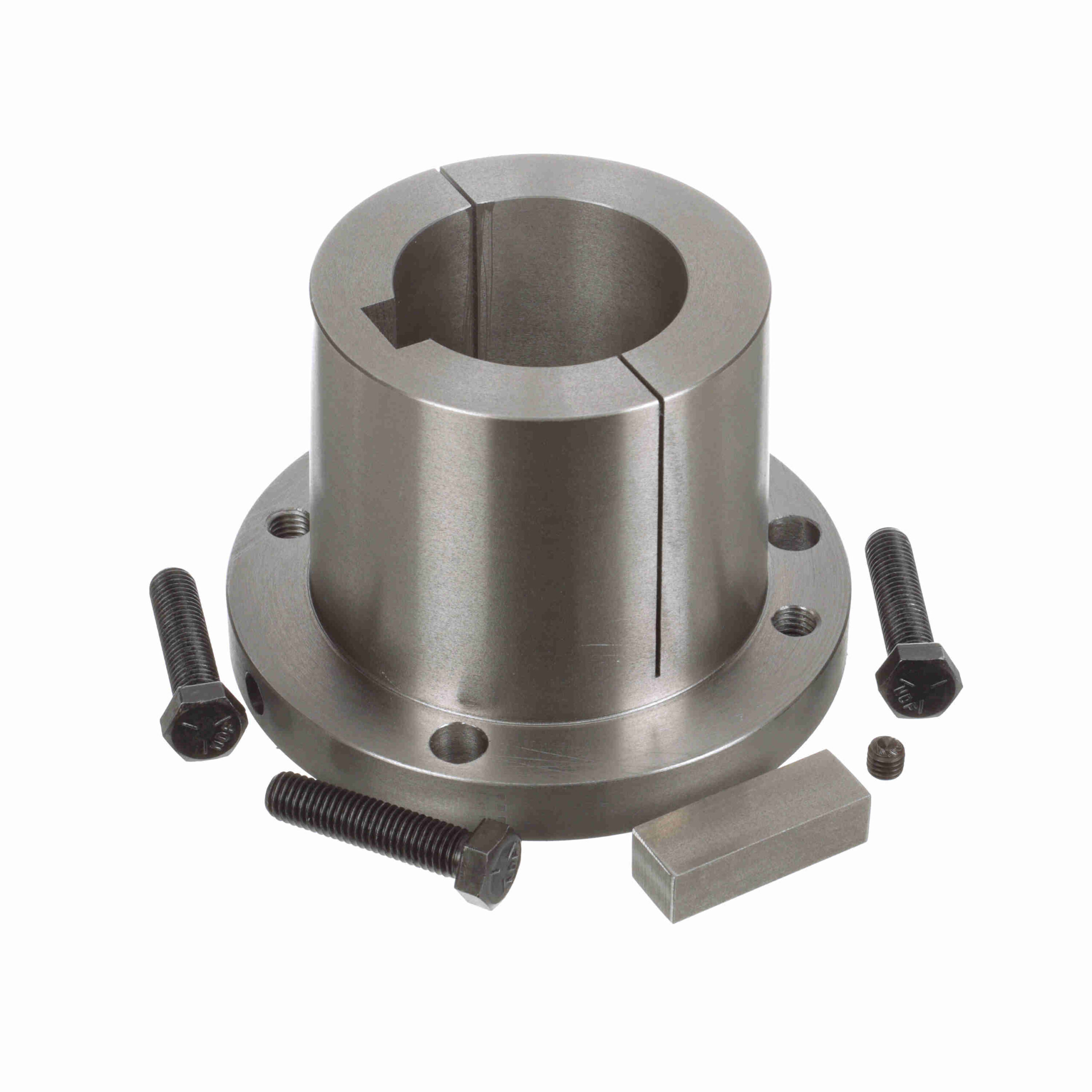

Browning Split Taper Bushing – Inch Bore Type – S1 2 13/16
$564.57
Out of stock
Out of stock
| Compatible Bore Size [Max] (in): | 2.8125 in | Bushing Type: | S1 |
|---|---|---|---|
| Bore Size (in): | 2.8125 in | Total Length (in): | 4.375 in |
| Material: | Sintered Steel or Ductile Iron | Outside Diameter (in): | 6.375 in |
| Keyseat: | 3/4 x 3/8 | Model Name: | S1-S2_Type1_BushingMaster |
| Cap Screws (Size): | 1/2 x 2 1/4 | Length Through Bore (in): | 4.375 in |
| Wrench Torque (in-lb): | 840 | Product Type: | Split Taper Bushing |
| Cap Screws (No.): | 3 | Bore Type: | Inch |
| UPC: | 662289858699 | Weight: | 14.20 LB |
| Packaged Length: | 6.38 Inches | Packaged Width: | 4.5 Inches |
| Packaged Height: | 6.38 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
