- Lifetime Warranty – If this bushing ever fails Browning will replace it Free of charge.
- Solid Flange, Double Split Barrel – Assures better concentricity to the shaft.
- Key to Key Drive – With keys on both the shaft and product to provide the strongest possible drive.
- 3/4″ per Foot Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
S1 2 1/2

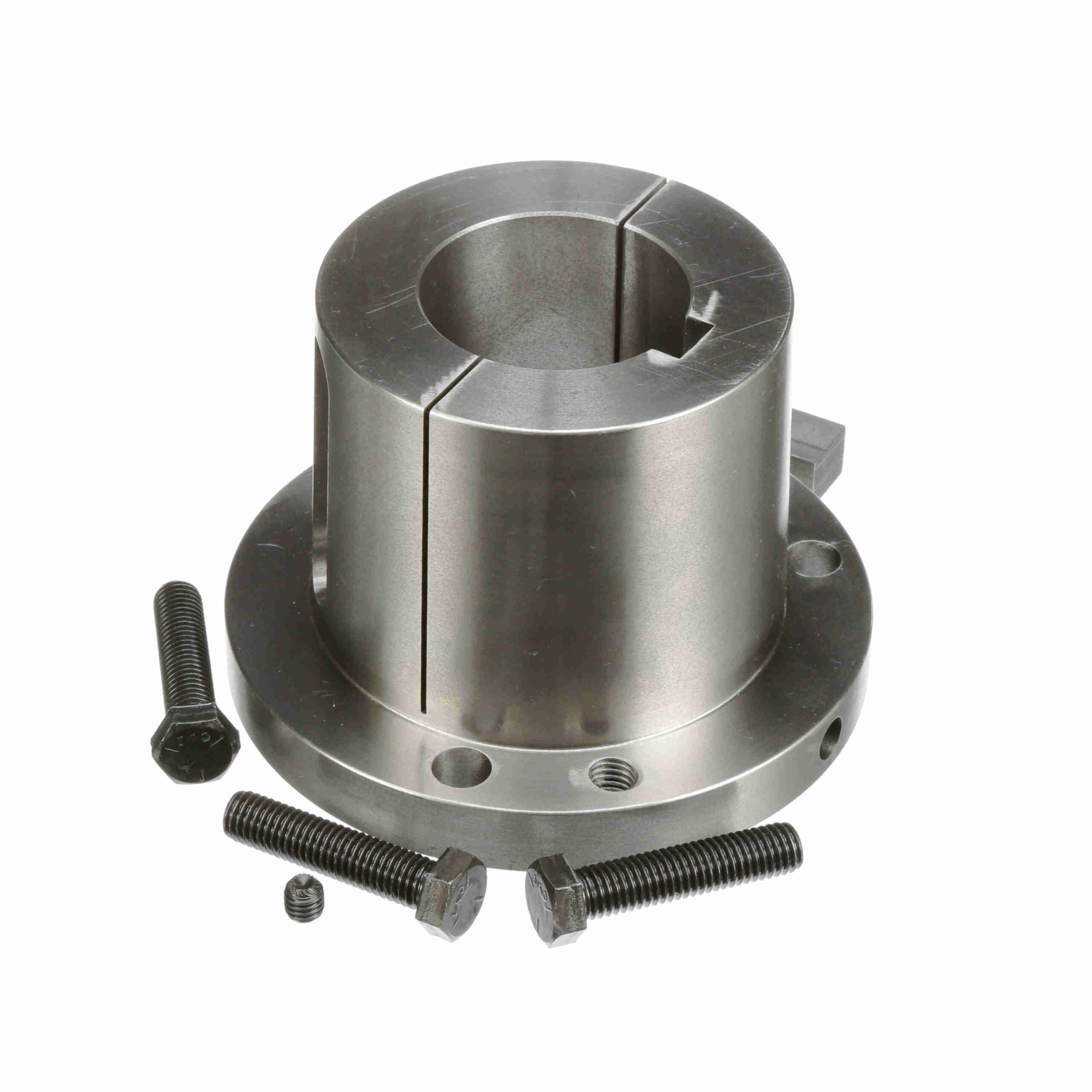

Browning Split Taper Bushing – Inch Bore Type – S1 2 1/2
$326.74
Out of stock
Out of stock
| Cap Screws (Size): | 1/2 x 2 1/4 | Bushing Type: | S1 |
|---|---|---|---|
| Bore Size (in): | 2.5 in | Product Type: | Split Taper Bushing |
| Keyseat: | 5/8 x 5/16 | Length Through Bore (in): | 4.375 in |
| Outside Diameter (in): | 6.375 in | Model Name: | S1-S2_Type1_BushingMaster |
| Wrench Torque (in-lb): | 840 | Material: | Sintered Steel or Ductile Iron |
| Total Length (in): | 4.375 in | Compatible Bore Size [Max] (in): | 2.5 in |
| Cap Screws (No.): | 3 | Bore Type: | Inch |
| Barrel Diameter (Large End): | 4.625 | Barrel Diameter (Small End): | 4.418 |
| Bolt Circle Diameter (in): | 5.375 | Thread Size: | 1/2-13 |
| Mounting Type: | Conventional | Flange Type: | Solid Flange |
| Flange Thickness: | 0.75 | Includes: | Set Screw, Cap Screws and Ext. Key |
| Screw Length: | 2.25 | UPC: | 662289291267 |
| Weight: | 15.81 LB | Packaged Length: | 7 Inches |
| Packaged Width: | 7.1 Inches | Packaged Height: | 4.7 Inches |
| HTC: | 8483.90.8080 | Country of Origin: | Mexico |
