- Heavy duty tapered roller bearings with steel cage for radial, thrust and combined loading
- Race-mounted contact flinger seal
- Single-collar interlock with 120° spacing setscrew lock, diamond faceted setscrews
- Fluoropolymer-coated 2-bolt split cast iron housing for improved corrosion resistance
- USDA H-1 approved Food-grade grease

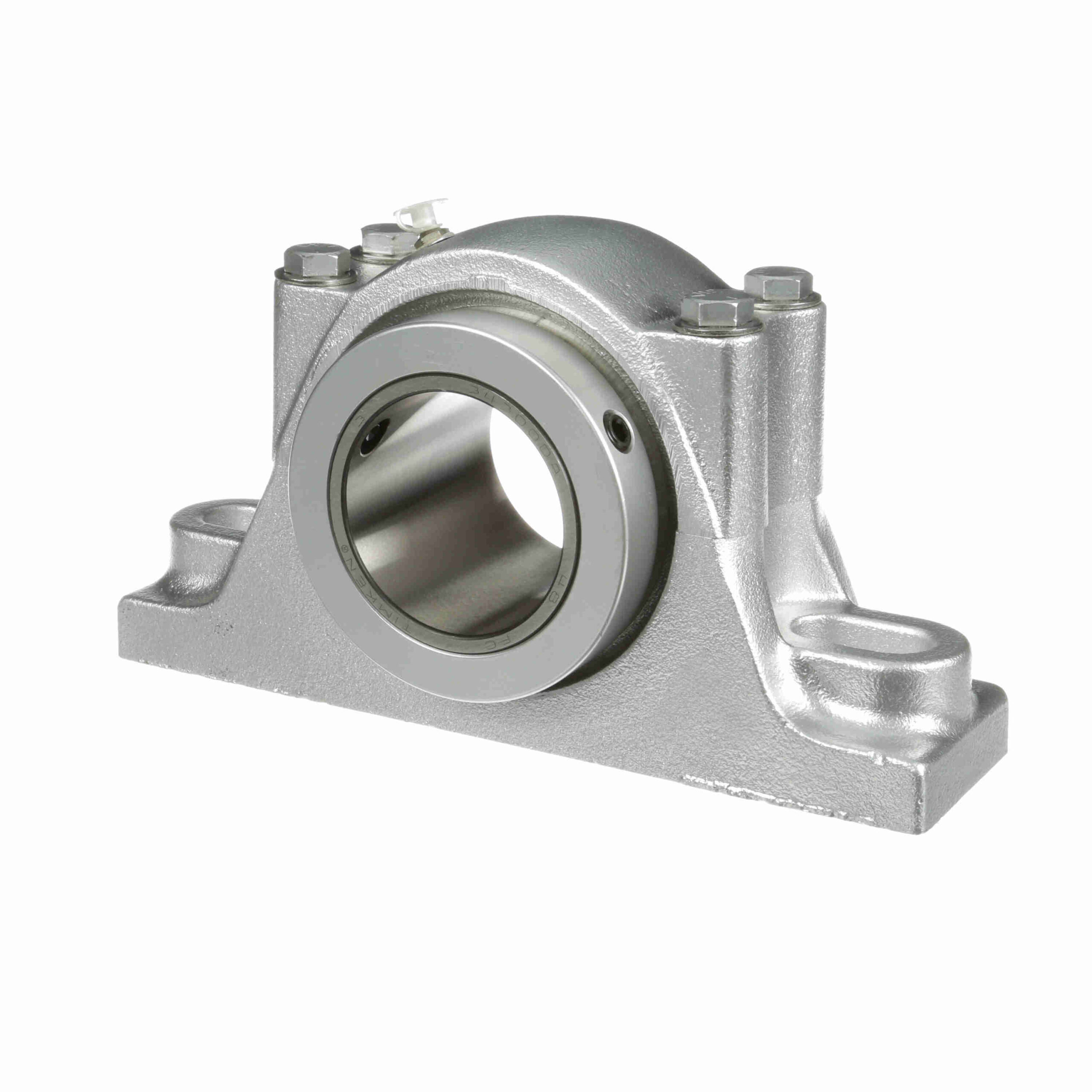

RPBA 204-C2 CR
Sealmaster Mounted Flouropolymer Coated Cast Iron Two Bolt Pillow Block Tapered Roller – 52100 Bearing Steel – Collar Mount Lock – Corrosion Resistant – RPBA 204-C2 CR
$4,115.78
Out of stock
Out of stock
| Housing Base: | Solid | Maximum Operating Temperature: | 220 °F |
|---|---|---|---|
| Inner-Race Heat-Treat Method: | Case Carburized Inner Ring | Housing Material: | Flouropolymer Coated Cast Iron |
| Rolling Element: | Tapered Roller | Seal Type: | Single Lip Contact Seal |
| Insert Material: | 52100 Bearing Steel | Measure Units: | Inch |
| Housing Type: | Pillow Block, Two Bolt | Expansion: | No |
| Housing Construction: | Split Two Piece | Misalignment: | ±3.0° Misalignment - Static Only |
| Duty Series: | Standard | Radial Dynamic Load Capacity (lb): | 9, 030 |
| Insert No.: | RCIA-204C FG1 | Speed (Max): | 2000 |
| Bore Shape: | Straight | Locking Type: | Collar Mount |
| Lubrication: | Lithium; EP; NLGI#2 | Relubricatable: | Yes |
| Internal Clearance: | Standard | Replaceable Insert: | Yes |
| Bearing Insert Coating: | Uncoated | Misalignment Type: | Static Only |
| Platform: | CR Series | Retainer Material: | Steel |
| Outer Ring Land Profile: | Standard | End Cap: | No |
| Options: | Corrosion Resistant | Housing Color: | Silver/Gray |
| Series: | RPBA | Grease Fitting Thread Size: | 1/8 NPT |
| UPC: | 662461288771 | Weight: | 20.70 LB |
| Packaged Length: | 10.5 Inches | Packaged Width: | 5.88 Inches |
| Packaged Height: | 4.13 Inches | HTC: | 8483.20.8080 |
| Country of Origin: | United States of America |
