- Heavy duty tapered roller bearings with steel cage for radial, thrust and combined loading
- Race-mounted contact flinger seal
- Double-collar interlock with 120? spacing setscrew lock, diamond faceted setscrews
- Powder coat epoxy 2-bolt split cast iron housing

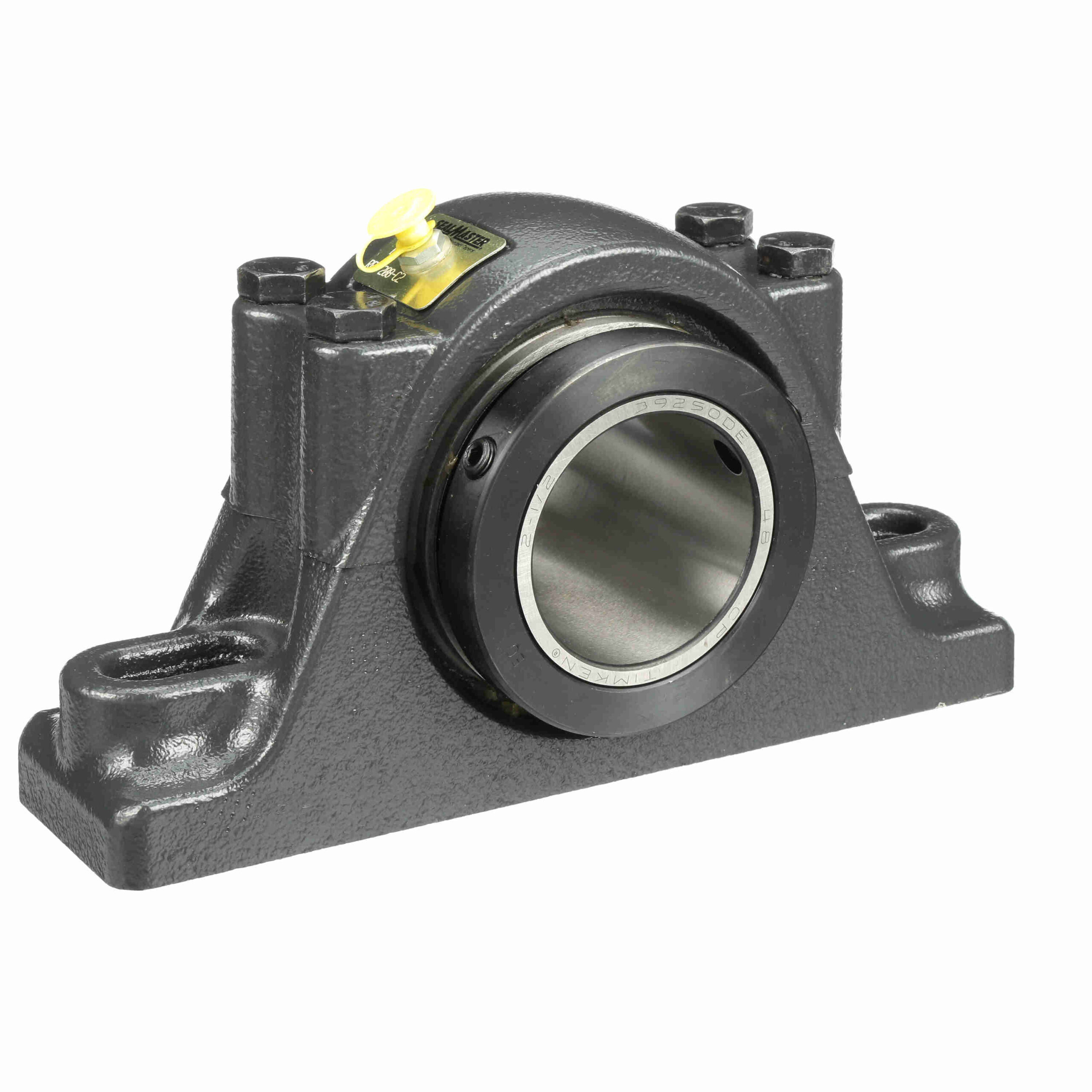

RPB 208-C2
Sealmaster Mounted Cast Iron Two Bolt Pillow Block Tapered Roller – 52100 Bearing Steel – Double Collar Mount Lock – RPB 208-C2
$665.23
Availability: 2 in stock
Availability: 2 in stock
| Seal Type: | Single Lip Contact Seal | Insert Material: | 52100 Bearing Steel |
|---|---|---|---|
| Maximum Operating Temperature: | 220 °F | Housing Material: | Cast Iron |
| Measure Units: | Inch | Expansion: | No |
| Housing Base: | Solid | Inner-Race Heat-Treat Method: | Case Carburized Inner Ring |
| Rolling Element: | Tapered Roller | Housing Type: | Pillow Block; Two Bolt |
| Housing Construction: | Split Two Piece | Insert No.: | RCI-208C |
| Relubricatable: | Yes | Lubrication: | Lithium; EP; NLGI#2 |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 9, 030 |
| Misalignment: | ±3.0° Misalignment - Static Only | Locking Type: | Double Collar Mount |
| Duty Series: | Standard | Speed (Max): | 2000 |
| Internal Clearance: | Standard | Housing Color: | Gray |
| End Cap: | No | Replaceable Insert: | Yes |
| Misalignment Type: | Static Only | Platform: | RPB Series |
| Retainer Material: | Steel | Bearing Insert Coating: | Uncoated |
| Outer Ring Land Profile: | Standard | Series: | RPB |
| Grease Fitting Thread Size: | 1/8 NPT | UPC: | 662288493587 |
| Weight: | 19.50 LB | Packaged Length: | 5.88 Inches |
| Packaged Width: | 10.5 Inches | Packaged Height: | 4.13 Inches |
| HTC: | 8483.20.8080 | Country of Origin: | United States of America |
