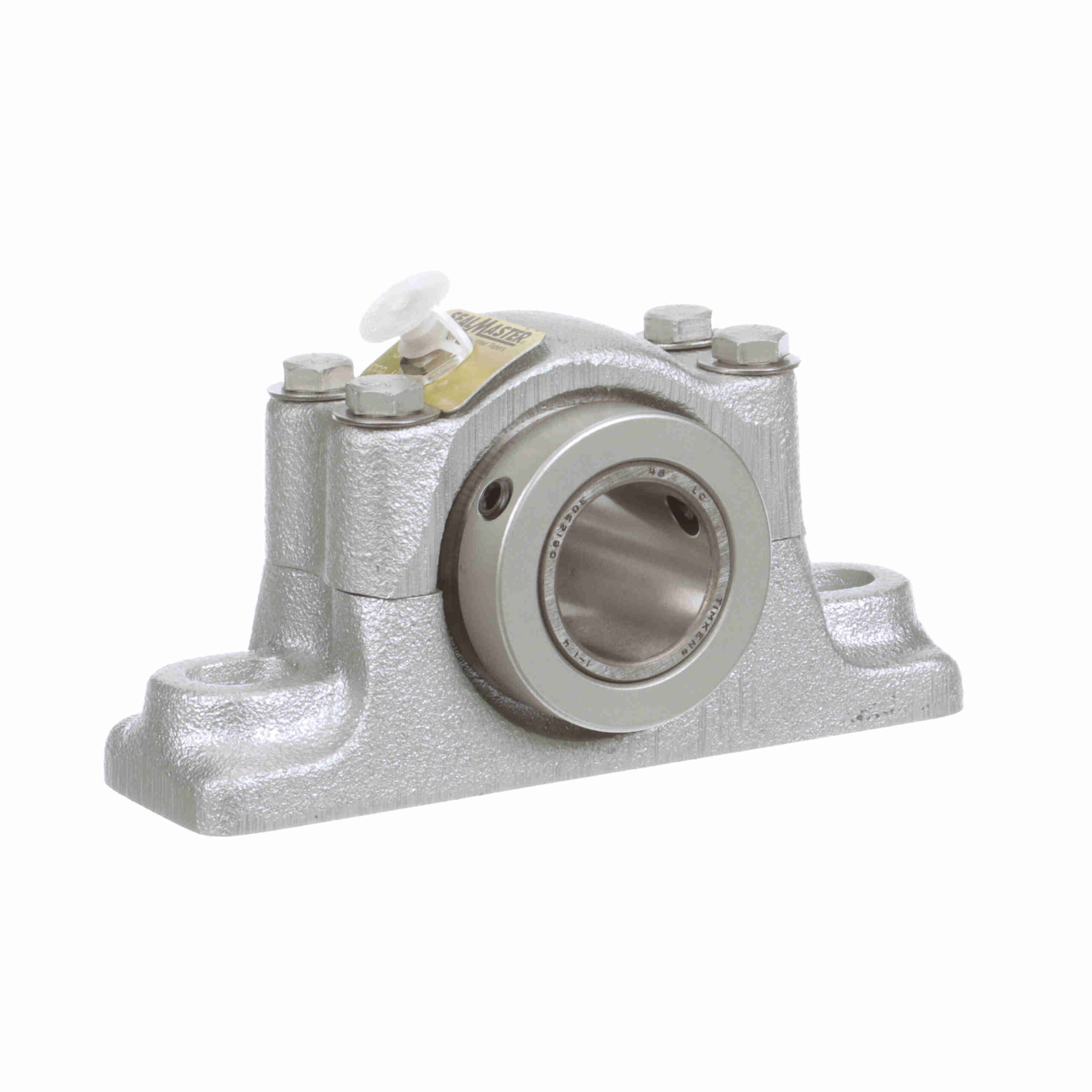

RPB 104-C2 CR

Heavy duty tapered roller bearings with steel cage for radial, thrust and combined loading
Race-mounted contact flinger seal
Double-collar interlock with 120° spacing setscrew lock, diamond faceted setscrews
Fluoropolymer-coated 2-bolt split cast iron housing for improved corrosion resistance
USDA H-1 approved Food-grade grease

Inner-Race Heat-Treat Method:	Case Carburized Inner Ring	Maximum Operating Temperature:	220 °F
Housing Type:	Pillow Block, Two Bolt	Housing Material:	Flouropolymer Coated Cast Iron
Expansion:	No	Seal Type:	Single Lip Contact Seal
Measure Units:	Inch	Insert Material:	52100 Bearing Steel
Rolling Element:	Tapered Roller	Housing Base:	Solid
Housing Construction:	Split Two Piece	Misalignment:	±3.0° Misalignment - Static Only
Relubricatable:	Yes	Insert No.:	RCI-104C FG1
Radial Dynamic Load Capacity (lb):	2, 975	Internal Clearance:	Standard
Locking Type:	Double Collar Mount	Speed (Max):	4000
Duty Series:	Standard	Lubrication:	Lithium; EP; NLGI#2
Bore Shape:	Straight	Platform:	CR Series
Housing Color:	Silver/Gray	Bearing Insert Coating:	Uncoated
Replaceable Insert:	Yes	Misalignment Type:	Static Only
Outer Ring Land Profile:	Standard	End Cap:	No
Retainer Material:	Steel	Options:	Corrosion Resistant
Series:	RPB	Grease Fitting Thread Size:	1/8 NPT
UPC:	662288825968	Weight:	4.80 LB
Packaged Length:	9 Inches	Packaged Width:	5 Inches
Packaged Height:	3.38 Inches	HTC:	8483.20.8080
Country of Origin:	United States of America
