- Heavy duty tapered roller bearings with steel cage for radial, thrust and combined loading
- Race-mounted contact flinger seal
- Single-collar interlock with 120° spacing setscrew lock, diamond faceted setscrews
- Powder coat epoxy split cast iron housing
RFPA 315C

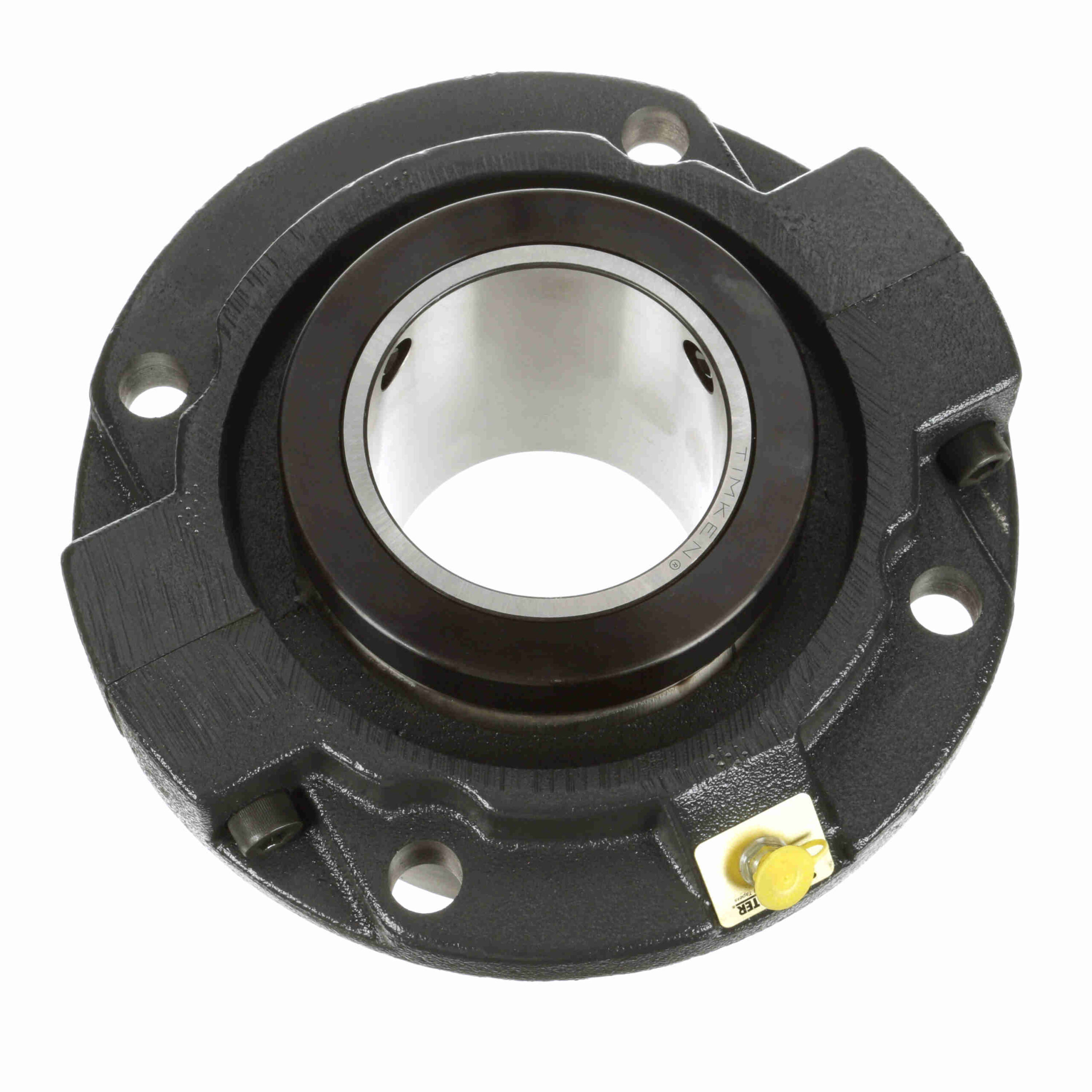

Sealmaster Mounted Cast Iron Piloted Flange Tapered Roller – 52100 Bearing Steel – Collar Mount Lock – RFPA 315C
$3,862.37
Out of stock
Out of stock
| Measure Units: | Inch | Maximum Operating Temperature: | 220 °F |
|---|---|---|---|
| Seal Type: | Single Lip Contact Seal | Rolling Element: | Tapered Roller |
| Insert Material: | 52100 Bearing Steel | Housing Material: | Cast Iron |
| Bore Shape: | Straight | Housing Type: | Flange, Piloted |
| Expansion: | Non-Expansion Bearing (Fixed) | Pilot Configuration: | With Pilot |
| Relubricatable: | Yes | Insert No.: | RCIA 315C |
| Speed (Max): | 1250 | Inner-Race Heat-Treat Method: | Case Carburized Inner Ring |
| Misalignment: | ±3.0° Misalignment - Static Only | Duty Series: | Standard |
| Internal Clearance: | Standard | Housing Construction: | Split Two Piece |
| Lubrication: | Lithium; EP; NLGI#2 | Locking Type: | Collar Mount |
| Housing Color: | Gray | Replaceable Insert: | Yes |
| Platform: | RPB Series | Outer Ring Land Profile: | Standard |
| Bearing Insert Coating: | Uncoated | End Cap: | No |
| Misalignment Type: | Static Only | Retainer Material: | Steel |
| Series: | RFPA | Grease Fitting Thread Size: | 1/8 NPT |
| UPC: | 662288487111 | Weight: | 55.20 LB |
| Packaged Length: | 11 Inches | Packaged Width: | 11 Inches |
| Packaged Height: | 6.63 Inches | HTC: | 8483.20.4080 |
| Country of Origin: | United States of America |
