- Heavy duty tapered roller bearings with steel cage for radial, thrust and combined loading
- Race-mounted felt-lined flinger seal
- Double-collar interlock with 120? spacing setscrew lock, diamond faceted setscrews
- Powder coat epoxy split cast iron housing
RFB 300

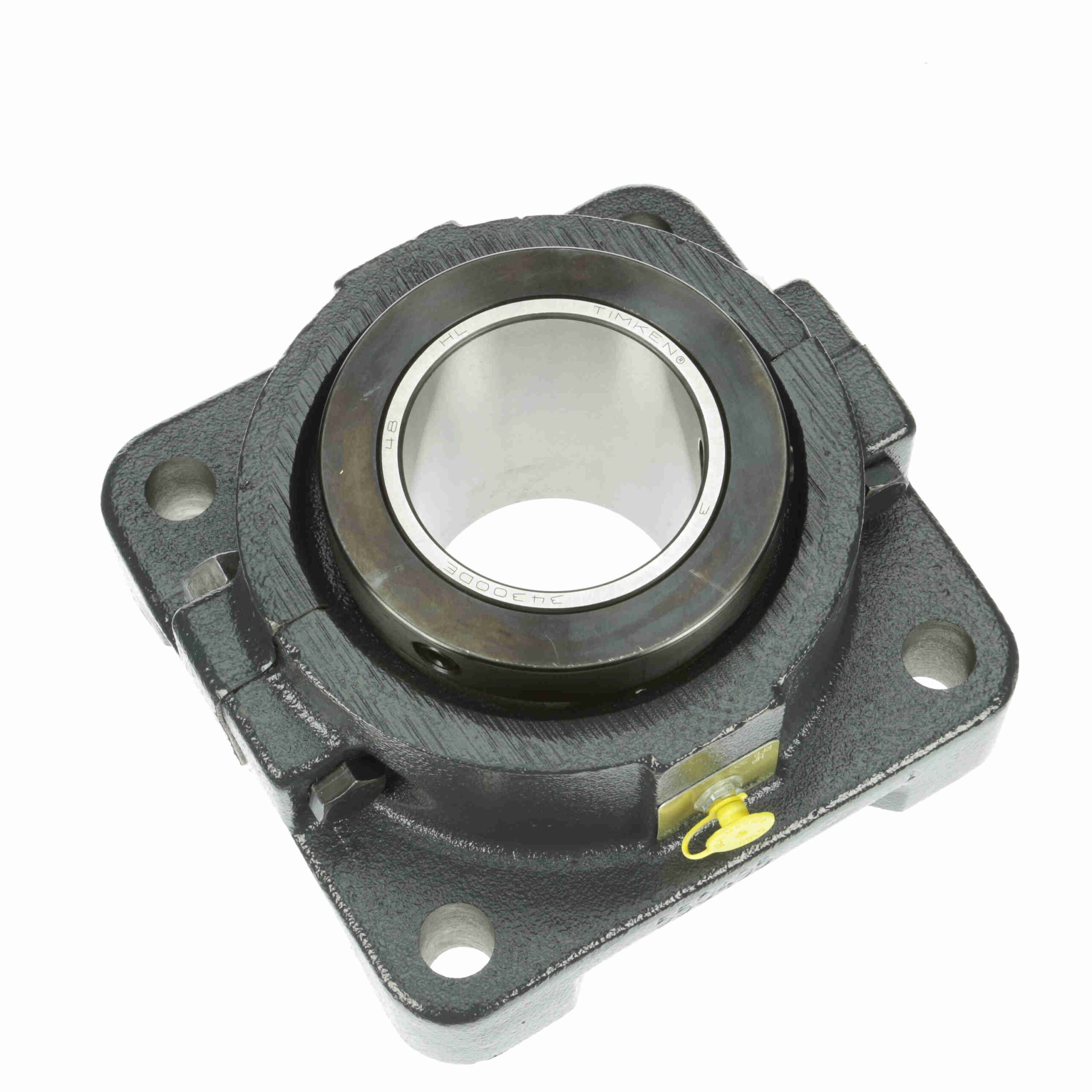

Sealmaster Mounted Cast Iron Four Bolt Flange Tapered Roller – 52100 Bearing Steel – Double Collar Mount Lock – RFB 300
$1,143.06
Availability: 3 in stock
Availability: 3 in stock
| Insert Material: | 52100 Bearing Steel | Expansion: | Non-Expansion Bearing (Fixed) |
|---|---|---|---|
| Maximum Operating Temperature: | 220 °F | Seal Type: | Felt Labyrinth Seal |
| Housing Base: | Solid | Rolling Element: | Tapered Roller |
| Speed (Max): | 1750 | Bore Shape: | Straight |
| Housing Material: | Cast Iron | Measure Units: | Inch |
| Inner-Race Heat-Treat Method: | Case Carburized Inner Ring | Housing Type: | Flange; Four Bolt |
| Relubricatable: | Yes | Pilot Configuration: | No Pilot |
| Insert No.: | RCI-300 | Misalignment: | ±3.0° Misalignment - Static Only |
| Locking Type: | Double Collar Mount | Housing Construction: | Split Two Piece |
| Duty Series: | Standard | Internal Clearance: | Standard |
| Lubrication: | Lithium; EP; NLGI#2 | Misalignment Type: | Static Only |
| Housing Color: | Gray | End Cap: | No |
| Bearing Insert Coating: | Uncoated | Replaceable Insert: | Yes |
| Retainer Material: | Steel | Outer Ring Land Profile: | Standard |
| Platform: | RPB Series | Series: | RFB |
| Grease Fitting Thread Size: | 1/8 NPT | UPC: | 662288480358 |
| Weight: | 32.65 LB | Packaged Length: | 8.88 Inches |
| Packaged Width: | 8.88 Inches | Packaged Height: | 8.63 Inches |
| HTC: | 8483.20.4080 | Country of Origin: | United States of America |
