- Lifetime Warranty – If this bushing ever fails Browning will replace it Free of charge.
- Solid Flange, Double Split Barrel – Assures better concentricity to the shaft.
- Key to Key Drive – With keys on both the shaft and product to provide the strongest possible drive.
- 3/4″ per Foot Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
R1 2 5/8

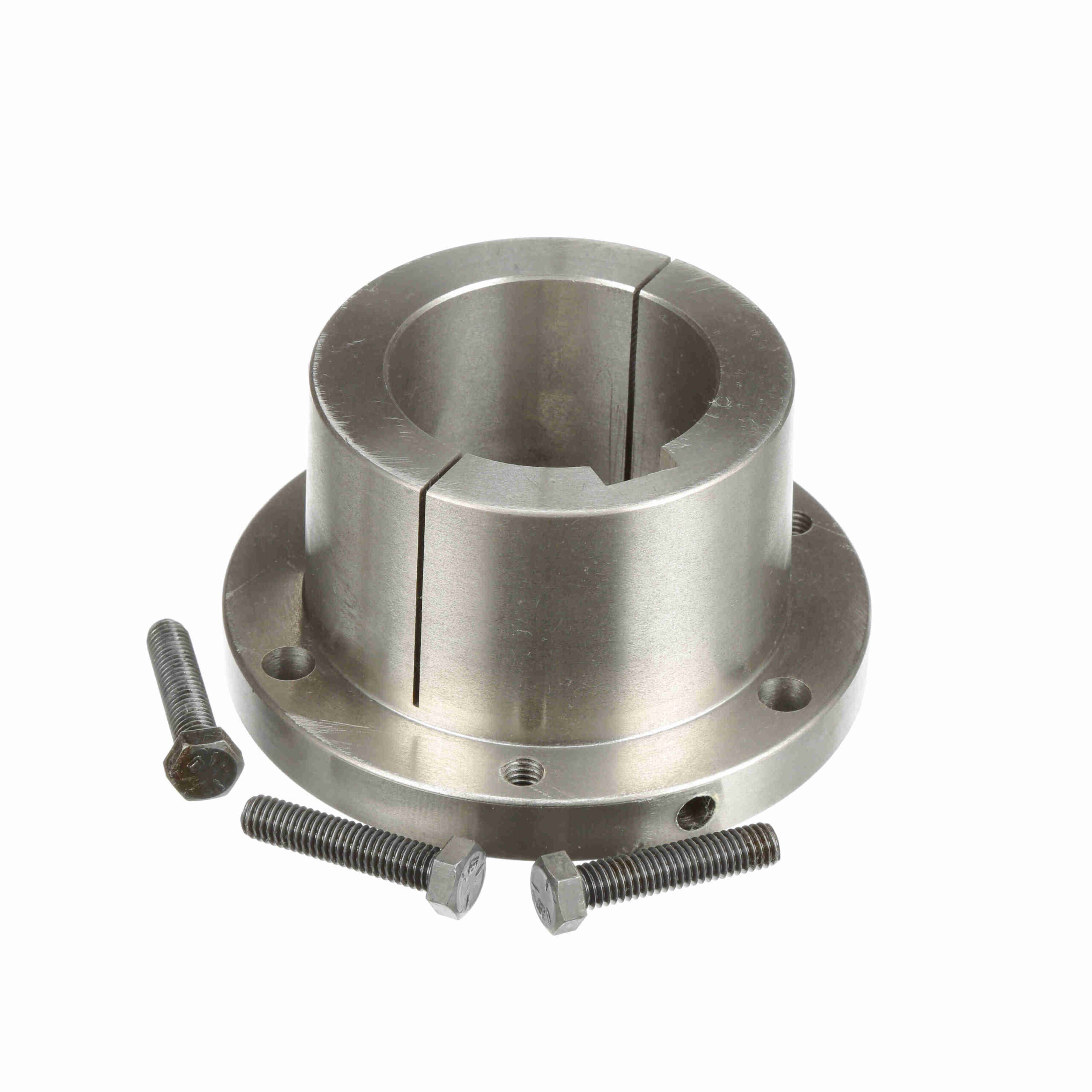

Browning Split Taper Bushing – Inch Bore Type – R1 2 5/8
$193.46
Out of stock
Out of stock
| Cap Screws (Size): | 3/8 x 1 3/4 | Keyseat: | 5/8 x 5/16 |
|---|---|---|---|
| Model Name: | R1-R2_Type1_BushingMaster | Total Length (in): | 2.875 in |
| Length Through Bore (in): | 2.875 in | Wrench Torque (in-lb): | 348 |
| Material: | Sintered Steel or Ductile Iron | Bushing Type: | R1 |
| Product Type: | Split Taper Bushing | Bore Size (in): | 2.625 in |
| Compatible Bore Size [Max] (in): | 2.625 in | Outside Diameter (in): | 5.375 in |
| Bore Type: | Inch | Cap Screws (No.): | 3 |
| Flange Type: | Solid Flange | Includes: | Set Screw, Cap Screws and Ext. Key |
| Screw Length: | 1.75 | Flange Thickness: | 0.625 |
| Barrel Diameter (Small End): | 3.875 | Barrel Diameter (Large End): | 4 |
| Thread Size: | 3/8-16 | Mounting Type: | Conventional |
| Bolt Circle Diameter (in): | 4.625 | UPC: | 662289140688 |
| Weight: | 6.73 LB | Packaged Length: | 5.5 Inches |
| Packaged Width: | 5.6 Inches | Packaged Height: | 3.1 Inches |
| HTC: | 8483.90.8080 | Country of Origin: | Mexico |
