- Lifetime Warranty – If this bushing ever fails Browning will replace it Free of charge.
- Solid Flange, Double Split Barrel – Assures better concentricity to the shaft.
- Key to Key Drive – With keys on both the shaft and product to provide the strongest possible drive.
- 3/4″ per Foot Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
R1 1 7/8

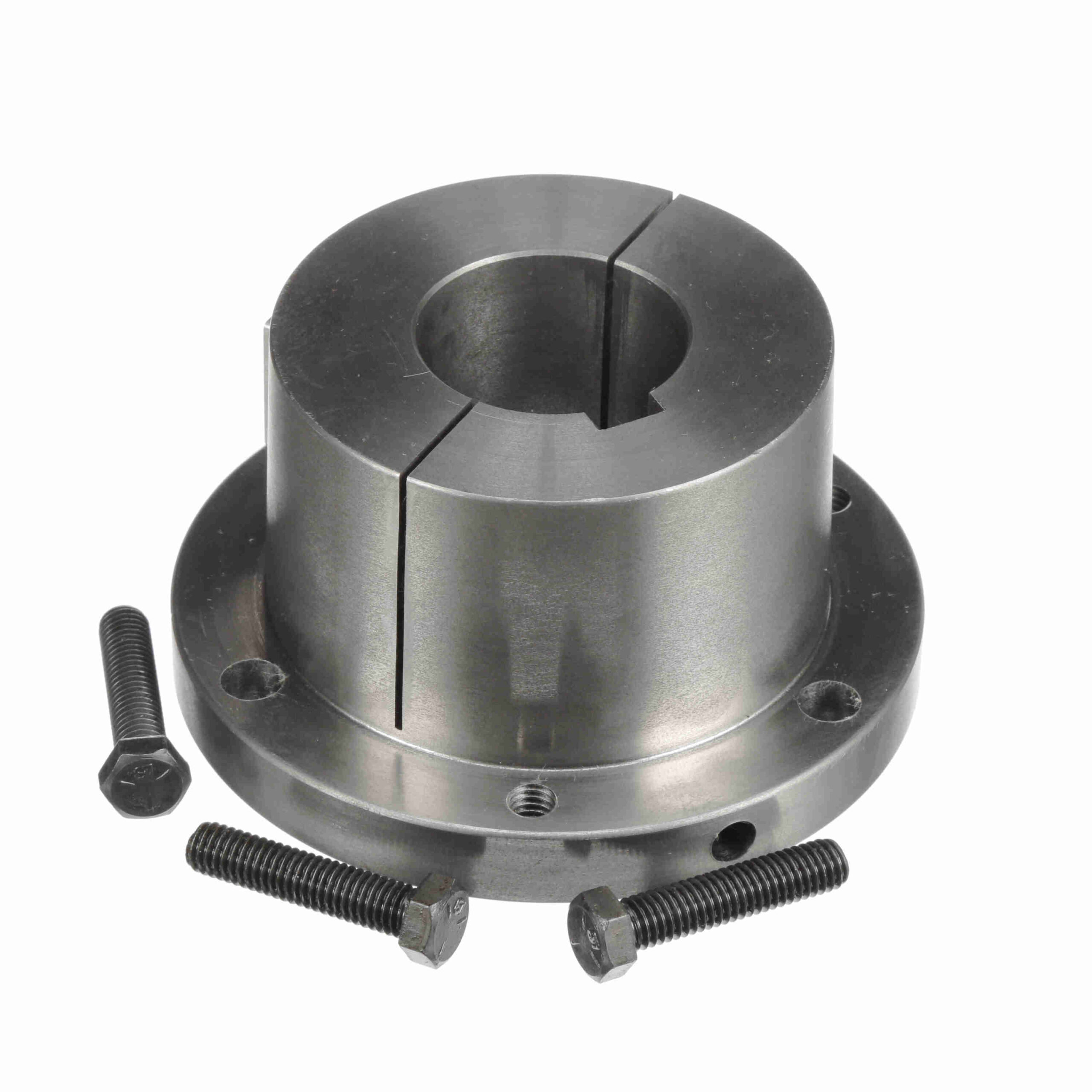

Browning Split Taper Bushing – Inch Bore Type – R1 1 7/8
$193.46
Out of stock
Out of stock
| Outside Diameter (in): | 5.375 in | Wrench Torque (in-lb): | 348 |
|---|---|---|---|
| Model Name: | R1-R2_Type1_BushingMaster | Total Length (in): | 2.875 in |
| Cap Screws (Size): | 3/8 x 1 3/4 | Compatible Bore Size [Max] (in): | 1.875 in |
| Keyseat: | 1/2 x 1/4 | Length Through Bore (in): | 2.875 in |
| Bushing Type: | R1 | Material: | Sintered Steel or Ductile Iron |
| Bore Size (in): | 1.875 in | Product Type: | Split Taper Bushing |
| Cap Screws (No.): | 3 | Bore Type: | Inch |
| UPC: | 662289300525 | Weight: | 8.65 LB |
| Packaged Length: | 5.5 Inches | Packaged Width: | 5.6 Inches |
| Packaged Height: | 3.2 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
