- Lifetime Warranty – If this bushing ever fails Browning will replace it Free of charge.
- Solid Flange, Double Split Barrel – Assures better concentricity to the shaft.
- Key to Key Drive – With keys on both the shaft and product to provide the strongest possible drive.
- 3/4″ per Foot Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
Q2 50 MM

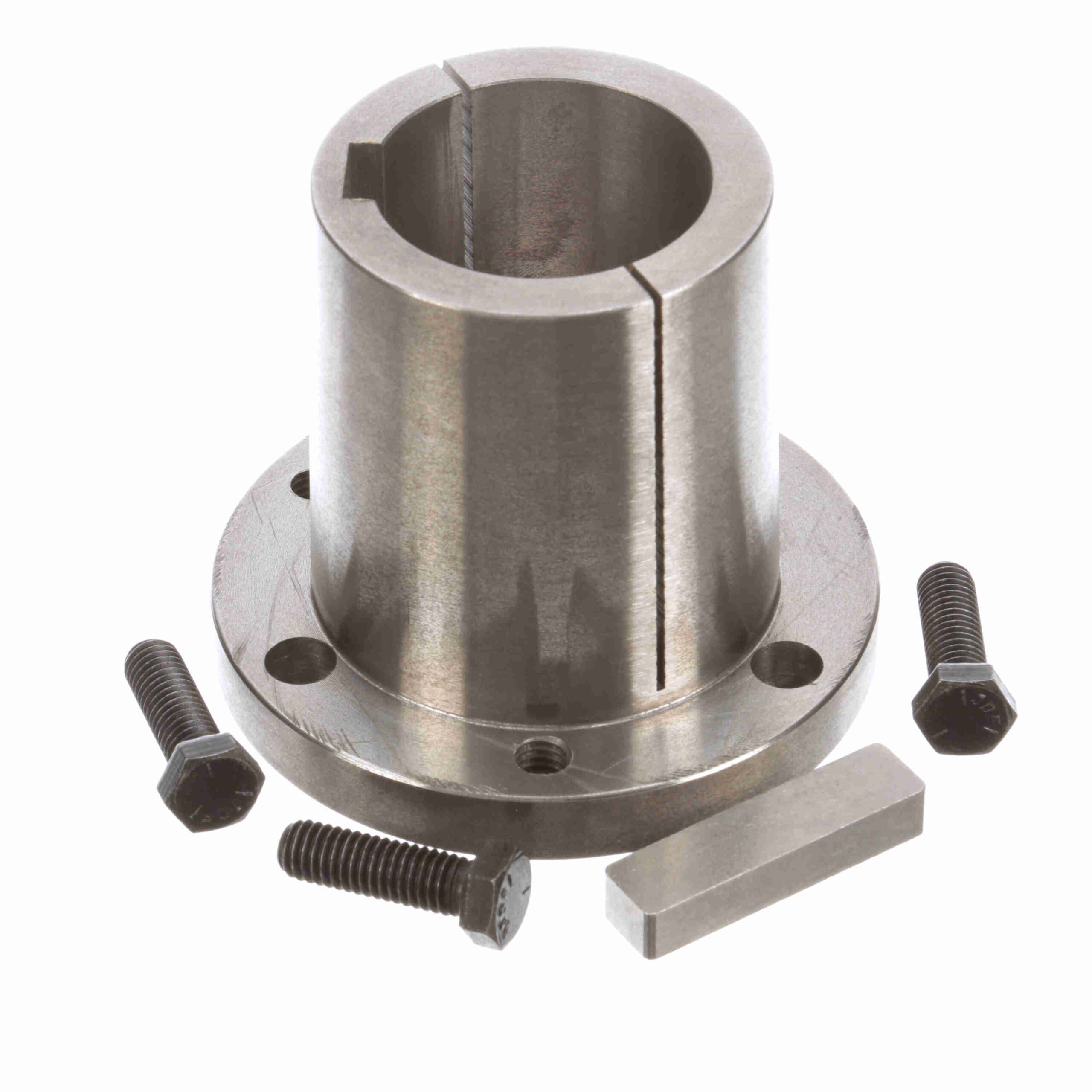

Browning Split Taper Bushing – Metric Bore Type – Q2 50 MM
$131.10
Out of stock
Out of stock
| Wrench Torque (in-lb): | 348 | Bore Size (mm): | 50 mm |
|---|---|---|---|
| Product Type: | Split Taper Bushing | Cap Screws (Size): | 3/8 x 1 1/4 |
| Total Length (in): | 3.5 in | Total Length (mm): | 88.9 mm |
| Keyseat (mm): | 14 x 4.5 mm | Material: | Sintered Steel, Malleable Iron or Ductile Iron |
| Outside Diameter (in): | 4.125 in | Compatible Bore Size [Max] (mm): | 50 mm |
| Bushing Type: | Q2 | Outside Diameter (mm): | 104.775 mm |
| Model Name: | Q2-Type1_Bushing_Master | Length Through Bore (mm): | 88.9 mm |
| Cap Screws (No.): | 3 | Bore Type: | Metric |
| UPC: | 662460623061 | Weight: | 4.21 LB |
| Packaged Length: | 4.6 Inches | Packaged Width: | 4.3 Inches |
| Packaged Height: | 2.7 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
