- Lifetime Warranty – If this bushing ever fails Browning will replace it Free of charge.
- Solid Flange, Double Split Barrel – Assures better concentricity to the shaft.
- Key to Key Drive – With keys on both the shaft and product to provide the strongest possible drive.
- 3/4″ per Foot Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
Q1 32 MM

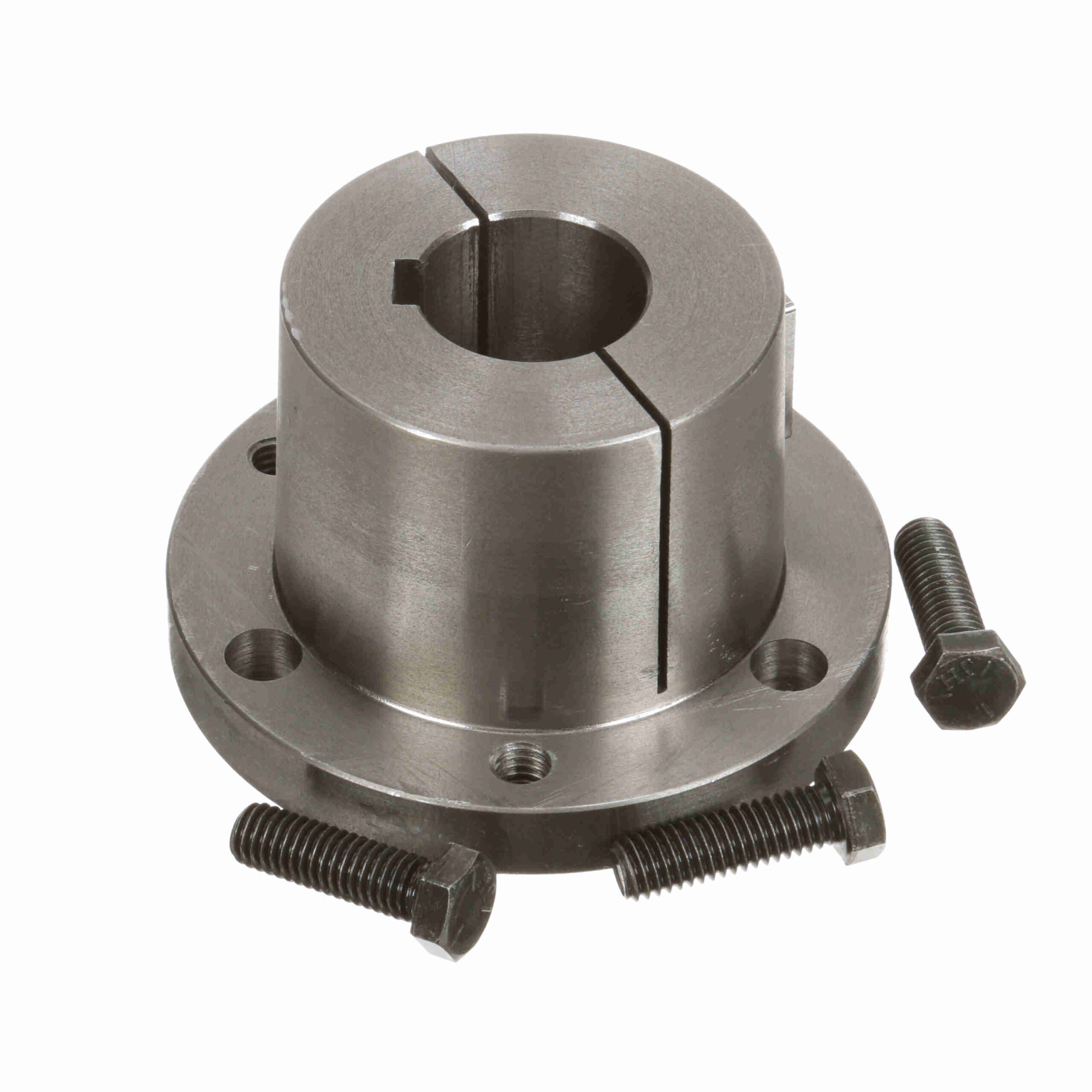

Browning Split Taper Bushing – Metric Bore Type – Q1 32 MM
$164.34
Out of stock
Out of stock
| Total Length (mm): | 63.5 mm | Keyseat (mm): | 10 x 4 mm |
|---|---|---|---|
| Length Through Bore (mm): | 63.5 mm | Bushing Type: | Q1 |
| Product Type: | Split Taper Bushing | Outside Diameter (mm): | 104.775 mm |
| Bore Size (mm): | 32 mm | Cap Screws (Size): | 3/8 x 1 1/4 |
| Compatible Bore Size [Max] (mm): | 32 mm | Total Length (in): | 2.5 in |
| Material: | Sintered Steel or Ductile Iron | Outside Diameter (in): | 4.125 in |
| Model Name: | Q1-Type1_Bushing_Master | Wrench Torque (in-lb): | 348 |
| Cap Screws (No.): | 3 | Bore Type: | Metric |
| Screw Length: | 1.25 | Flange Type: | Solid Flange |
| Barrel Diameter (Large End): | 2.875 | Bolt Circle Diameter (in): | 3.375 |
| Thread Size: | 3/8-16 | Mounting Type: | Conventional |
| Flange Thickness: | 0.5 | Barrel Diameter (Small End): | 2.7657 |
| Includes: | Cap Screws and Ext. Key | UPC: | 662289243310 |
| Weight: | 4.16 LB | Packaged Length: | 4.19 Inches |
| Packaged Width: | 4.19 Inches | Packaged Height: | 2.5 Inches |
| HTC: | 8483.90.8080 | Country of Origin: | Mexico |
