- Lifetime Warranty – If this bushing ever fails Browning will replace it Free of charge.
- Solid Flange, Double Split Barrel – Assures better concentricity to the shaft.
- Key to Key Drive – With keys on both the shaft and product to provide the strongest possible drive.
- 3/4″ per Foot Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
Q1 2 5/8

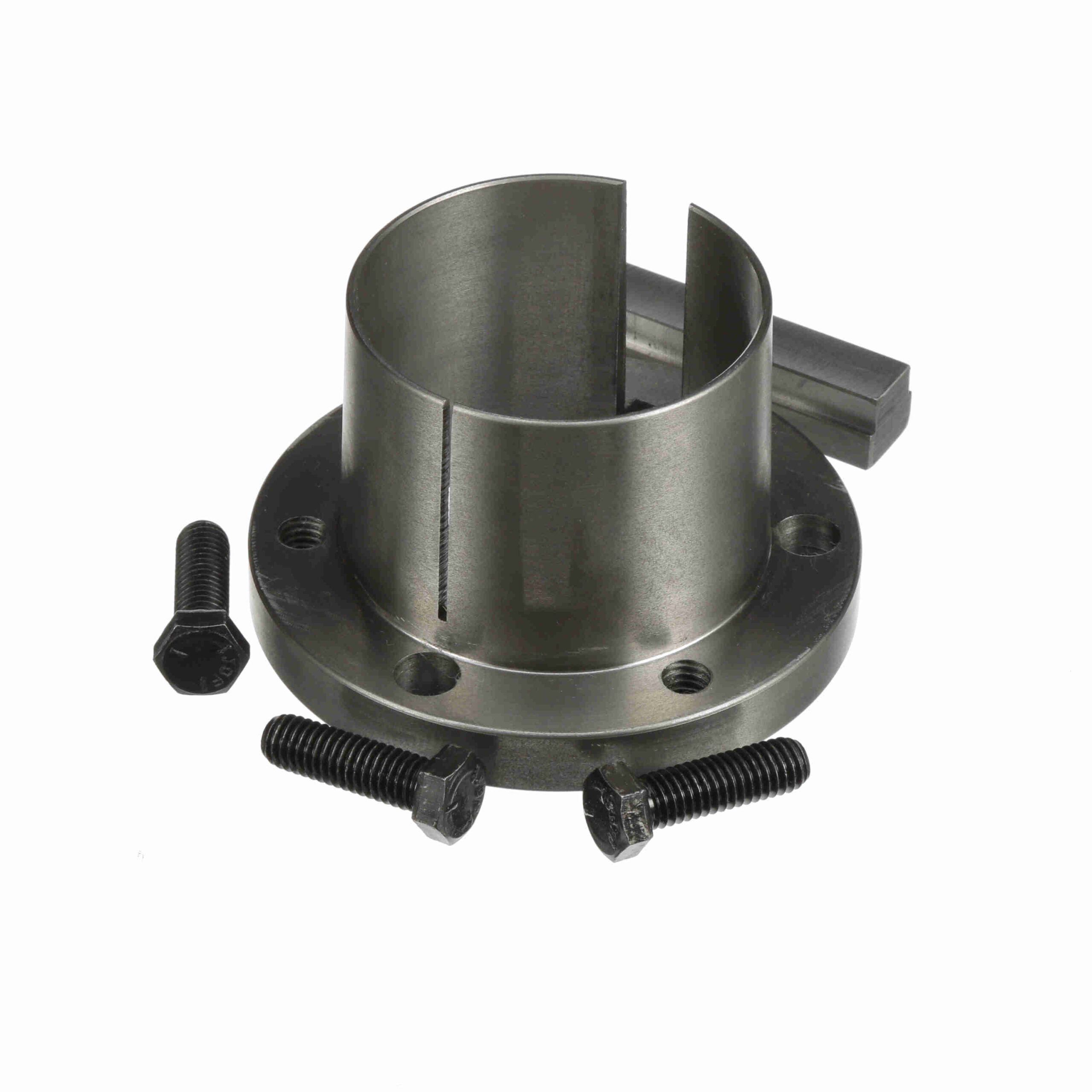

Browning Split Taper Bushing – Inch Bore Type – Q1 2 5/8
$79.57
Out of stock
Out of stock
| Model Name: | Q1-Type2_Bushing_Master | Outside Diameter (in): | 4.125 in |
|---|---|---|---|
| Product Type: | Split Taper Bushing | Keyseat: | 5/8 x 5/16 |
| Cap Screws (Size): | 3/8 x 1 1/4 | Bore Size (in): | 2.625 in |
| Wrench Torque (in-lb): | 348 | Compatible Bore Size [Max] (in): | 2.625 in |
| Material: | Sintered Steel or Ductile Iron | Total Length (in): | 2.5 in |
| Length Through Bore (in): | 2.5 in | Bushing Type: | Q1 |
| Cap Screws (No.): | 3 | Bore Type: | Inch |
| Bolt Circle Diameter (in): | 3.375 | Mounting Type: | Conventional |
| Thread Size: | 3/8-16 | Flange Thickness: | 0.5 |
| Screw Length: | 1.25 | Flange Type: | Solid Flange |
| Includes: | Cap Screws & Spcl Key | Barrel Diameter (Large End): | 2.875 |
| Barrel Diameter (Small End): | 2.7657 | UPC: | 662289199914 |
| Weight: | 1.79 LB | Packaged Length: | 4.3 Inches |
| Packaged Width: | 4.5 Inches | Packaged Height: | 2.7 Inches |
| HTC: | 8483.90.8080 | Country of Origin: | Mexico |
