- Lifetime Warranty – If this bushing ever fails Browning will replace it Free of charge.
- Solid Flange, Double Split Barrel – Assures better concentricity to the shaft.
- Key to Key Drive – With keys on both the shaft and product to provide the strongest possible drive.
- 3/4″ per Foot Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
Q1 15/16

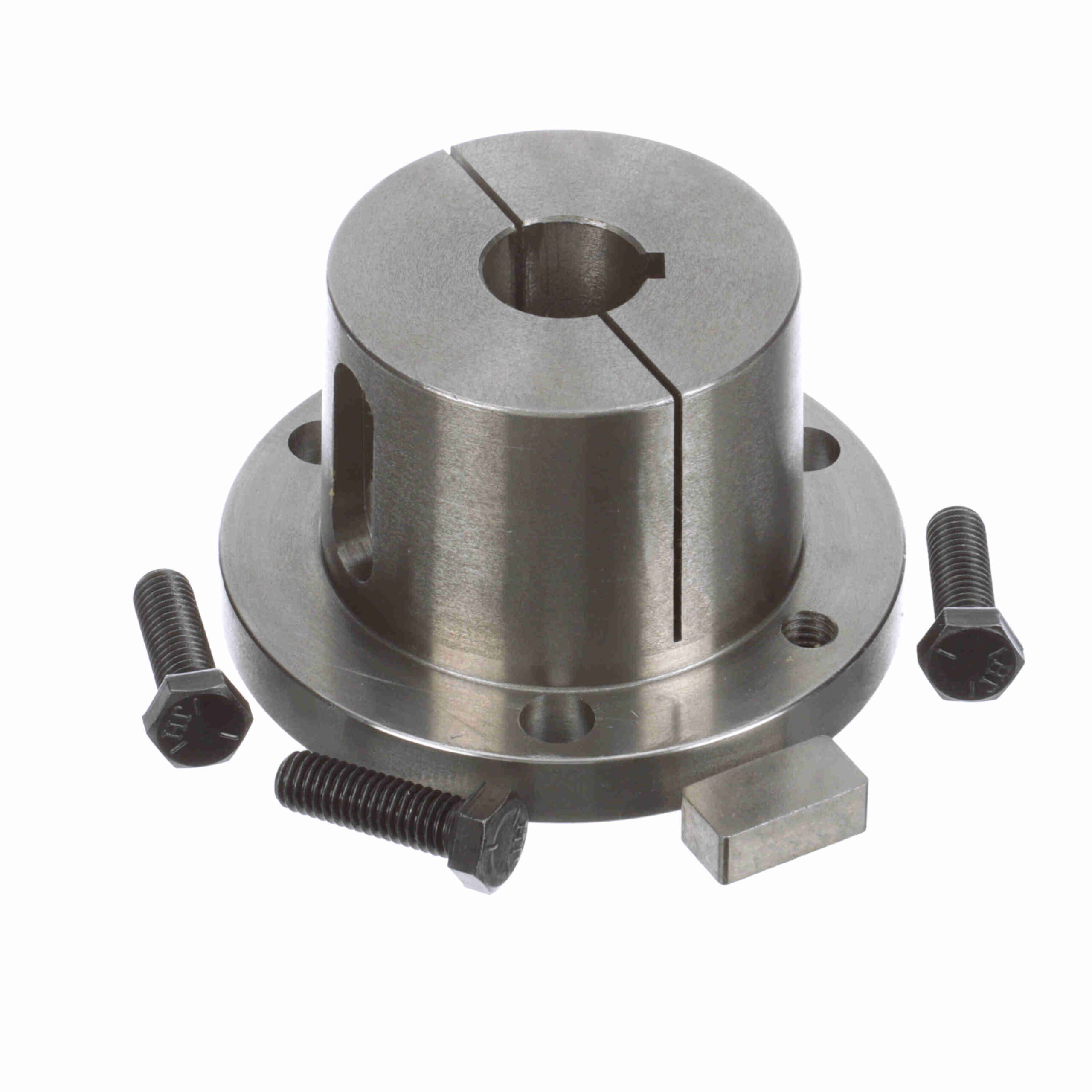

Browning Split Taper Bushing – Inch Bore Type – Q1 15/16
$114.42
Out of stock
Out of stock
| Model Name: | Q1-Type1_Bushing_Master | Total Length (in): | 2.5 in |
|---|---|---|---|
| Cap Screws (Size): | 3/8 x 1 1/4 | Length Through Bore (in): | 2.5 in |
| Outside Diameter (in): | 4.125 in | Material: | Sintered Steel or Ductile Iron |
| Wrench Torque (in-lb): | 348 | Bushing Type: | Q1 |
| Product Type: | Split Taper Bushing | Compatible Bore Size [Max] (in): | 0.9375 in |
| Keyseat: | 1/4 x 1/8 | Bore Size (in): | 0.9375 in |
| Bore Type: | Inch | Cap Screws (No.): | 3 |
| UPC: | 662289279678 | Weight: | 4.98 LB |
| Packaged Length: | 4.6 Inches | Packaged Width: | 4.3 Inches |
| Packaged Height: | 2.7 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
