- Lifetime Warranty – If this bushing ever fails Browning will replace it Free of charge.
- Solid Flange, Double Split Barrel – Assures better concentricity to the shaft.
- Key to Key Drive – With keys on both the shaft and product to provide the strongest possible drive.
- 3/4″ per Foot Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
Q1 1 5/16

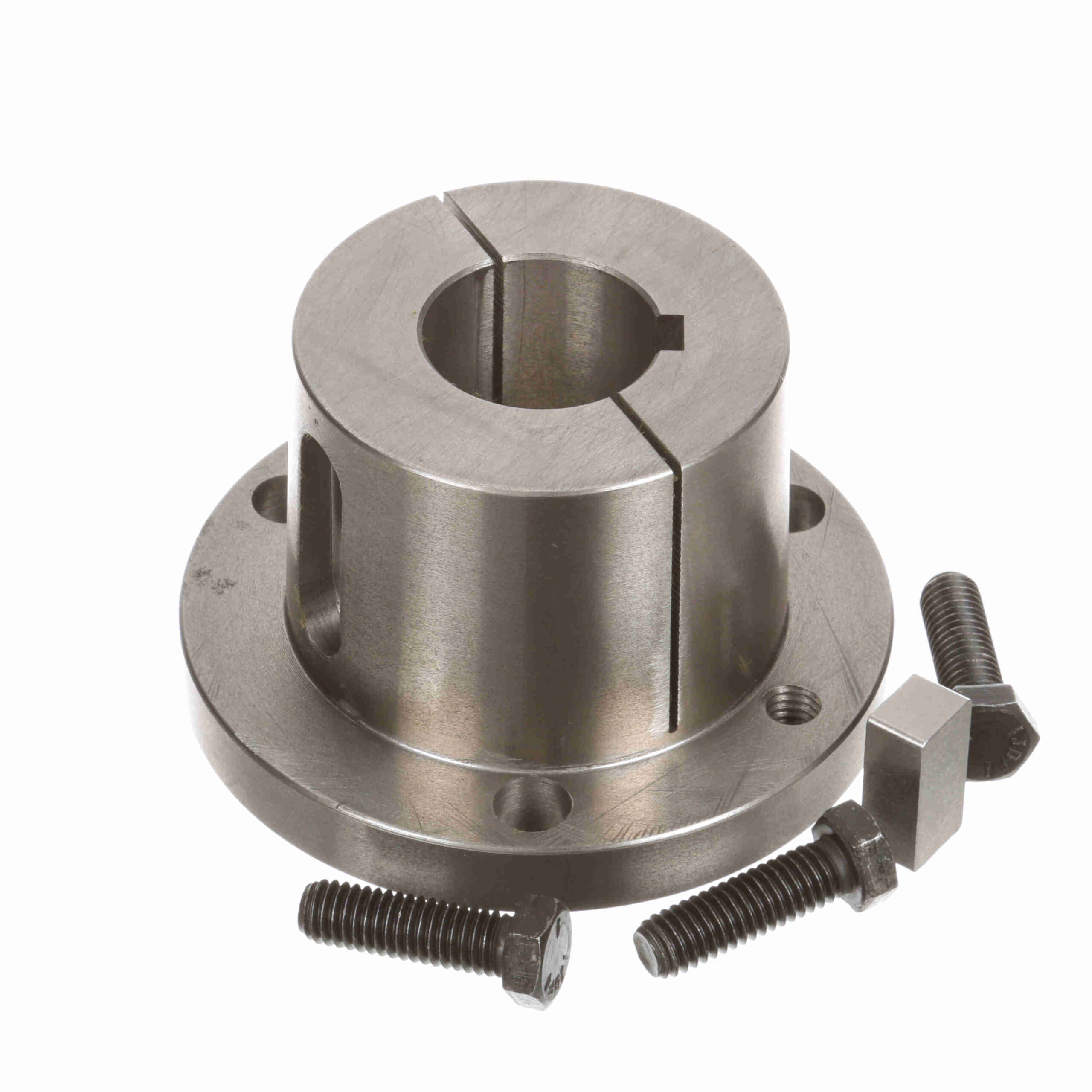

Browning Split Taper Bushing – Inch Bore Type – Q1 1 5/16
$114.42
Out of stock
Out of stock
| Bushing Type: | Q1 | Length Through Bore (in): | 2.5 in |
|---|---|---|---|
| Total Length (in): | 2.5 in | Product Type: | Split Taper Bushing |
| Material: | Sintered Steel or Ductile Iron | Bore Size (in): | 1.3125 in |
| Keyseat: | 5/16 x 5/32 | Model Name: | Q1-Type1_Bushing_Master |
| Cap Screws (Size): | 3/8 x 1 1/4 | Outside Diameter (in): | 4.125 in |
| Compatible Bore Size [Max] (in): | 1.3125 in | Wrench Torque (in-lb): | 348 |
| Bore Type: | Inch | Cap Screws (No.): | 3 |
| Mounting Type: | Conventional | Flange Thickness: | 0.5 |
| Screw Length: | 1.25 | Barrel Diameter (Small End): | 2.7657 |
| Bolt Circle Diameter (in): | 3.375 | Thread Size: | 3/8-16 |
| Includes: | Cap Screws and Ext. Key | Barrel Diameter (Large End): | 2.875 |
| Flange Type: | Solid Flange | UPC: | 662289269662 |
| Weight: | 4.55 LB | Packaged Length: | 4.6 Inches |
| Packaged Width: | 4.3 Inches | Packaged Height: | 2.7 Inches |
| HTC: | 8483.90.8080 | Country of Origin: | Mexico |
