- Lifetime Warranty – If this bushing ever fails Browning will replace it Free of charge.
- Solid Flange, Double Split Barrel – Assures better concentricity to the shaft.
- Key to Key Drive – With keys on both the shaft and product to provide the strongest possible drive.
- 3/4″ per Foot Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
Q1 1 11/16M

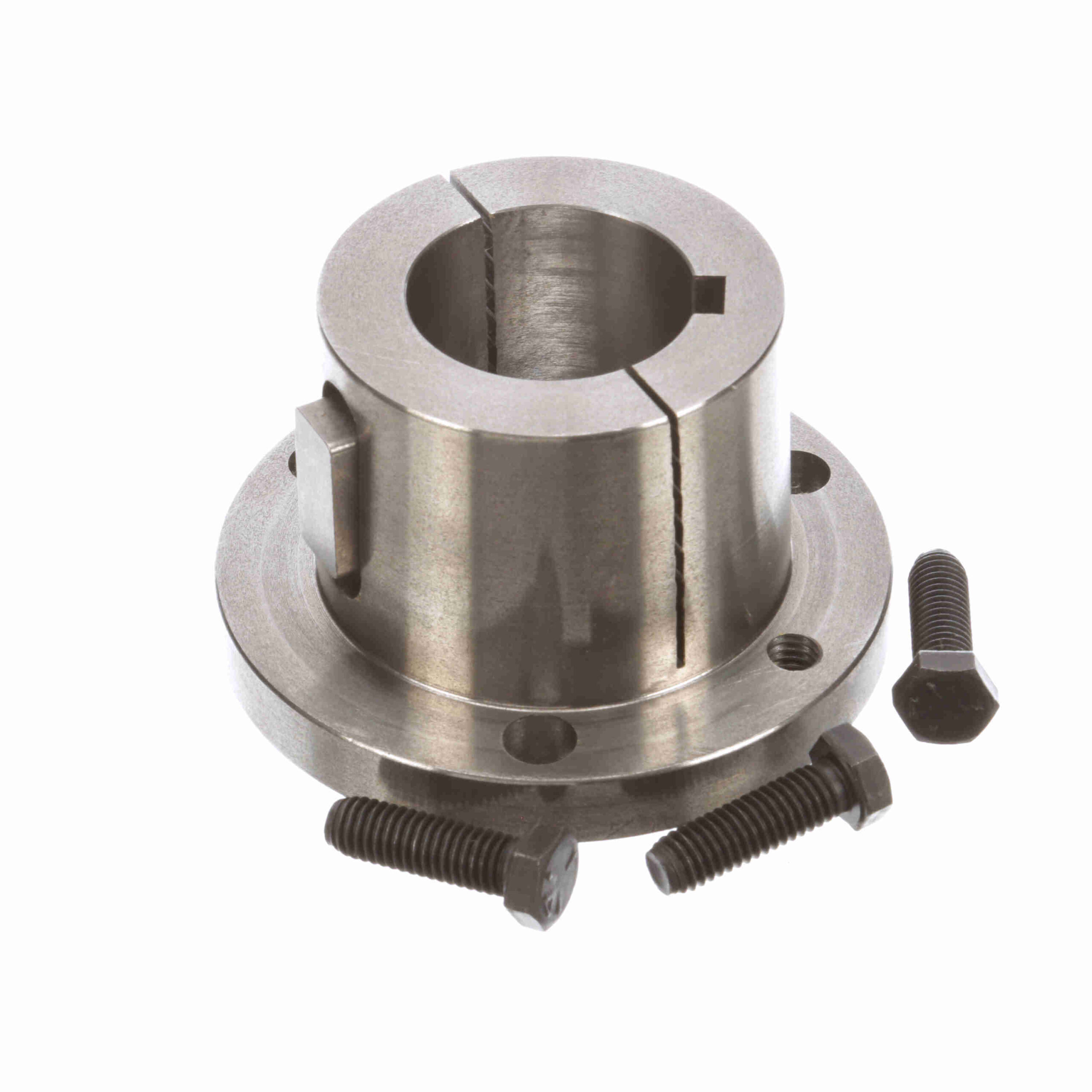

Browning Split Taper Bushing – Inch Bore Type – Q1 1 11/16M
$205.37
Out of stock
Out of stock
| Length Through Bore (in): | 2.5 in | Bore Size (in): | 1.6875 in |
|---|---|---|---|
| Bushing Type: | Q1 | Product Type: | Split Taper Bushing |
| Model Name: | Q1-Type1_Bushing_Master | Compatible Bore Size [Max] (in): | 1.6875 in |
| Wrench Torque (in-lb): | 348 | Outside Diameter (in): | 4.125 in |
| Keyseat: | 3/8 x 3/16 | Cap Screws (Size): | 3/8 x 1 1/4 |
| Total Length (in): | 2.5 in | Material: | Sintered Steel or Ductile Iron |
| Bore Type: | Inch | Cap Screws (No.): | 3 |
| UPC: | 662289862023 | Weight: | 3.56 LB |
| Packaged Length: | 4.3 Inches | Packaged Width: | 4.3 Inches |
| Packaged Height: | 2.6 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
