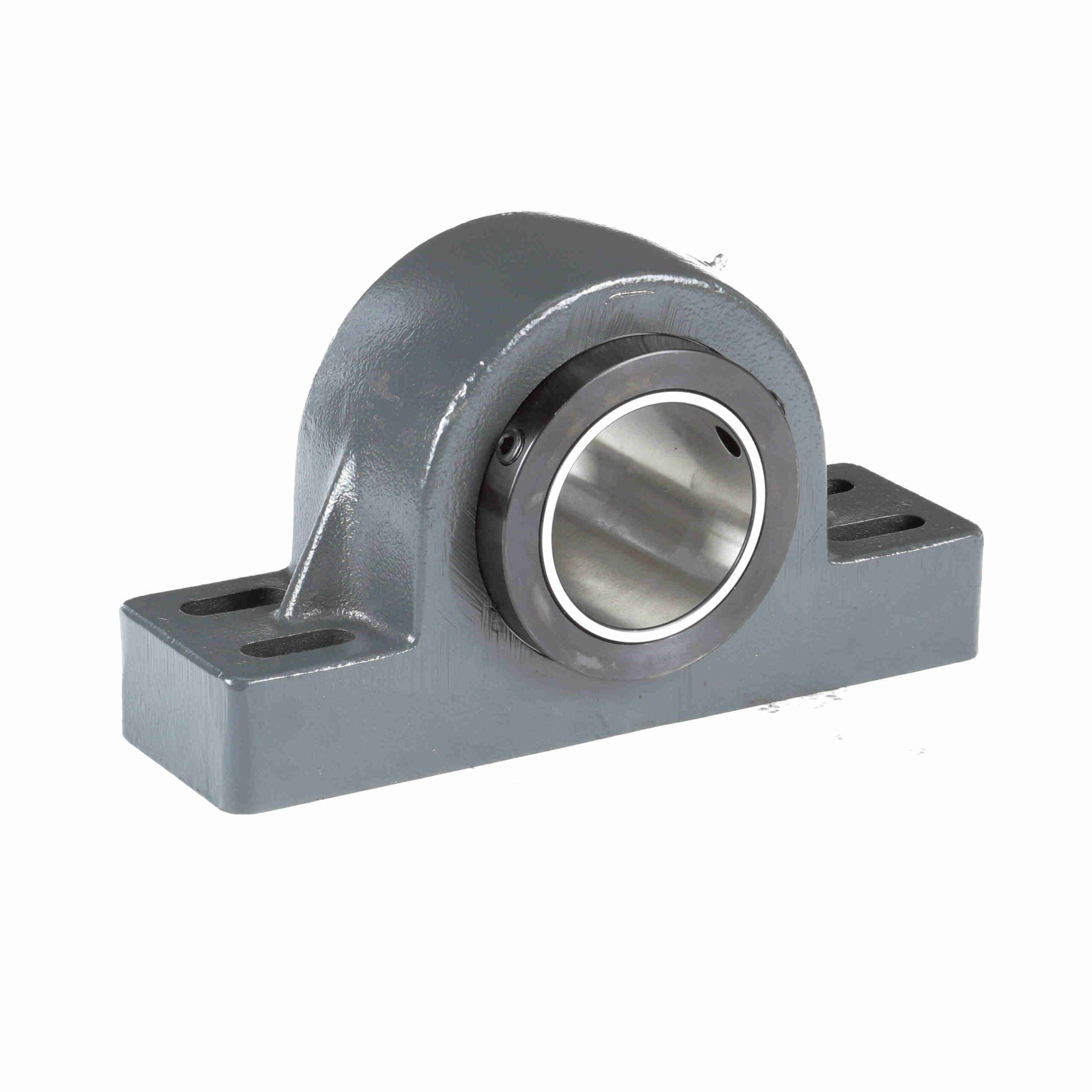

PBE920FX4

Heavy duty tapered roller bearings with steel cage for radial, thrust and combined loading
Single lip contact face-riding seals rotate with the shaft
Double-collar interlock with 120° spacing setscrew lock, diamond faceted setscrews
Powder coat epoxy 4-bolt cast iron housing

Maximum Operating Temperature:	200 °F	Rolling Element:	Tapered Roller
Seal Type:	Single Lip Contact Seal	Insert Material:	52100 Bearing Steel
Inner-Race Heat-Treat Method:	Case Carburized Inner Ring	Expansion:	No
Measure Units:	Inch	Housing Material:	Cast Iron
Housing Type:	Pillow Block, Four Bolt	Housing Base:	Semi-Solid
Relubricatable:	Yes	Speed (Max):	1000
Locking Type:	Double Collar Mount	Bore Shape:	Straight
Internal Clearance:	Standard	Lubrication:	Lithium; EP; NLGI#2
Duty Series:	Standard	Misalignment:	None
Radial Dynamic Load Capacity (lb):	20, 980	Housing Construction:	One Piece
Outer Ring Land Profile:	Standard	Replaceable Insert:	No
Retainer Material:	Steel	End Cap:	No
Housing Color:	Gray	Platform:	Type E
Bearing Insert Coating:	Uncoated	Misalignment Type:	None
Series:	PBE920	Grease Fitting Thread Size:	1/8 NPT
UPC:	662289466818	Weight:	69.16 LB
Packaged Length:	15.5 Inches	Packaged Width:	9 Inches
Packaged Height:	6.25 Inches	HTC:	8483.20.8080
Country of Origin:	United States of America
