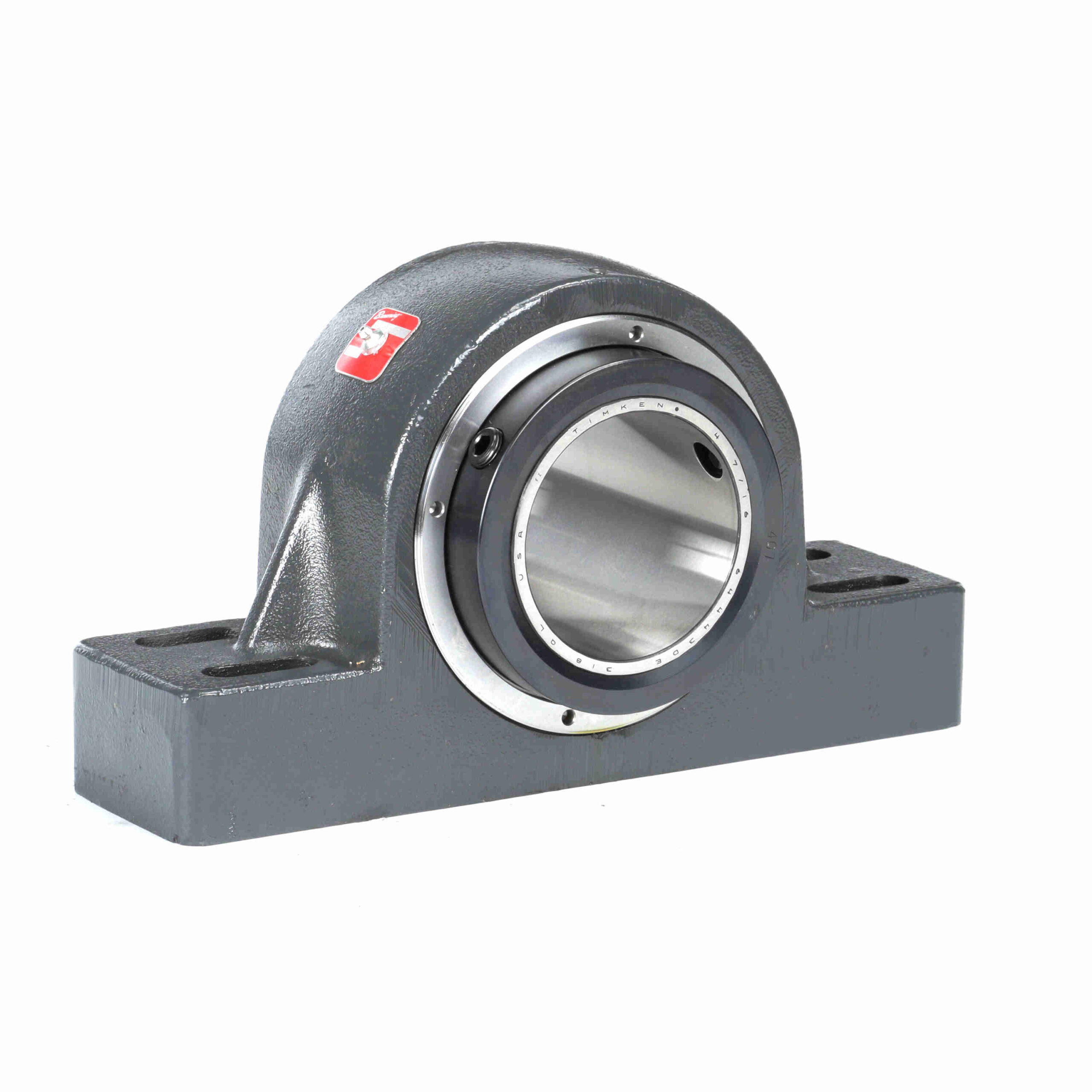

PBE920FX 4 7/16

Heavy duty tapered roller bearings with steel cage for radial, thrust and combined loading
Single lip contact face-riding seals rotate with the shaft
Double-collar interlock with 120? spacing setscrew lock, diamond faceted setscrews
Powder coat epoxy 4-bolt cast iron housing

Measure Units:	Inch	Seal Type:	Single Lip Contact Seal
Housing Material:	Cast Iron	Housing Base:	Semi-Solid
Insert Material:	52100 Bearing Steel	Housing Type:	Pillow Block; Four Bolt
Maximum Operating Temperature:	200 °F	Expansion:	No
Inner-Race Heat-Treat Method:	Case Carburized Inner Ring	Rolling Element:	Tapered Roller
Internal Clearance:	Standard	Duty Series:	Standard
Radial Dynamic Load Capacity (lb):	25, 750	Relubricatable:	Yes
Speed (Max):	750	Lubrication:	Lithium; EP; NLGI#2
Locking Type:	Double Collar Mount	Misalignment:	None
Bore Shape:	Straight	Housing Construction:	One Piece
Outer Ring Land Profile:	Standard	Retainer Material:	Steel
Platform:	Type E	Housing Color:	Gray
End Cap:	No	Replaceable Insert:	No
Bearing Insert Coating:	Uncoated	Misalignment Type:	None
Series:	PBE920	Grease Fitting Thread Size:	1/8 NPT
UPC:	662289526871	Weight:	84.80 LB
Packaged Length:	16.75 Inches	Packaged Width:	10.5 Inches
Packaged Height:	7.63 Inches	HTC:	8483.20.8080
Country of Origin:	United States of America
