- Lifetime Warranty – If this bushing ever fails Browning will replace it Free of charge.
- Solid Flange, Double Split Barrel – Assures better concentricity to the shaft.
- Key to Key Drive – With keys on both the shaft and product to provide the strongest possible drive.
- 3/4″ per Foot Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
P2 13/16

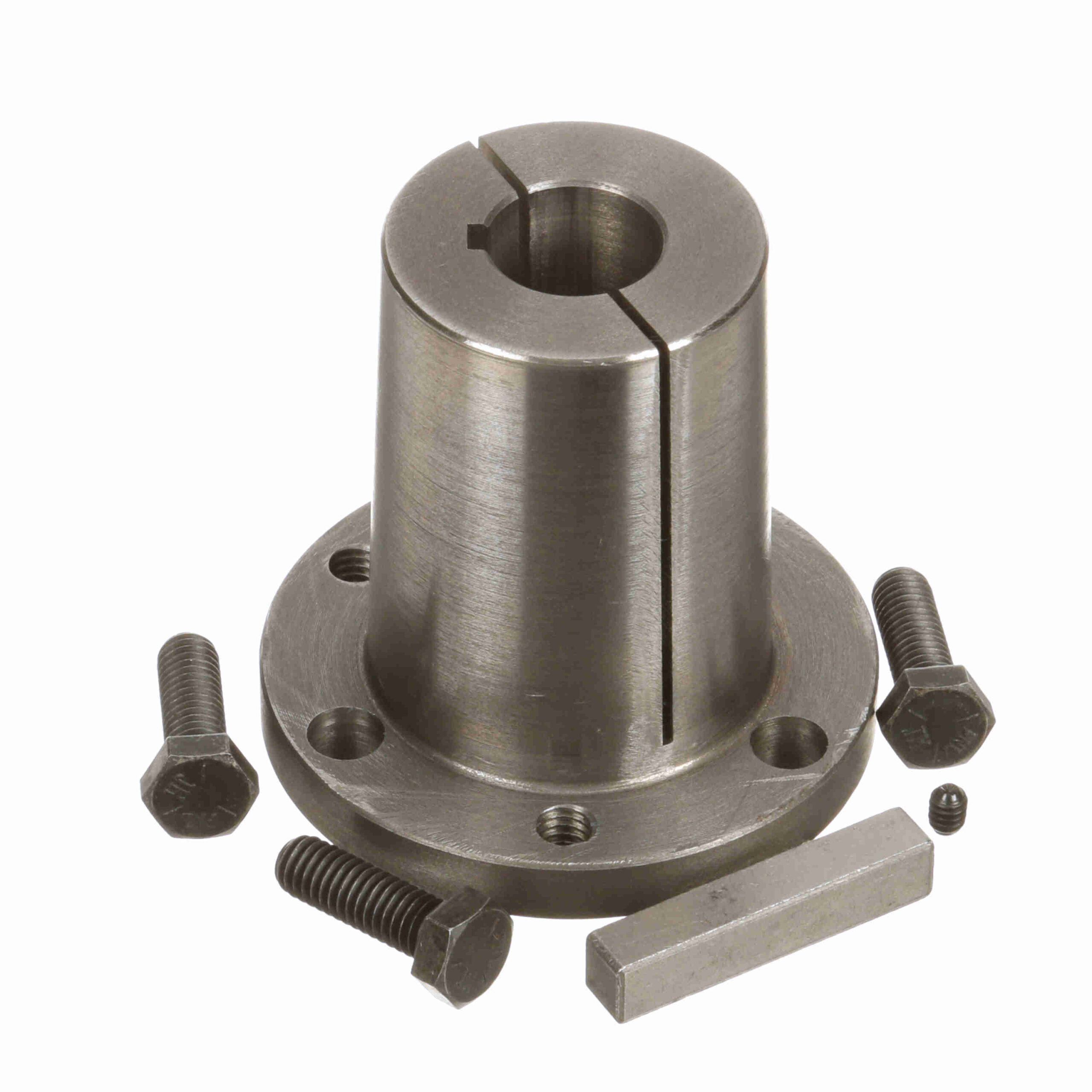

Browning Split Taper Bushing – Inch Bore Type – P2 13/16
$88.99
Out of stock
Out of stock
| Cap Screws (Size): | 5/16 x 1 | Wrench Torque (in-lb): | 192 |
|---|---|---|---|
| Total Length (in): | 2.9375 in | Outside Diameter (in): | 3 in |
| Bore Size (in): | 0.8125 in | Compatible Bore Size [Max] (in): | 0.8125 in |
| Length Through Bore (in): | 2.9375 in | Material: | Sintered Steel or Ductile Iron |
| Bushing Type: | P2 | Keyseat: | 3/16 x 3/32 |
| Product Type: | Split Taper Bushing | Model Name: | P2-P3_Type1_BushingMaster |
| Cap Screws (No.): | 3 | Bore Type: | Inch |
| Flange Type: | Solid Flange | Barrel Diameter (Small End): | 1.793 |
| Mounting Type: | Conventional | Barrel Diameter (Large End): | 1.9375 |
| Thread Size: | 5/16-18 | Bolt Circle Diameter (in): | 2.4375 |
| Includes: | Cap Screws and Ext. Key | Screw Length: | 1 |
| Flange Thickness: | 0.375 | UPC: | 662289299393 |
| Weight: | 2.16 LB | Packaged Length: | 3.1 Inches |
| Packaged Width: | 3.2 Inches | Packaged Height: | 1.9 Inches |
| HTC: | 8483.90.8080 | Country of Origin: | Mexico |
