- Lifetime Warranty – If this bushing ever fails Browning will replace it Free of charge.
- Solid Flange, Double Split Barrel – Assures better concentricity to the shaft.
- Key to Key Drive – With keys on both the shaft and product to provide the strongest possible drive.
- 3/4″ per Foot Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
P1 30 MM

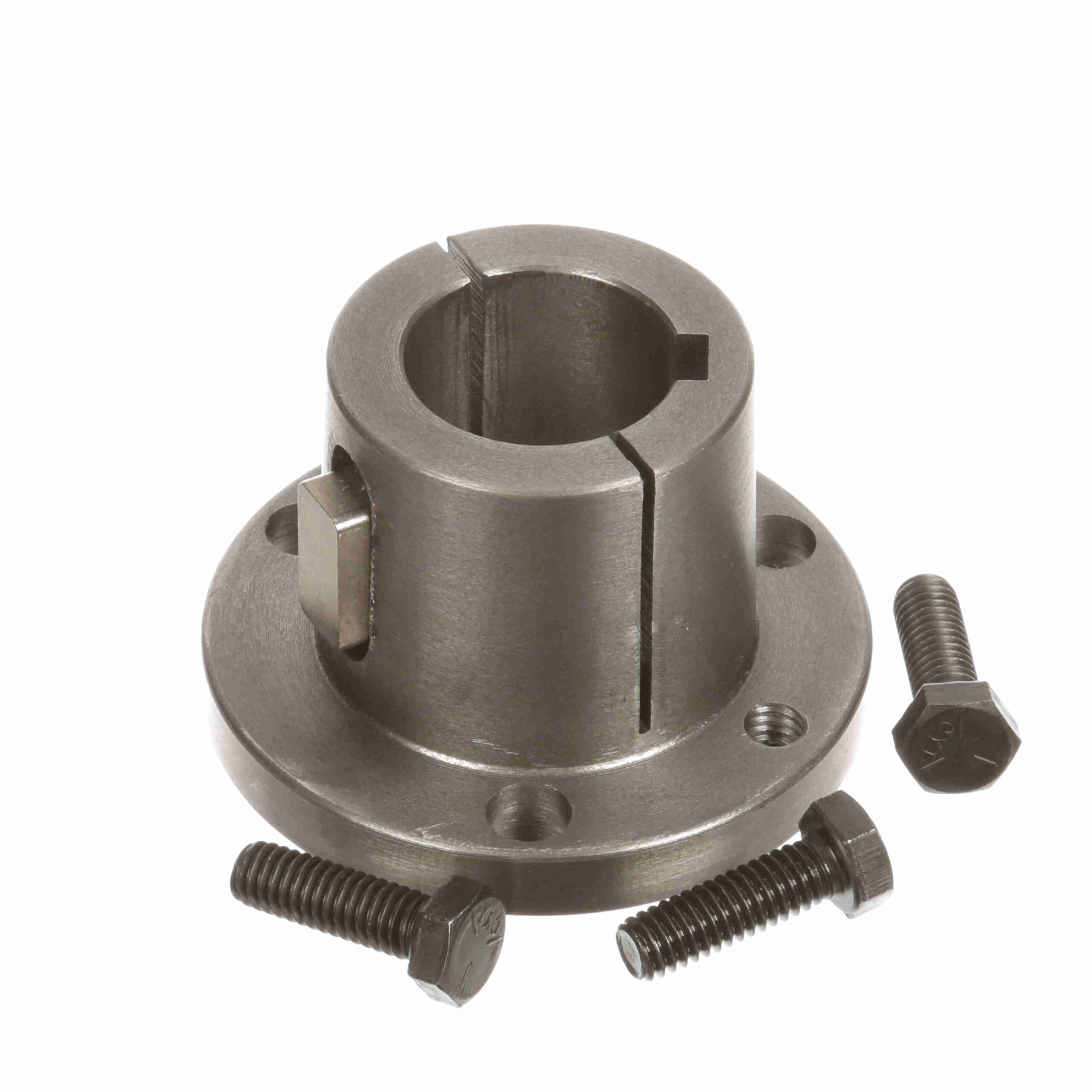

Browning Split Taper Bushing – Metric Bore Type – P1 30 MM
Out of stock
| Model Name: | P1_Bushing-Type1_Master | Bushing Type: | P1 |
|---|---|---|---|
| Total Length (in): | 1.9375 in | Material: | Sintered Steel or Ductile Iron |
| Keyseat (mm): | 8 x 3.5 mm | Wrench Torque (in-lb): | 192 |
| Compatible Bore Size [Max] (mm): | 30 mm | Product Type: | Split Taper Bushing |
| Bore Size (mm): | 30 mm | Outside Diameter (in): | 3 in |
| Length Through Bore (mm): | 49.2125 mm | Outside Diameter (mm): | 76.2 mm |
| Cap Screws (Size): | 5/16 x 1 | Total Length (mm): | 49.2125 mm |
| Cap Screws (No.): | 3 | Bore Type: | Metric |
| Bolt Circle Diameter (in): | 2.4375 | Includes: | Cap Screws and Ext. Key |
| Barrel Diameter (Small End): | 1.8555 | Screw Length: | 1 |
| Barrel Diameter (Large End): | 1.9375 | Flange Thickness: | 0.375 |
| Mounting Type: | Conventional | Thread Size: | 5/16-18 |
| Flange Type: | Solid Flange | UPC: | 662289223244 |
| Weight: | 1.32 LB | Packaged Length: | 3.1 Inches |
| Packaged Width: | 3.1 Inches | Packaged Height: | 2.1 Inches |
| HTC: | 8483.90.8080 | Country of Origin: | Mexico |
