- Lifetime Warranty – If this bushing ever fails Browning will replace it Free of charge.
- Solid Flange, Double Split Barrel – Assures better concentricity to the shaft.
- Key to Key Drive – With keys on both the shaft and product to provide the strongest possible drive.
- 3/4″ per Foot Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
P1 19 MM

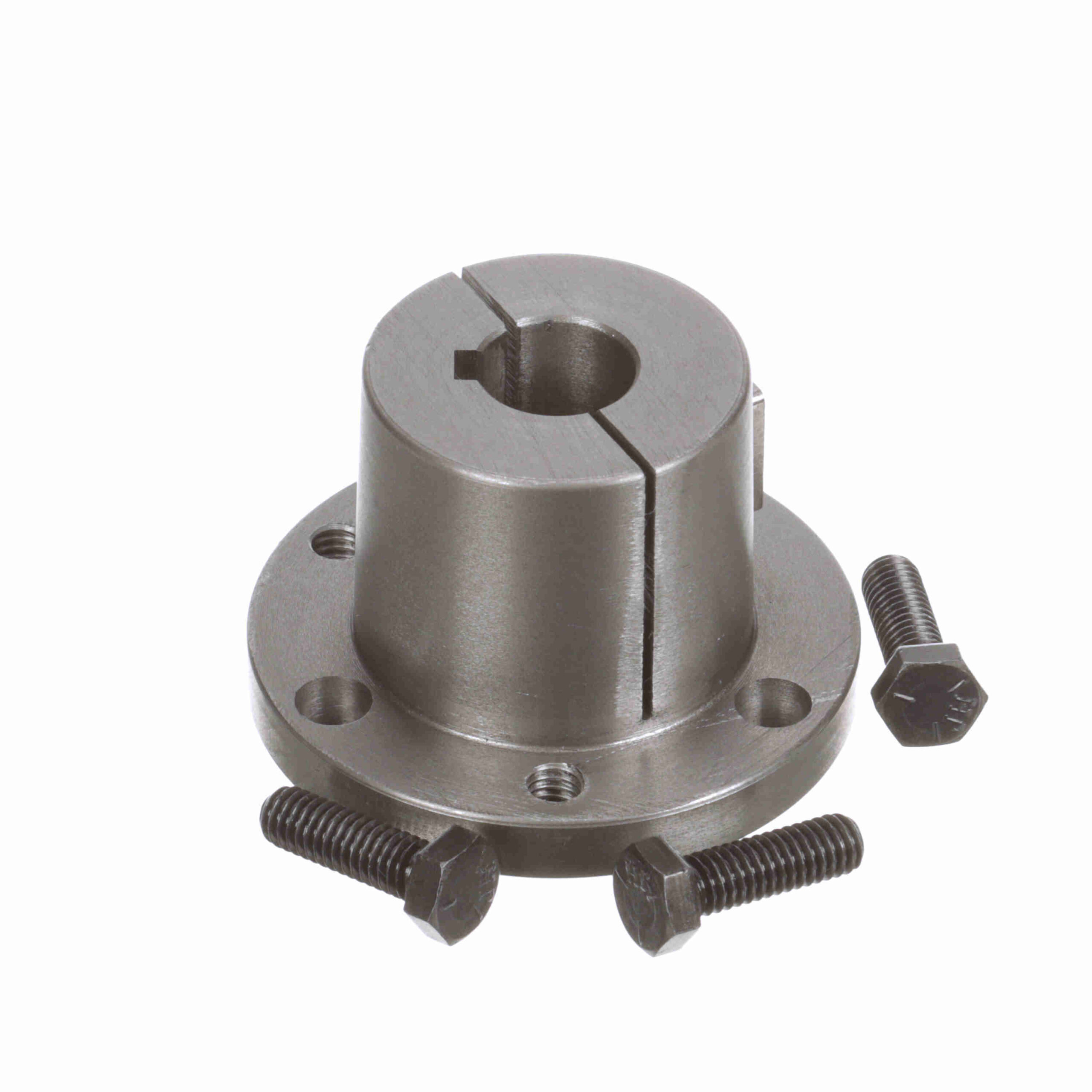

Browning Split Taper Bushing – Metric Bore Type – P1 19 MM
$83.62
Out of stock
Out of stock
| Product Type: | Split Taper Bushing | Material: | Sintered Steel or Ductile Iron |
|---|---|---|---|
| Keyseat (mm): | 6 x 3 mm | Compatible Bore Size [Max] (mm): | 19 mm |
| Outside Diameter (mm): | 76.2 mm | Wrench Torque (in-lb): | 192 |
| Bore Size (mm): | 19 mm | Cap Screws (Size): | 5/16 x 1 |
| Bushing Type: | P1 | Total Length (in): | 1.9375 in |
| Outside Diameter (in): | 3 in | Length Through Bore (mm): | 49.2125 mm |
| Total Length (mm): | 49.2125 mm | Model Name: | P1_Bushing-Type1_Master |
| Cap Screws (No.): | 3 | Bore Type: | Metric |
| Includes: | Cap Screws and Ext. Key | Screw Length: | 1 |
| Barrel Diameter (Large End): | 1.9375 | Thread Size: | 5/16-18 |
| Flange Type: | Solid Flange | Flange Thickness: | 0.375 |
| Mounting Type: | Conventional | Barrel Diameter (Small End): | 1.8555 |
| Bolt Circle Diameter (in): | 2.4375 | UPC: | 662289293131 |
| Weight: | 1.62 LB | Packaged Length: | 3.06 Inches |
| Packaged Width: | 1.94 Inches | Packaged Height: | 3.06 Inches |
| HTC: | 8483.90.8080 | Country of Origin: | Mexico |
