- Reverse mounting ability – This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face.
- 3/4″/ft. Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
P 3

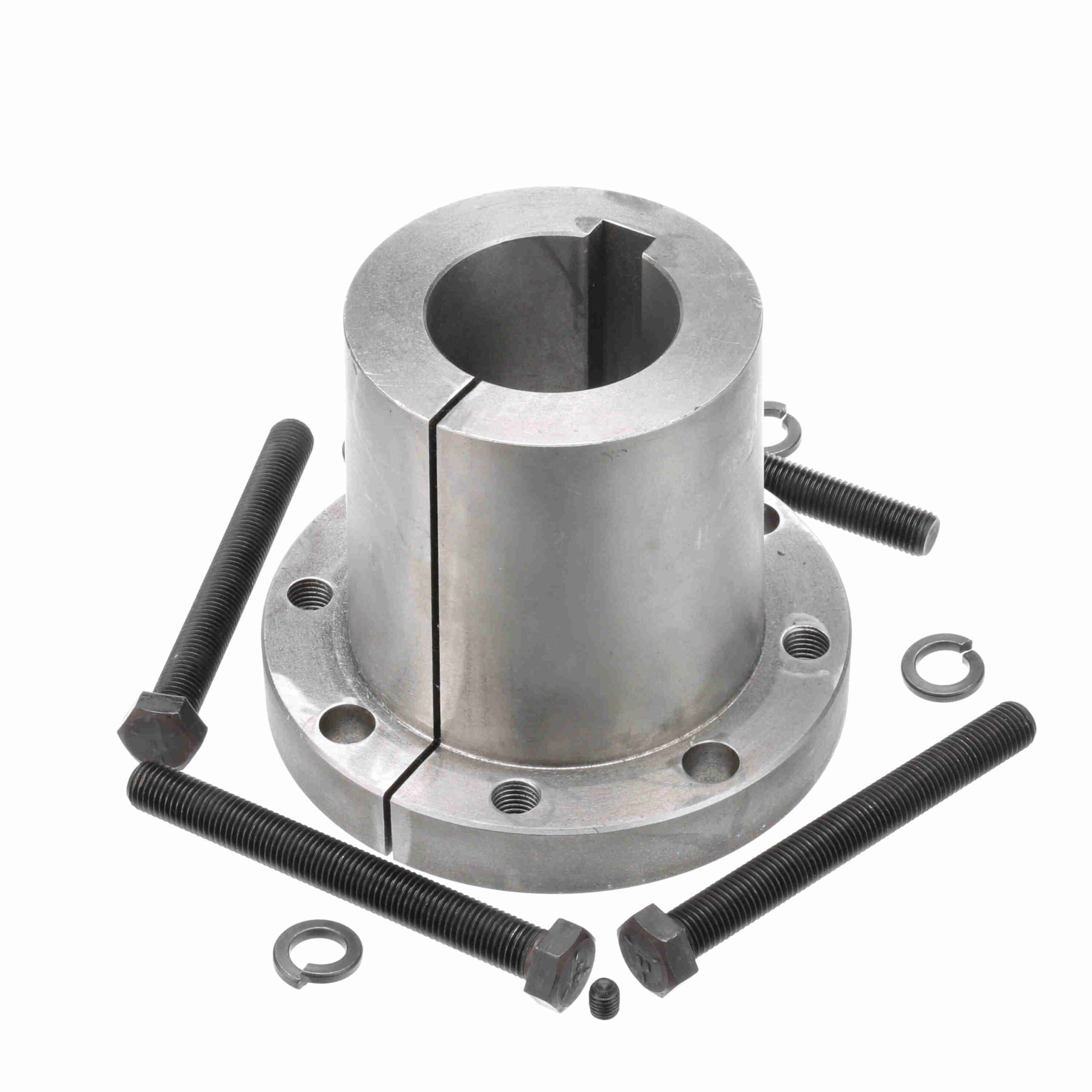

Browning Q-D Bushing – Inch Bore Type – P 3
$4,154.07
Out of stock
Out of stock
| Wrench Torque (ft.-lbs.): | 450 | Bushing Type: | P |
|---|---|---|---|
| Bore Type: | Inch | Cap Screws (Size): | 1-8 x 9 1/2 |
| Mounting Type: | Conventional | Model Name: | QD-P_Bushing_Master |
| Total Length (in): | 9.39 in | Cap Screws (Bolt Circle): | 10 |
| Torque Capacity (in-lb): | 250, 000 | Cap Screws (No.): | 4 |
| Compatible Bore Size [Max] (in): | 3 in | Outside Diameter (in): | 11.75 in |
| Keyway: | 3/4 x 3/8 | Product Type: | Q-D Bushing |
| Length Through Bore (in): | 9.39 in | Bore Size (in): | 3 in |
| Flange Thickness: | 1.75 in | Barrel Diameter: | 8.25 in |
| Barrel Length: | 7.64 in | Material: | Gray Iron - G3045 |
| UPC: | 662289351886 | Weight: | 132.61 LB |
| Packaged Length: | 18.5 Inches | Packaged Width: | 12 Inches |
| Packaged Height: | 11.5 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
