- Through hardened bearing grade steel
- Surfaces precision ground to RBEC 1 tolerances
- Crowned rollers
NUP 209 EM

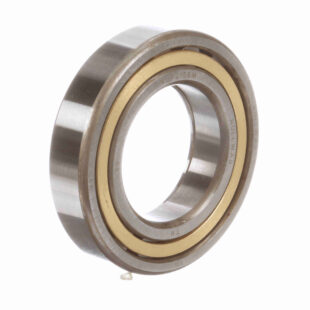

Rollway Radial Cylindrical Roller Bearing – Caged Roller – Straight Bore – Unsealed – NUP 209 EM
$522.05
Out of stock
Out of stock
| Version: | EM: Extra capacity design, Machined brass retainer | Inner Race Configuration: | Separable One Direction |
|---|---|---|---|
| Outer Race Configuration: | Non-Separable | Additional Information: | Can be used to a certain extent to take combined loads |
| Cage Material: | Brass | Bore Type: | Straight |
| Seal Type: | Unsealed | Static Load Rating (kN): | 66.4 kN |
| Radial Clearance: | C0 | Misalignment: | No |
| Number of Rows: | 1 | Material: | High Chromium Bearing Steel |
| Rolling Element: | Cylindrical Roller | Speed [Max] Oil (RPM): | 6, 300 rpm |
| Duplexing: | No | Platform: | Cylindrical Radial |
| Static Load Rating (lb): | 14, 927 lb | Speed [Max] Grease (RPM): | 8, 000 rpm |
| Full Complement/Caged: | Caged | Sealed: | None |
| Dynamic Load Rating (lb): | 14, 163 lb | Profile: | Complete with Outer and Inner Race |
| Snap Ring: | No | Separable: | Two piece Inner ring - Each piece separable one side |
| Retainer: | Yes | UPC: | 637410080430 |
| Weight: | 0.99 LB | Packaged Length: | 3.35 Inches |
| Packaged Width: | 0.75 Inches | Packaged Height: | 3.35 Inches |
| Country of Origin: | China |
