- Through hardened bearing grade steel
- Surfaces precision ground to RBEC 1 tolerances
- Crowned rollers
NU 2322 EM C3

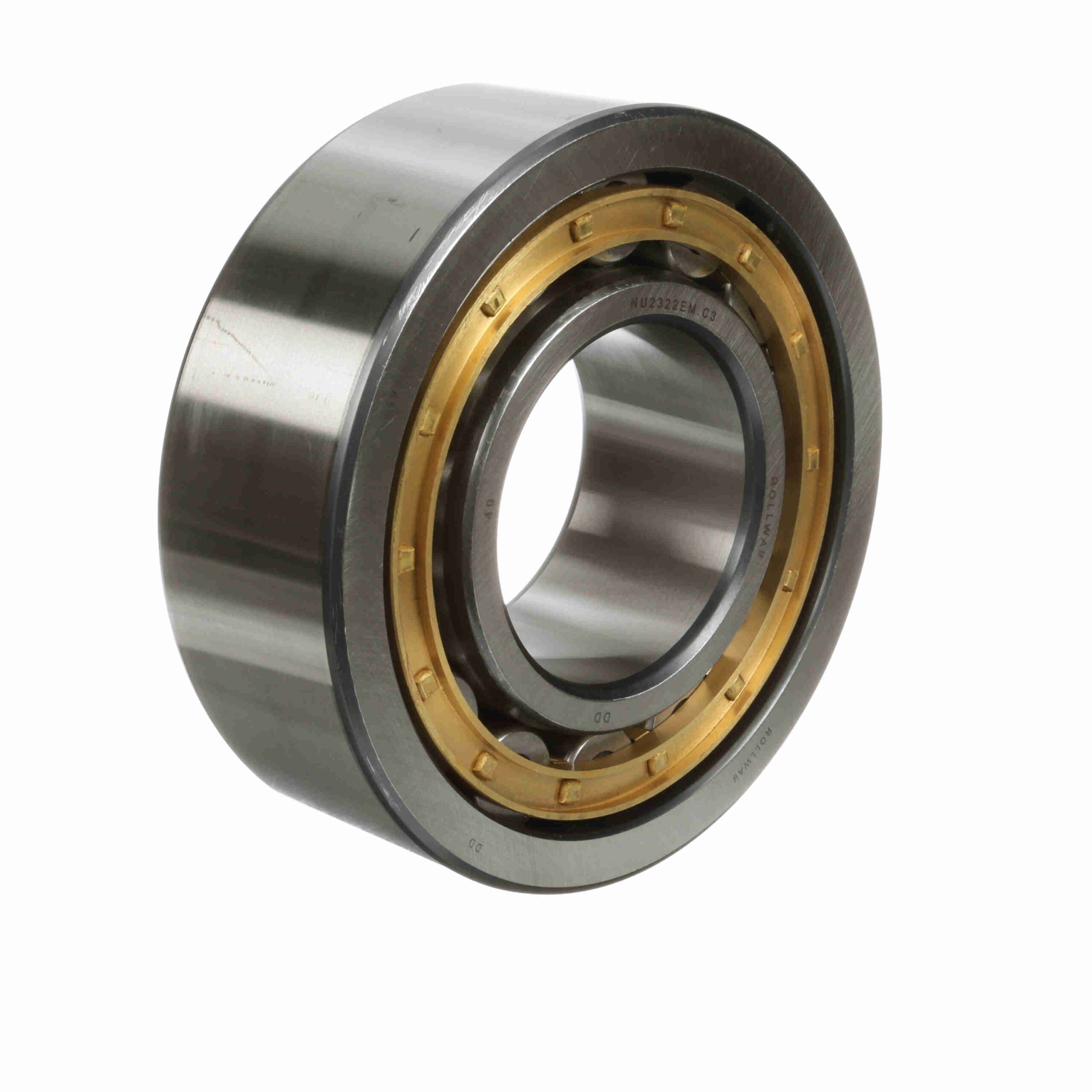

Rollway Radial Cylindrical Roller Bearing – Caged Roller – Straight Bore – Unsealed – NU 2322 EM C3
$5,681.90
Out of stock
Out of stock
| Version: | EM: Extra capacity design, Machined brass retainer | Additional Information: | Suitable for radial loads only |
|---|---|---|---|
| Outer Race Configuration: | Non-Separable | Inner Race Configuration: | Separable Both Directions |
| Static Load Rating (kN): | 868 kN | Seal Type: | Unsealed |
| Bore Type: | Straight | Cage Material: | Brass |
| Radial Clearance: | C3 | Rolling Element: | Cylindrical Roller |
| Material: | High Chromium Bearing Steel | Number of Rows: | 1 |
| Misalignment: | No | Static Load Rating (lb): | 195, 134 lb |
| Duplexing: | No | Dynamic Load Rating (lb): | 149, 948 lb |
| Full Complement/Caged: | Caged | Sealed: | None |
| Platform: | Cylindrical Radial | Speed [Max] Oil (RPM): | 2, 800 rpm |
| Speed [Max] Grease (RPM): | 2, 200 rpm | Separable: | Inner ring - both sides |
| Snap Ring: | No | Retainer: | Yes |
| Profile: | Complete with Outer and Inner Race | UPC: | 637410087941 |
| Weight: | 39.98 LB | Packaged Length: | 10 Inches |
| Packaged Width: | 10.6 Inches | Packaged Height: | 3.9 Inches |
| Country of Origin: | China |
