- Through hardened bearing grade steel
- Surfaces precision ground to RBEC 1 tolerances
- Crowned rollers
NU 2313 EM C3

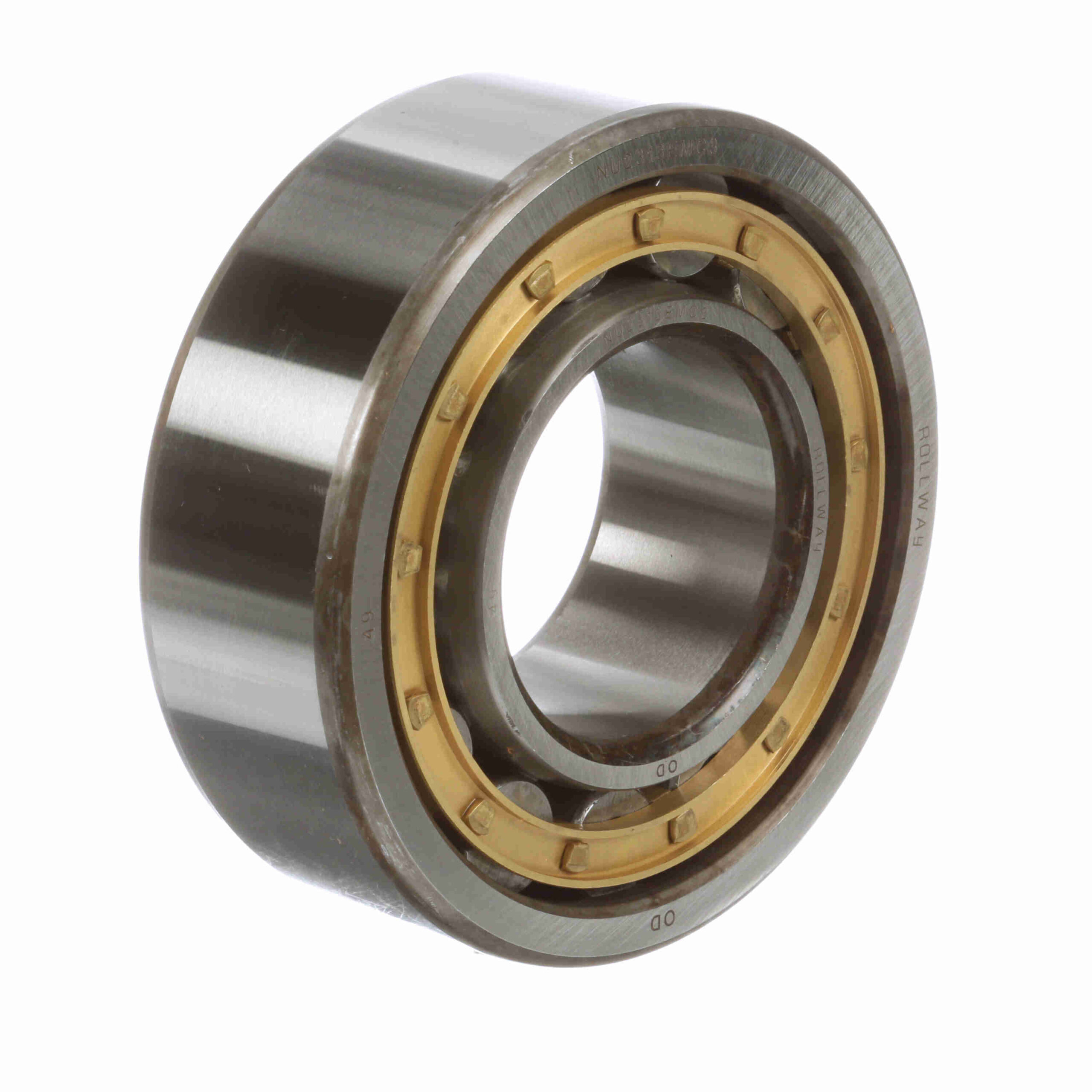

Rollway Radial Cylindrical Roller Bearing – Caged Roller – Straight Bore – Unsealed – NU 2313 EM C3
$754.99
Availability: 2 in stock
Availability: 2 in stock
| Outer Race Configuration: | Non-Separable | Version: | EM: Extra capacity design - Machined brass retainer |
|---|---|---|---|
| Inner Race Configuration: | Separable Both Directions | Additional Information: | Suitable for radial loads only |
| Bore Type: | Straight | Static Load Rating (kN): | 285 kN |
| Seal Type: | Unsealed | Cage Material: | Brass |
| Radial Clearance: | C3 | Misalignment: | No |
| Rolling Element: | Cylindrical Roller | Number of Rows: | 1 |
| Material: | High Chromium Bearing Steel | Platform: | Cylindrical Radial |
| Static Load Rating (lb): | 64, 071 lb | Sealed: | None |
| Full Complement/Caged: | Caged | Speed [Max] Oil (RPM): | 4, 800 rpm |
| Speed [Max] Grease (RPM): | 4, 000 rpm | Duplexing: | No |
| Dynamic Load Rating (lb): | 55, 078 lb | Separable: | Inner ring - both sides |
| Snap Ring: | No | Profile: | Complete with Outer and Inner Race |
| Retainer: | Yes | UPC: | 637410087606 |
| Weight: | 7.87 LB | Packaged Length: | 7.1 Inches |
| Packaged Width: | 6 Inches | Packaged Height: | 2.4 Inches |
| Country of Origin: | China |
