- Through hardened bearing grade steel
- Surfaces precision ground to RBEC 1 tolerances
- Crowned rollers

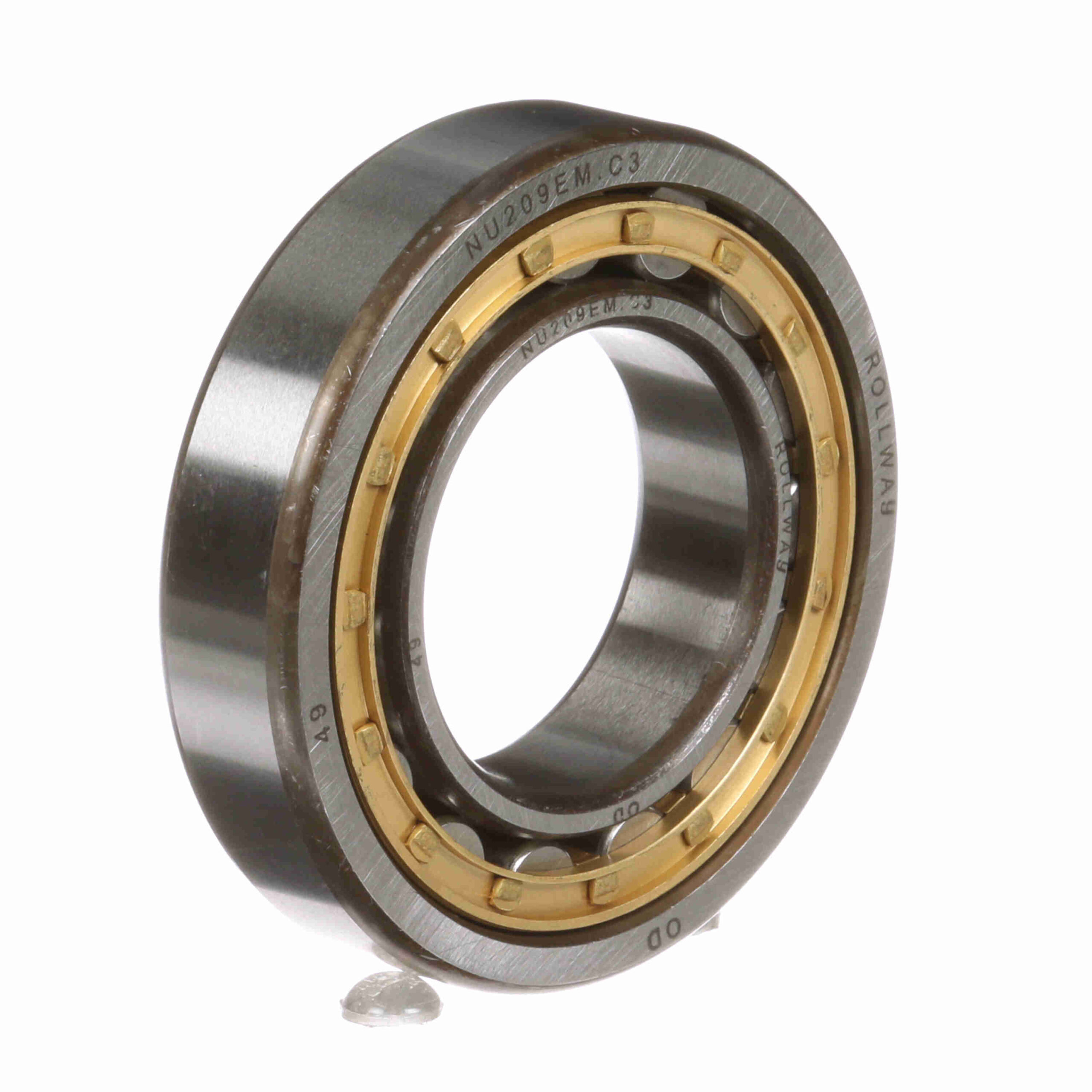

NU 209 EM C3
Rollway Radial Cylindrical Roller Bearing – Caged Roller – Straight Bore – Unsealed – NU 209 EM C3
$176.30
Availability: 4 in stock
Availability: 4 in stock
| Dynamic Load Rating (kN): | 60.1977829128005 kN | Outer Race Configuration: | Non-Separable |
|---|---|---|---|
| Flanges: | (2) Flanges on Outer Ring | Static Load Rating (kN): | 62.8 kN |
| Inner Race Configuration: | Separable Both Directions | Version: | EM: Extra capacity design - Machined brass retainer |
| Seal Type: | Unsealed | Additional Information: | Suitable for radial loads only |
| Cage Material: | Brass | Bore Type: | Straight |
| Misalignment: | No | Number of Rows: | 1 |
| Material: | High Chromium Bearing Steel | Radial Clearance: | C3 |
| Rolling Element: | Cylindrical Roller | Speed [Max] Grease (RPM): | 7, 500 rpm |
| Dynamic Load Rating (lb): | 13, 533 lb | Speed [Max] Oil (RPM): | 9, 000 rpm |
| Duplexing: | No | Static Load Rating (lb): | 14, 118 lb |
| Full Complement/Caged: | Caged | Sealed: | None |
| Platform: | Cylindrical Radial | Separable: | Inner ring - both sides |
| Retainer: | Yes | Snap Ring: | No |
| Profile: | Complete with Outer and Inner Race | UPC: | 637410080423 |
| Weight: | 1.17 LB | Packaged Length: | 2.3 Inches |
| Packaged Width: | 2.2 Inches | Packaged Height: | 2.8 Inches |
| Country of Origin: | China |
