- Browning Finish Bore Spur Gears are shaft ready and eliminate costly reworking of minimum bore gears
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NSS8F20X3/4

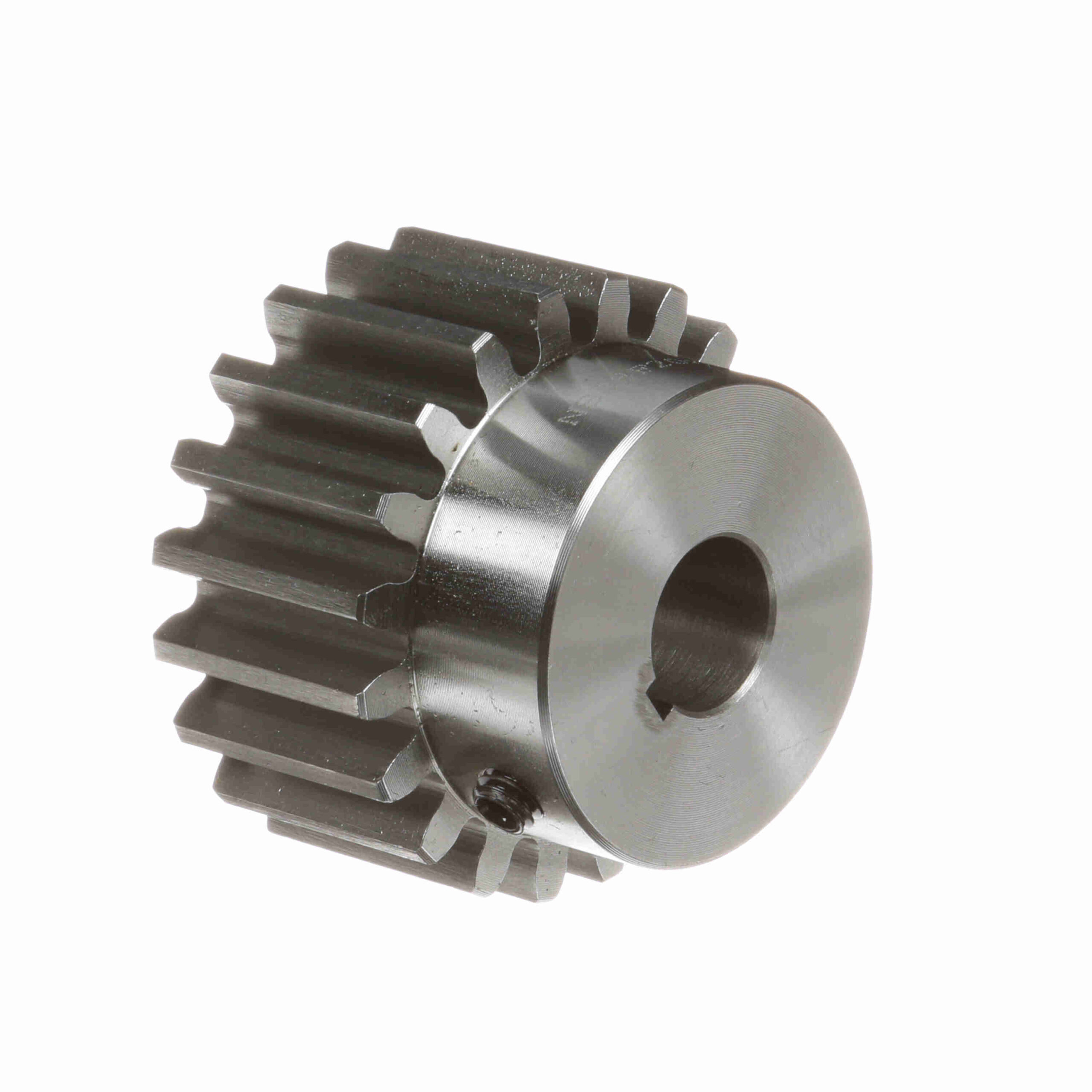

Browning Steel Finished Bore Spur Gear – 14.5 PA 8 DP – NSS8F20X3/4
$345.48
Out of stock
Out of stock
| Diametral Pitch: | 8 | Pressure Angle: | 14.5 |
|---|---|---|---|
| Hub Diameter (in): | 2.125 in | Material: | Steel |
| Outside Diameter (in): | 2.75 in | Pitch Diameter (in): | 2.5 in |
| Hub Projection (in): | 0.75 in | Face Width (in): | 1.25 in |
| Number of Teeth/Threads: | 20 | Length Through Bore (in): | 2 in |
| Bore (Min) (in): | 0.75 in | Bore Type: | Finished Bore |
| Bore (Max) (in): | 0.75 in | Product Type: | Spur Gear |
| Bore Size (in): | 0.75 in | Hub Type: | Type B |
| Overall Length (in): | 2 in | Standard Met: | AGMA |
| UPC: | 662289217656 | Weight: | 2.23 LB |
| Packaged Length: | 3.70 Inches | Packaged Width: | 3.80 Inches |
| Packaged Height: | 2.30 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
