- Browning Finish Bore Spur Gears are shaft ready and eliminate costly reworking of minimum bore gears
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NSS8F16X1

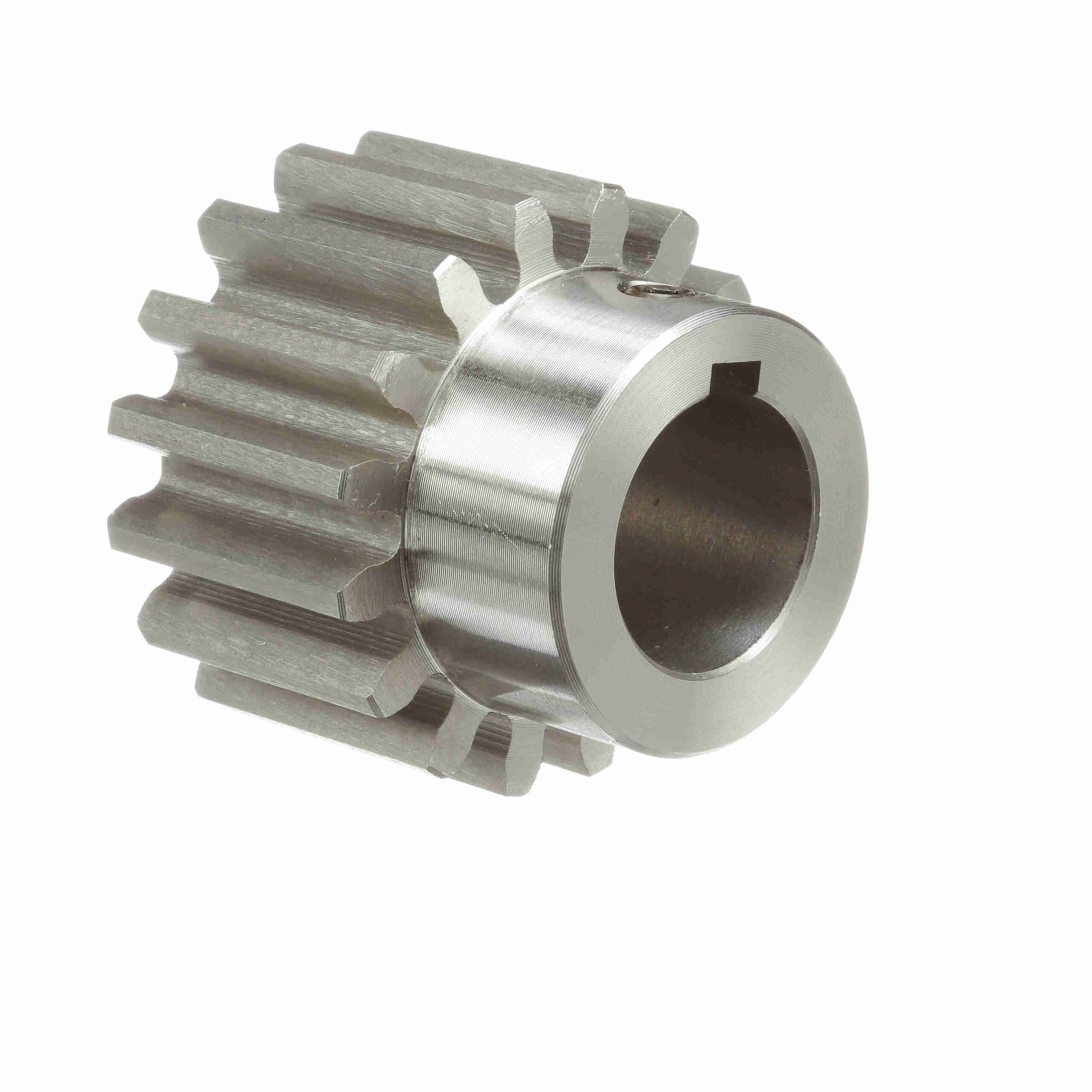

Browning Steel Finished Bore Spur Gear – 14.5 PA 8 DP – NSS8F16X1
$284.36
Out of stock
Out of stock
| Number of Teeth/Threads: | 16 | Diametral Pitch: | 8 |
|---|---|---|---|
| Pitch Diameter (in): | 2 in | Face Width (in): | 1.25 in |
| Material: | Steel | Hub Diameter (in): | 1.625 in |
| Outside Diameter (in): | 2.25 in | Pressure Angle: | 14.5 |
| Hub Projection (in): | 0.75 in | Bore (Min) (in): | 1 in |
| Bore Type: | Finished Bore | Bore (Max) (in): | 1 in |
| Length Through Bore (in): | 2 in | Product Type: | Spur Gear |
| Bore Size (in): | 1 in | Hub Type: | Type B |
| Standard Met: | AGMA | Overall Length (in): | 2 in |
| Gear Construction: | Plain | UPC: | 662289287611 |
| Weight: | 1.10 LB | Packaged Length: | 3.70 Inches |
| Packaged Width: | 3.50 Inches | Packaged Height: | 2.50 Inches |
| HTC: | 8483.40.9000 | Country of Origin: | Mexico |
