- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NSS844

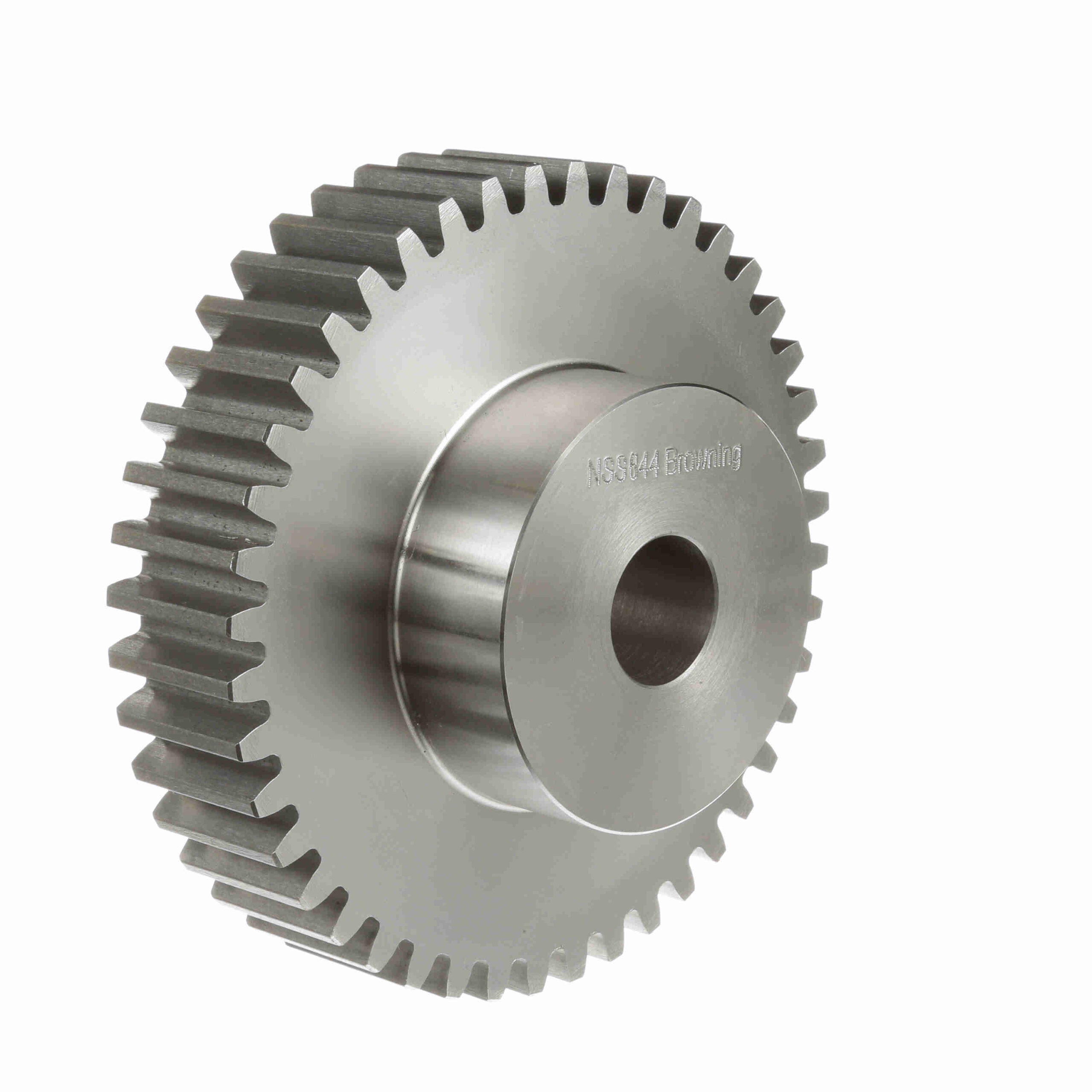

Browning Steel Minimum Plain Bore Spur Gear – 14.5 PA 8 DP – NSS844
$514.98
Out of stock
Out of stock
| Outside Diameter (in): | 5.75 in | Pitch Diameter (in): | 5.5 in |
|---|---|---|---|
| Pressure Angle: | 14.5 | Diametral Pitch: | 8 |
| Material: | Steel | Hub Diameter (in): | 3 in |
| Face Width (in): | 1.25 in | Number of Teeth/Threads: | 44 |
| Hub Projection (in): | 1 in | Length Through Bore (in): | 2.25 in |
| Bore Type: | Minimum Plain Bore | Bore (Max) (in): | 2 in |
| Bore (Min) (in): | 1 in | Product Type: | Spur Gear |
| Bore Size (in): | 1 in | Hub Type: | Type B |
| Overall Length (in): | 2.25 in | Standard Met: | AGMA |
| UPC: | 662289103799 | Weight: | 9.94 LB |
| Packaged Length: | 6.40 Inches | Packaged Width: | 6.20 Inches |
| Packaged Height: | 2.70 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
