- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NSS817

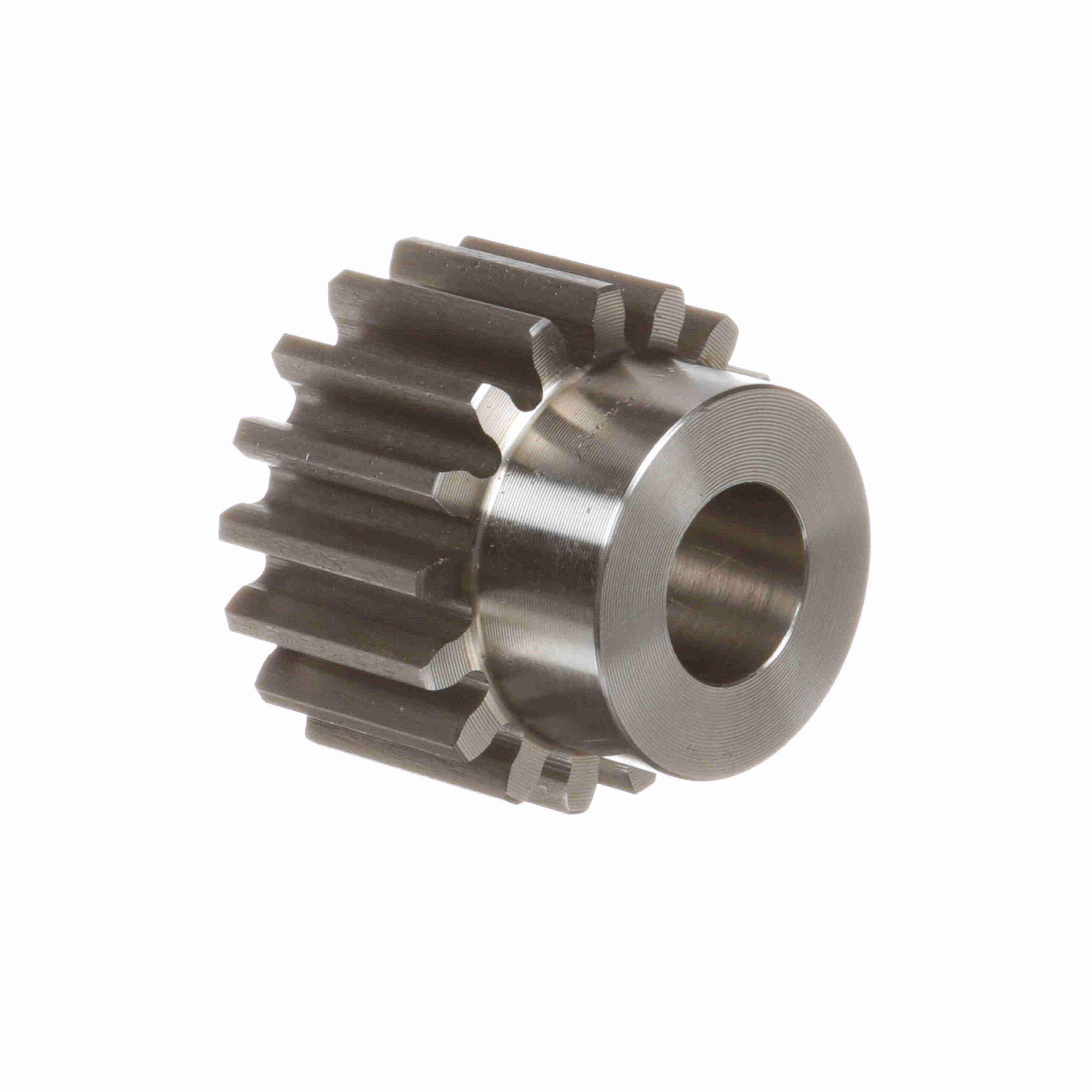

Browning Steel Minimum Plain Bore Spur Gear – 14.5 PA 8 DP – NSS817
Out of stock
| Material: | Steel | Pitch Diameter (in): | 2.125 in |
|---|---|---|---|
| Diametral Pitch: | 8 | Hub Diameter (in): | 1.75 in |
| Hub Projection (in): | 0.75 in | Outside Diameter (in): | 2.37 in |
| Number of Teeth/Threads: | 17 | Pressure Angle: | 14.5 |
| Face Width (in): | 1.25 in | Length Through Bore (in): | 2 in |
| Bore (Max) (in): | 1 in | Bore Type: | Minimum Plain Bore |
| Bore (Min) (in): | 0.875 in | Bore Size (in): | 0.875 in |
| Product Type: | Spur Gear | Hub Type: | Type B |
| Standard Met: | AGMA | Overall Length (in): | 2 in |
| UPC: | 662289303656 | Weight: | 1.42 LB |
| Packaged Length: | 3.56 Inches | Packaged Width: | 3.56 Inches |
| Packaged Height: | 2.25 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
