- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NSS640

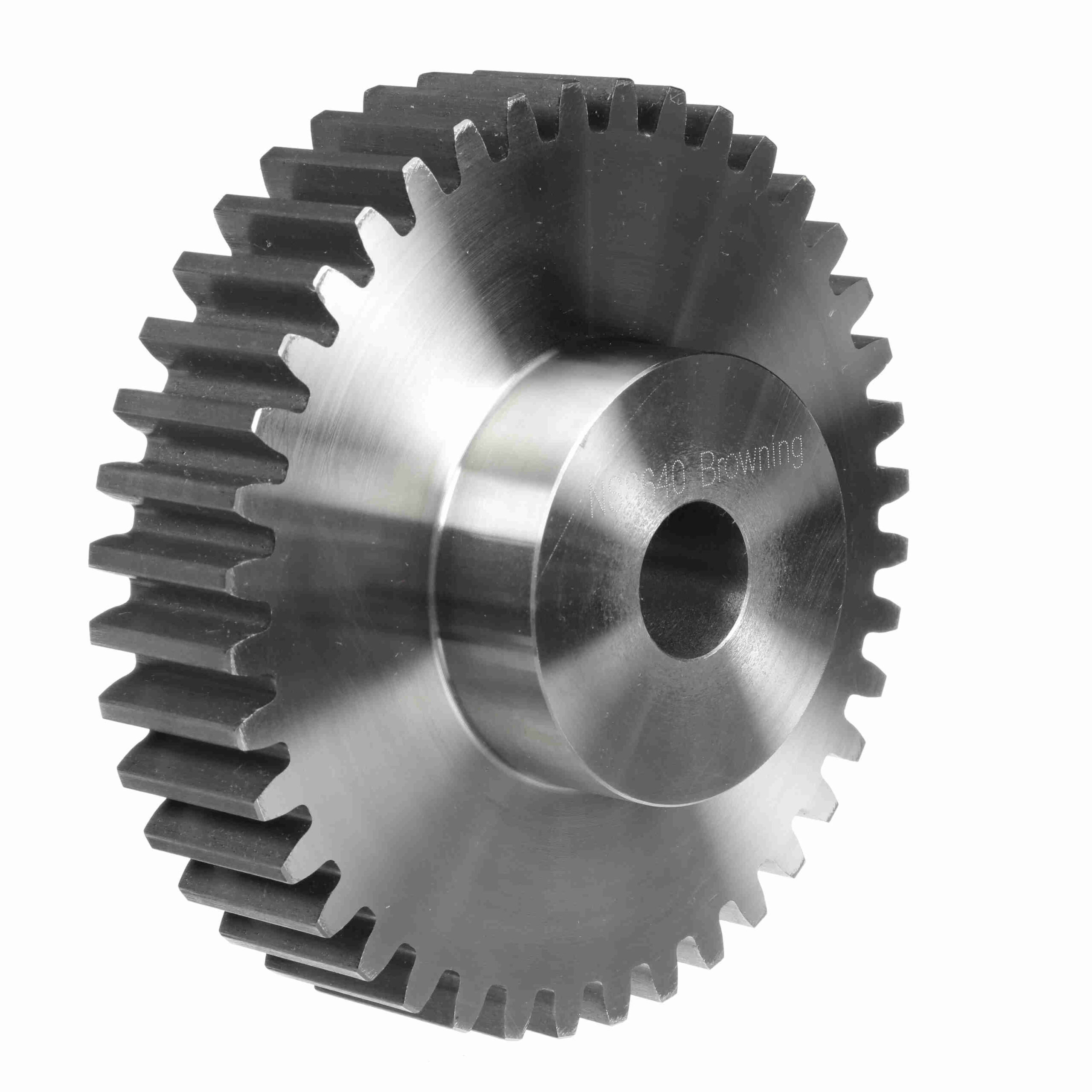

Browning Steel Minimum Plain Bore Spur Gear – 14.5 PA 6 DP – NSS640
Out of stock
| Face Width (in): | 1.5 in | Number of Teeth/Threads: | 40 |
|---|---|---|---|
| Outside Diameter (in): | 7 in | Material: | Steel |
| Pressure Angle: | 14.5 | Hub Projection (in): | 1 in |
| Hub Diameter (in): | 3.25 in | Pitch Diameter (in): | 6.667 in |
| Diametral Pitch: | 6 | Length Through Bore (in): | 2.5 in |
| Bore (Max) (in): | 2.25 in | Bore (Min) (in): | 1.125 in |
| Bore Type: | Minimum Plain Bore | Bore Size (in): | 1.125 in |
| Product Type: | Spur Gear | Hub Type: | Type B |
| Overall Length (in): | 2.5 in | Standard Met: | AGMA |
| UPC: | 662289254125 | Weight: | 16.42 LB |
| Packaged Length: | 7.70 Inches | Packaged Width: | 7.70 Inches |
| Packaged Height: | 2.80 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
