- Browning Split Taper Bushed Spur Gears are shaft ready and eliminate costly reworking of minimum bore gears
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NSS5P20

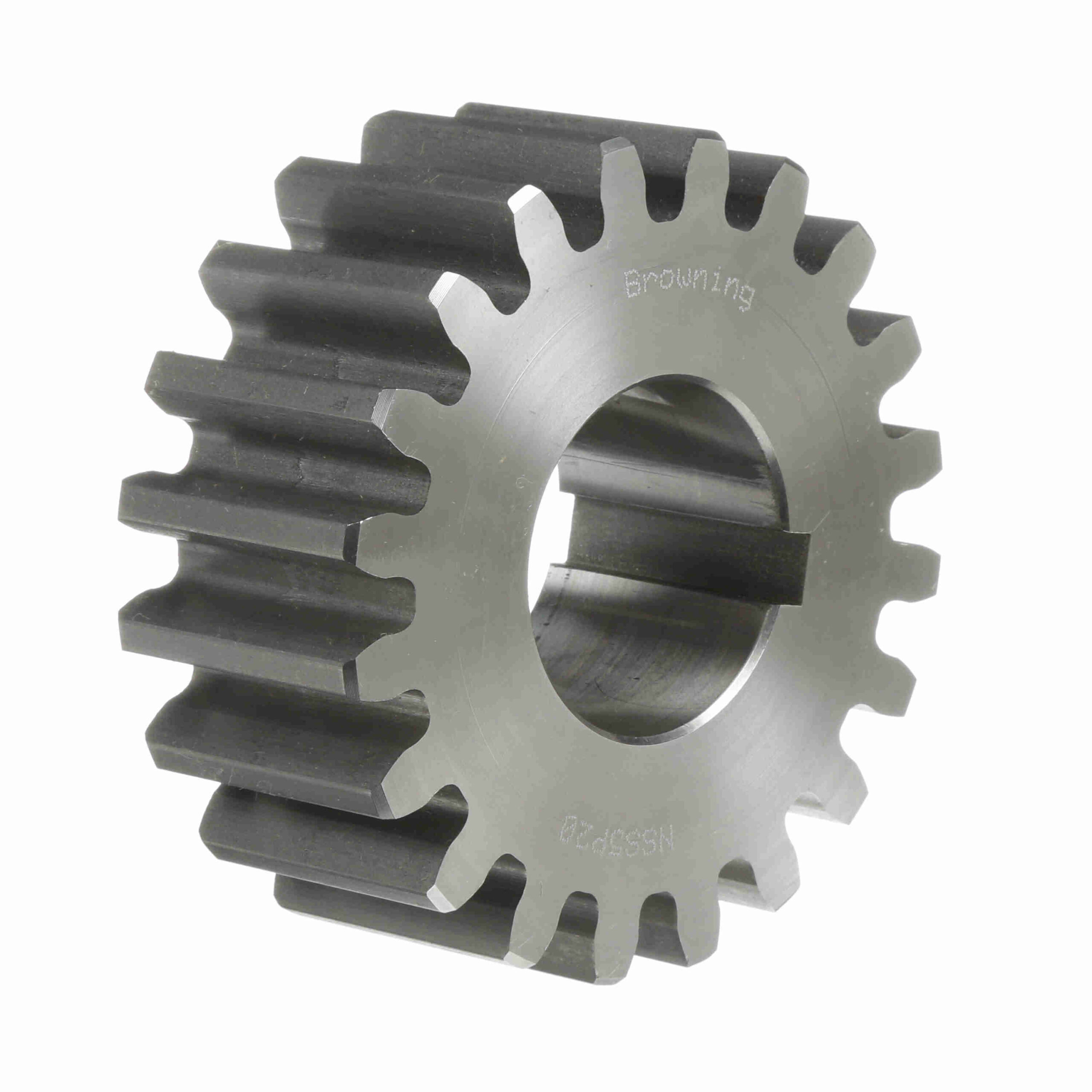

Browning Steel Bushed Bore Spur Gear – 14.5 PA 5 DP – NSS5P20
$393.78
Out of stock
Out of stock
| Pitch Diameter (in): | 4 in | Diametral Pitch: | 5 |
|---|---|---|---|
| Pressure Angle: | 14.5 | Number of Teeth/Threads: | 20 |
| Material: | Steel | Outside Diameter (in): | 4.4 in |
| Face Width (in): | 1.75 in | Bore Type: | Bushed Bore |
| Length Through Bore (in): | 2.625 in | Bore (Max) (in): | 1.75 in |
| Bore (Min) (in): | 0.5 in | Bore Size (in): | 0.5 in |
| Product Type: | Spur Gear | Hub Type: | P1 |
| Overall Length (in): | 2.625 in | Standard Met: | AGMA |
| UPC: | 662289115969 | Weight: | 4.63 LB |
| Packaged Length: | 5.40 Inches | Packaged Width: | 5.10 Inches |
| Packaged Height: | 1.90 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
