- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NSS516

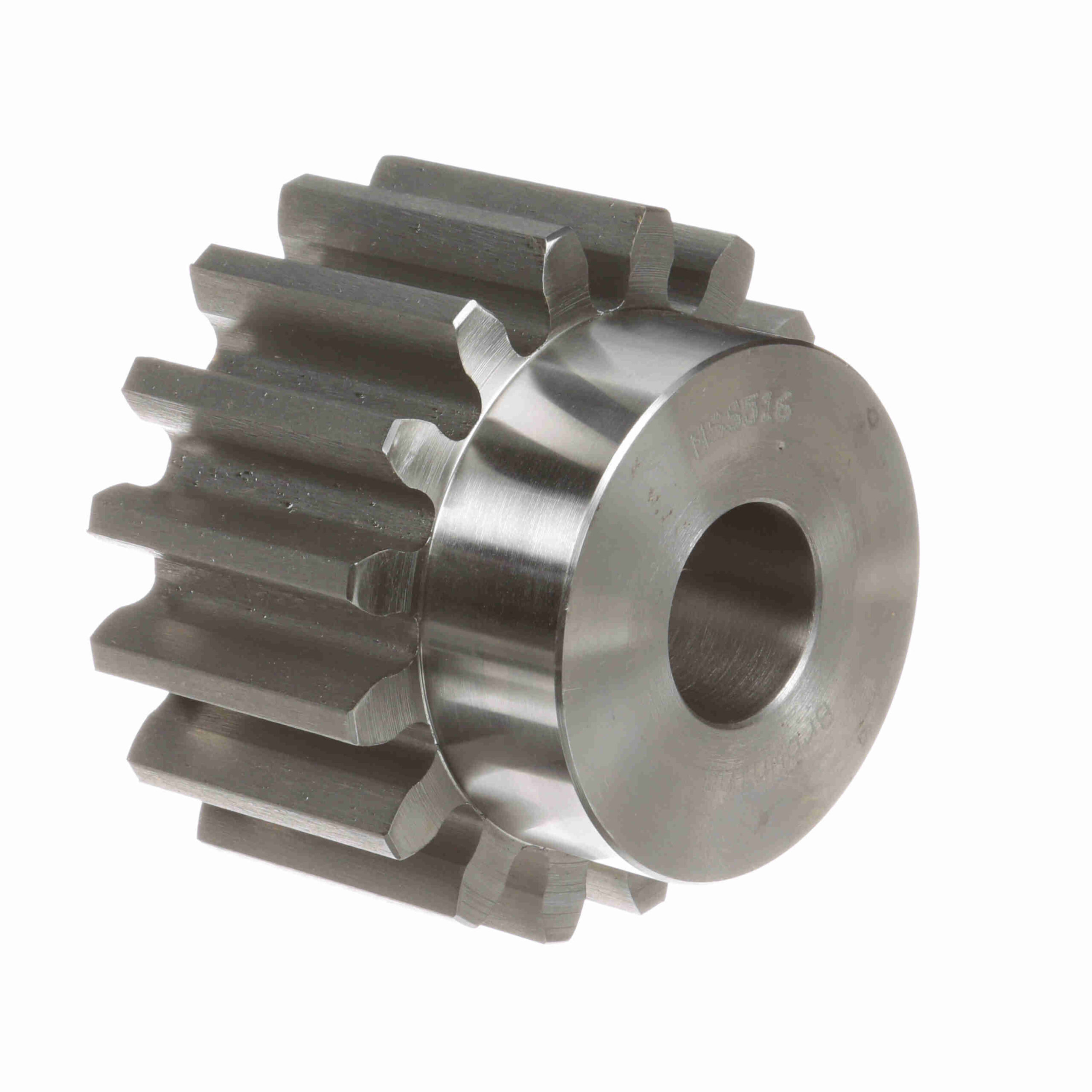

Browning Steel Minimum Plain Bore Spur Gear – 14.5 PA 5 DP – NSS516
Out of stock
| Pitch Diameter (in): | 3.2 in | Pressure Angle: | 14.5 |
|---|---|---|---|
| Hub Diameter (in): | 2.625 in | Material: | Steel |
| Hub Projection (in): | 0.875 in | Diametral Pitch: | 5 |
| Number of Teeth/Threads: | 16 | Outside Diameter (in): | 3.6 in |
| Face Width (in): | 1.75 in | Length Through Bore (in): | 2.625 in |
| Bore (Max) (in): | 1.75 in | Bore (Min) (in): | 1.0625 in |
| Bore Type: | Minimum Plain Bore | Product Type: | Spur Gear |
| Bore Size (in): | 1.0625 in | Hub Type: | Type B |
| Overall Length (in): | 2.625 in | Standard Met: | AGMA |
| UPC: | 662289114313 | Weight: | 4.56 LB |
| Packaged Length: | 4.50 Inches | Packaged Width: | 4.30 Inches |
| Packaged Height: | 2.90 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
