- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NSS3296

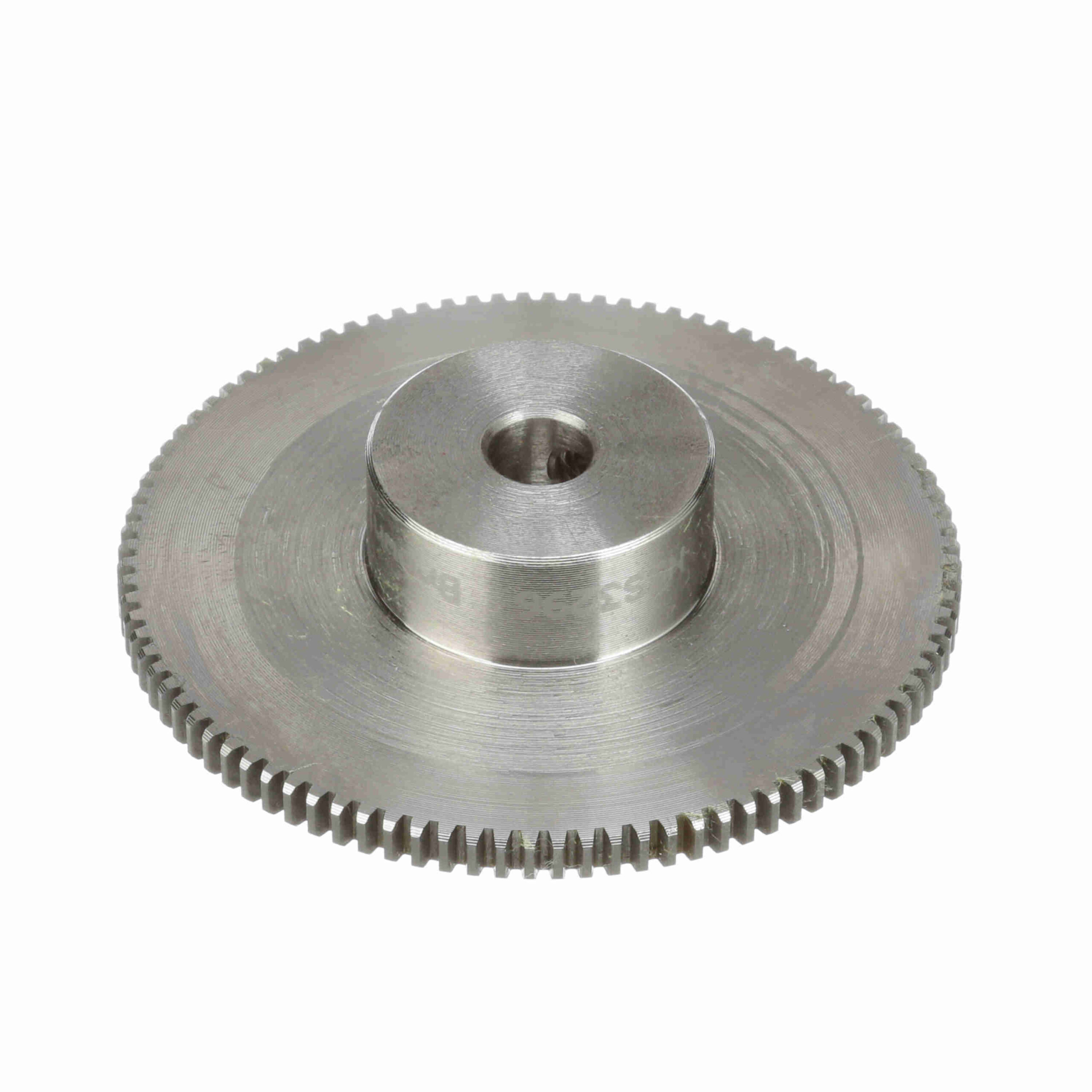

Browning Steel Minimum Plain Bore Spur Gear – 14.5 PA 32 DP – NSS3296
Out of stock
| Pitch Diameter (in): | 3 in | Pressure Angle: | 14.5 |
|---|---|---|---|
| Face Width (in): | 0.1875 in | Hub Diameter (in): | 1.25 in |
| Outside Diameter (in): | 3.06 in | Material: | Steel |
| Hub Projection (in): | 0.5 in | Number of Teeth/Threads: | 96 |
| Diametral Pitch: | 32 | Bore (Min) (in): | 0.375 in |
| Bore Type: | Minimum Plain Bore | Bore (Max) (in): | 0.5625 in |
| Length Through Bore (in): | 0.6875 in | Bore Size (in): | 0.375 in |
| Product Type: | Spur Gear | Hub Type: | Type B |
| Overall Length (in): | 0.6875 in | Standard Met: | AGMA |
| UPC: | 662289261376 | Weight: | 0.98 LB |
| Packaged Length: | 3.90 Inches | Packaged Width: | 3.70 Inches |
| Packaged Height: | 1.50 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
