- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NSS2472A

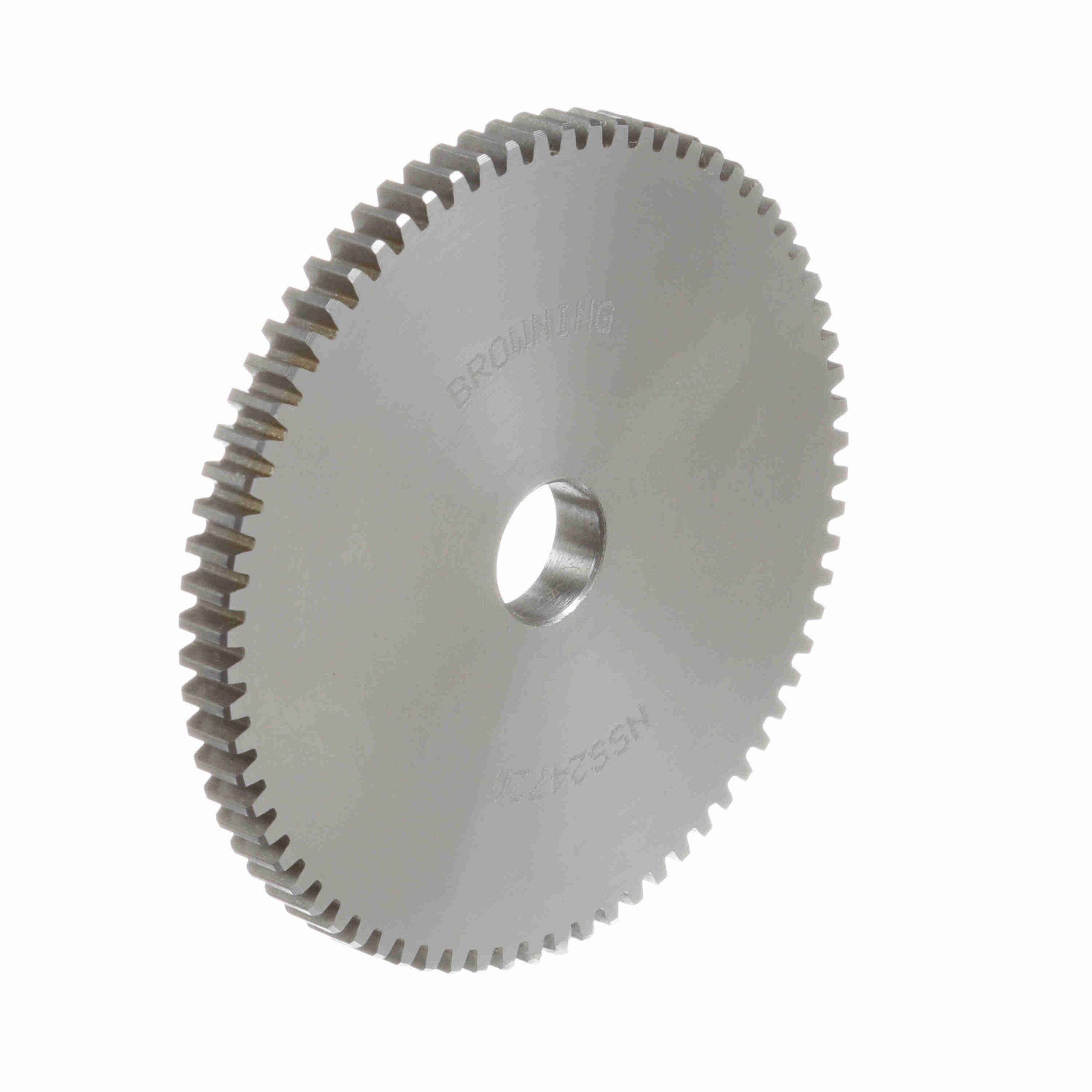

Browning Steel Minimum Plain Bore Spur Gear – 14.5 PA 24 DP – NSS2472A
$95.54
Out of stock
Out of stock
| Face Width (in): | 0.25 in | Outside Diameter (in): | 3.08 in |
|---|---|---|---|
| Number of Teeth/Threads: | 72 | Pitch Diameter (in): | 3 in |
| Diametral Pitch: | 24 | Pressure Angle: | 14.5 |
| Material: | Steel | Bore (Min) (in): | 0.5 in |
| Bore (Max) (in): | 0.5 in | Bore Type: | Minimum Plain Bore |
| Bore Size (in): | 0.5 in | Product Type: | Spur Gear |
| Hub Type: | Type A | Standard Met: | AGMA |
| UPC: | 662289171132 | Weight: | 0.54 LB |
| Packaged Length: | 3.30 Inches | Packaged Width: | 3.00 Inches |
| Packaged Height: | 1.30 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
