- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NSS2460A

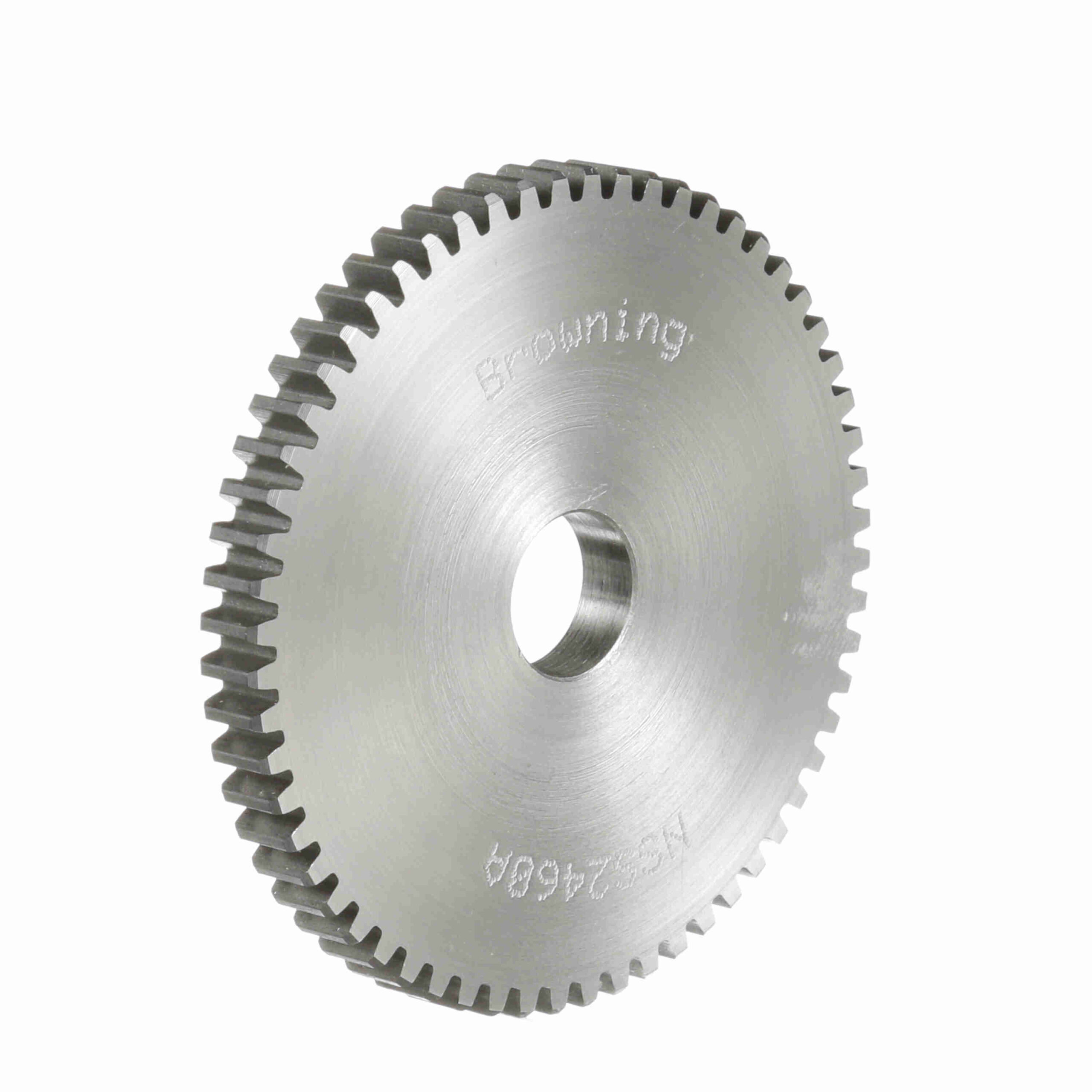

Browning Steel Minimum Plain Bore Spur Gear – 14.5 PA 24 DP – NSS2460A
Out of stock
| Pitch Diameter (in): | 2.5 in | Face Width (in): | 0.25 in |
|---|---|---|---|
| Outside Diameter (in): | 2.58 in | Material: | Steel |
| Number of Teeth/Threads: | 60 | Diametral Pitch: | 24 |
| Pressure Angle: | 14.5 | Bore (Min) (in): | 0.5 in |
| Bore (Max) (in): | 0.5 in | Bore Type: | Minimum Plain Bore |
| Bore Size (in): | 0.5 in | Product Type: | Spur Gear |
| Hub Type: | Type A | Standard Met: | AGMA |
| UPC: | 662289241187 | Weight: | 0.36 LB |
| Packaged Length: | 3.06 Inches | Packaged Width: | 3.06 Inches |
| Packaged Height: | 1.31 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
