- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NSS2050

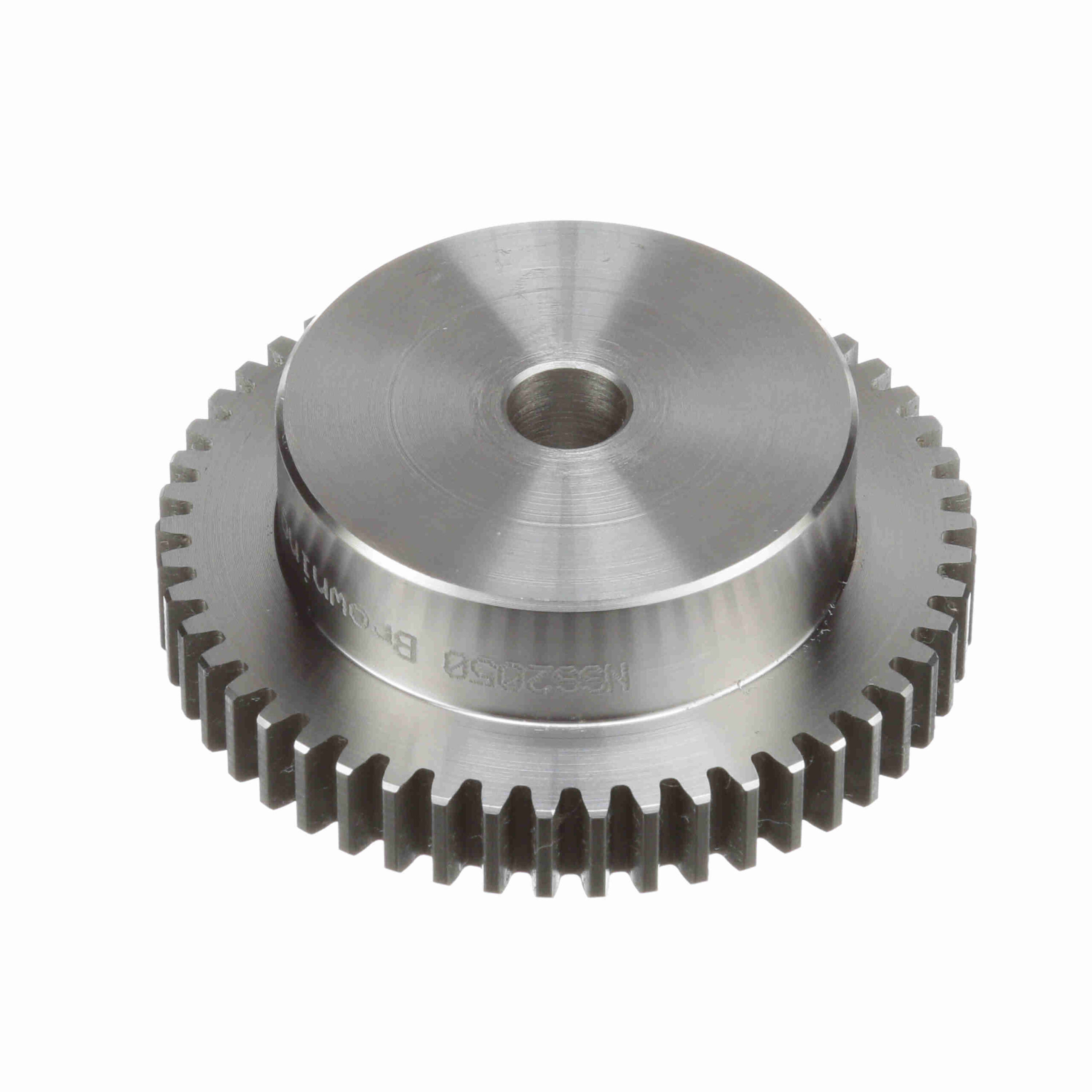

Browning Steel Minimum Plain Bore Spur Gear – 14.5 PA 20 DP – NSS2050
$153.26
Out of stock
Out of stock
| Pressure Angle: | 14.5 | Hub Diameter (in): | 1.8125 in |
|---|---|---|---|
| Pitch Diameter (in): | 2.5 in | Material: | Steel |
| Diametral Pitch: | 20 | Outside Diameter (in): | 2.6 in |
| Hub Projection (in): | 0.5 in | Face Width (in): | 0.375 in |
| Number of Teeth/Threads: | 50 | Bore Type: | Minimum Plain Bore |
| Bore (Max) (in): | 1 in | Length Through Bore (in): | 0.875 in |
| Bore (Min) (in): | 0.375 in | Bore Size (in): | 0.375 in |
| Product Type: | Spur Gear | Hub Type: | Type B |
| Standard Met: | AGMA | Overall Length (in): | 0.875 in |
| UPC: | 662289191987 | Weight: | 1.31 LB |
| Packaged Length: | 3.40 Inches | Packaged Width: | 3.10 Inches |
| Packaged Height: | 1.50 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
