- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NSS2036

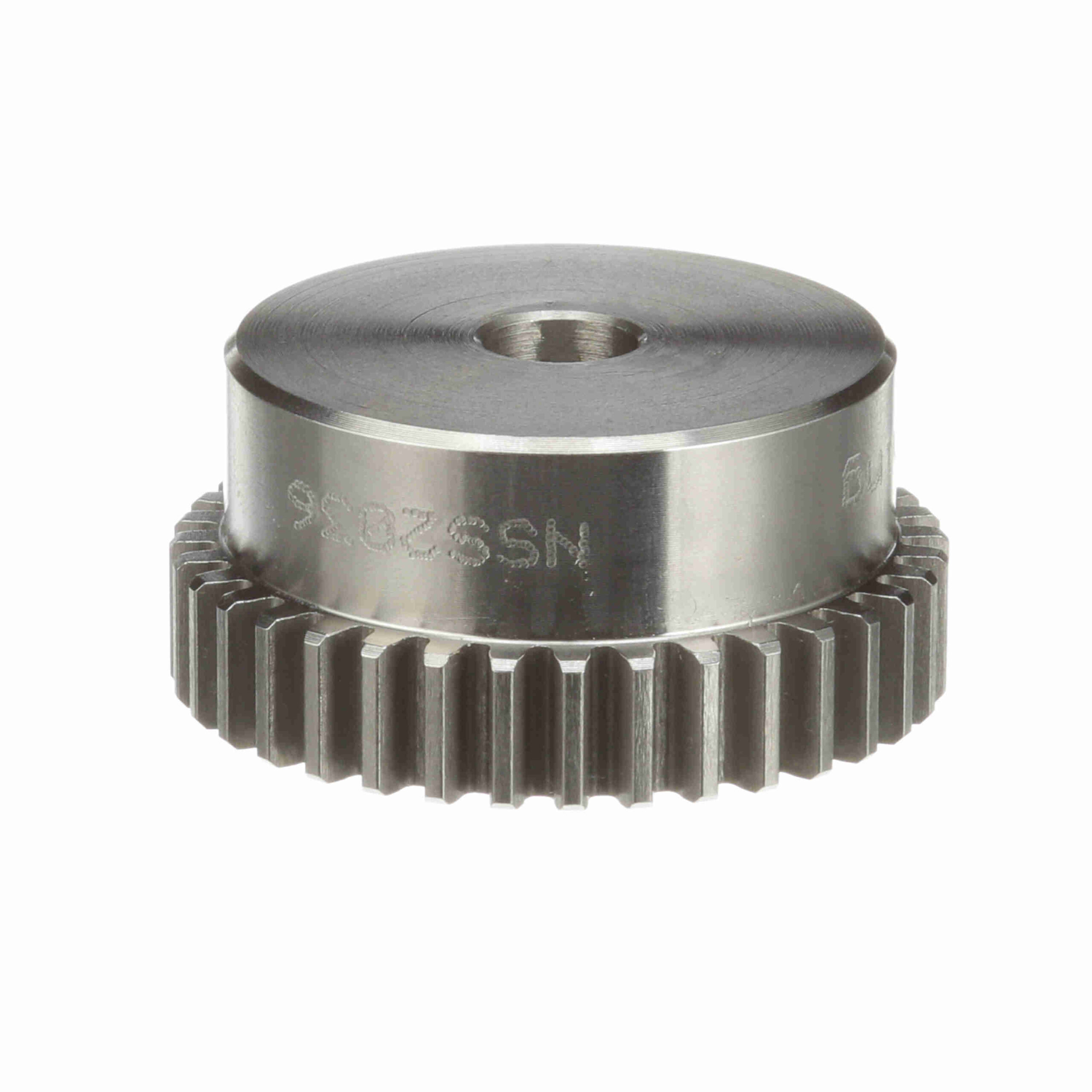

Browning Steel Minimum Plain Bore Spur Gear – 14.5 PA 20 DP – NSS2036
$112.04
Out of stock
Out of stock
| Diametral Pitch: | 20 | Outside Diameter (in): | 1.9 in |
|---|---|---|---|
| Hub Projection (in): | 0.5 in | Number of Teeth/Threads: | 36 |
| Pressure Angle: | 14.5 | Pitch Diameter (in): | 1.8 in |
| Hub Diameter (in): | 1.625 in | Face Width (in): | 0.375 in |
| Material: | Steel | Length Through Bore (in): | 0.875 in |
| Bore Type: | Minimum Plain Bore | Bore (Min) (in): | 0.375 in |
| Bore (Max) (in): | 0.875 in | Bore Size (in): | 0.375 in |
| Product Type: | Spur Gear | Hub Type: | Type B |
| Overall Length (in): | 0.875 in | Standard Met: | AGMA |
| UPC: | 662289151974 | Weight: | 0.57 LB |
| Packaged Length: | 2.90 Inches | Packaged Width: | 2.60 Inches |
| Packaged Height: | 1.50 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
