- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NSS20180

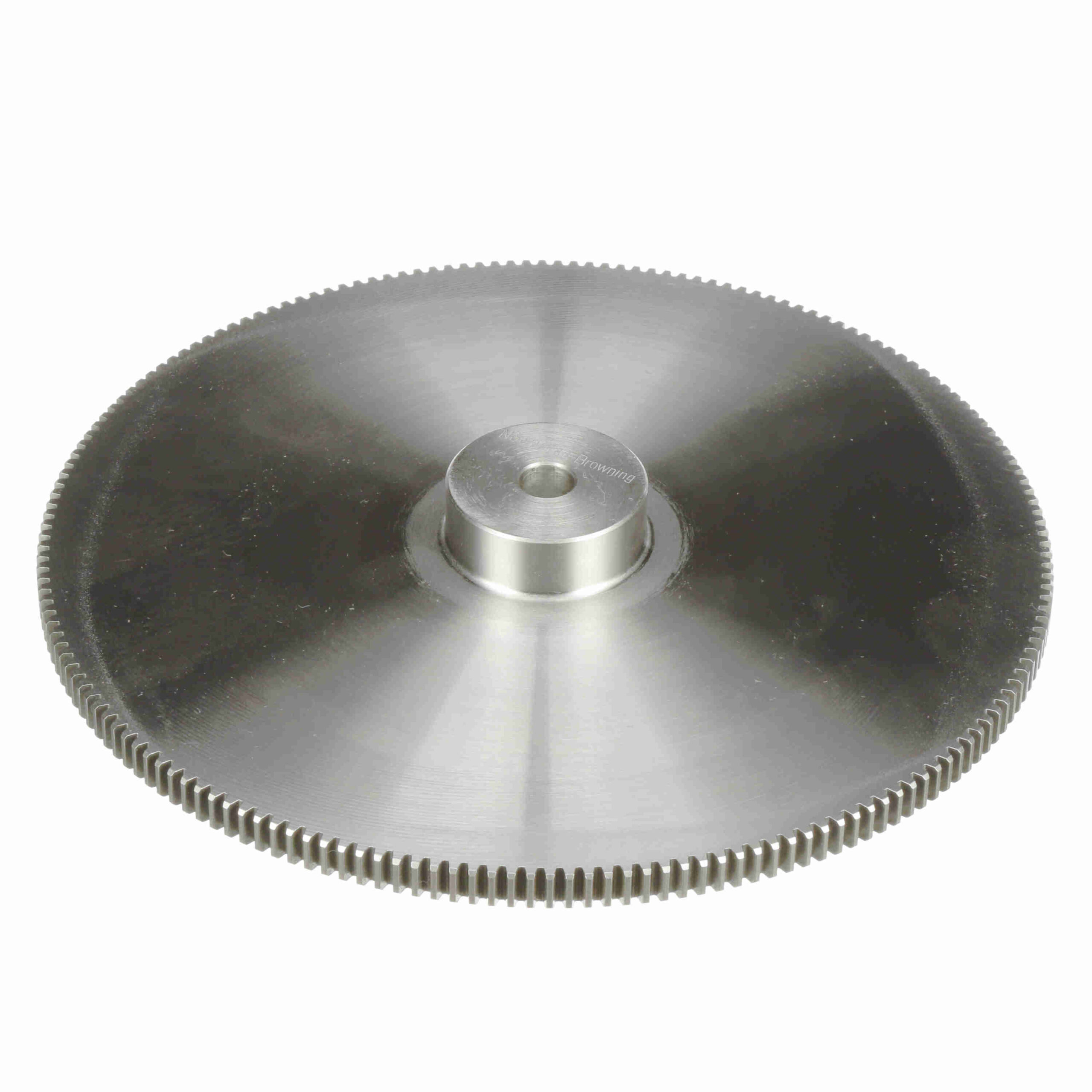

Browning Steel Minimum Plain Bore Spur Gear – 14.5 PA 20 DP – NSS20180
$486.60
Out of stock
Out of stock
| Outside Diameter (in): | 9.1 in | Hub Projection (in): | 0.625 in |
|---|---|---|---|
| Hub Diameter (in): | 1.8125 in | Diametral Pitch: | 20 |
| Pitch Diameter (in): | 9 in | Material: | Steel |
| Pressure Angle: | 14.5 | Number of Teeth/Threads: | 180 |
| Face Width (in): | 0.375 in | Bore Type: | Minimum Plain Bore |
| Length Through Bore (in): | 1 in | Bore (Min) (in): | 0.5 in |
| Bore (Max) (in): | 1 in | Product Type: | Spur Gear |
| Bore Size (in): | 0.5 in | Hub Type: | Type B |
| Standard Met: | AGMA | Overall Length (in): | 1 in |
| UPC: | 662289192137 | Weight: | 7.39 LB |
| Packaged Length: | 9.80 Inches | Packaged Width: | 10.00 Inches |
| Packaged Height: | 1.30 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
