- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NSS1654

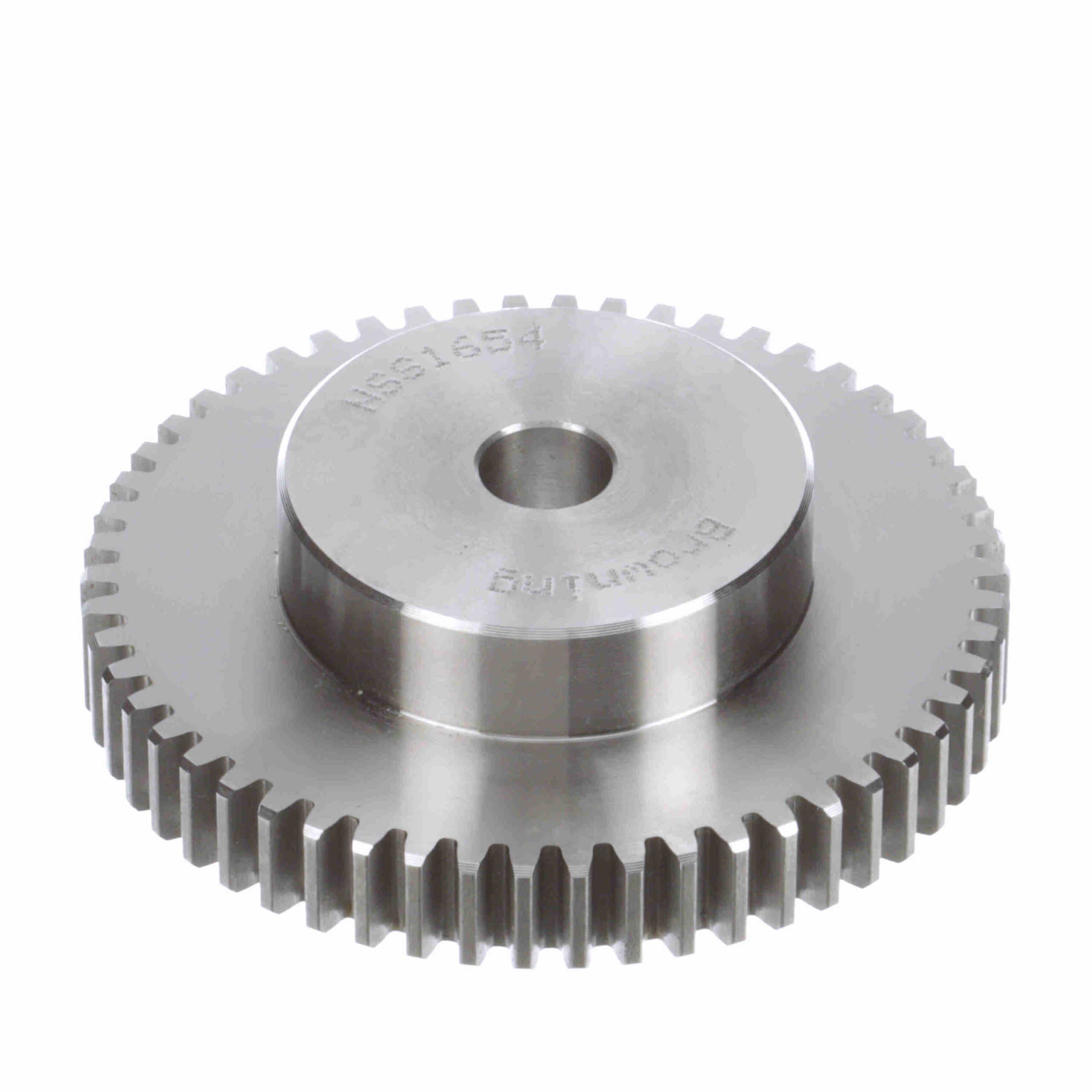

Browning Steel Minimum Plain Bore Spur Gear – 14.5 PA 16 DP – NSS1654
Out of stock
| Number of Teeth/Threads: | 54 | Face Width (in): | 0.5 in |
|---|---|---|---|
| Outside Diameter (in): | 3.5 in | Pitch Diameter (in): | 3.375 in |
| Material: | Steel | Pressure Angle: | 14.5 |
| Hub Diameter (in): | 2 in | Diametral Pitch: | 16 |
| Hub Projection (in): | 0.5 in | Bore (Max) (in): | 1.25 in |
| Bore Type: | Minimum Plain Bore | Bore (Min) (in): | 0.5 in |
| Length Through Bore (in): | 1 in | Product Type: | Spur Gear |
| Bore Size (in): | 0.5 in | Hub Type: | Type B |
| Standard Met: | AGMA | Overall Length (in): | 1 in |
| UPC: | 662289202423 | Weight: | 0.29 LB |
| Packaged Length: | 4.50 Inches | Packaged Width: | 4.40 Inches |
| Packaged Height: | 0.90 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
