- Browning Finish Bore Spur Gears are shaft ready and eliminate costly reworking of minimum bore gears
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NSS12F22X3/4

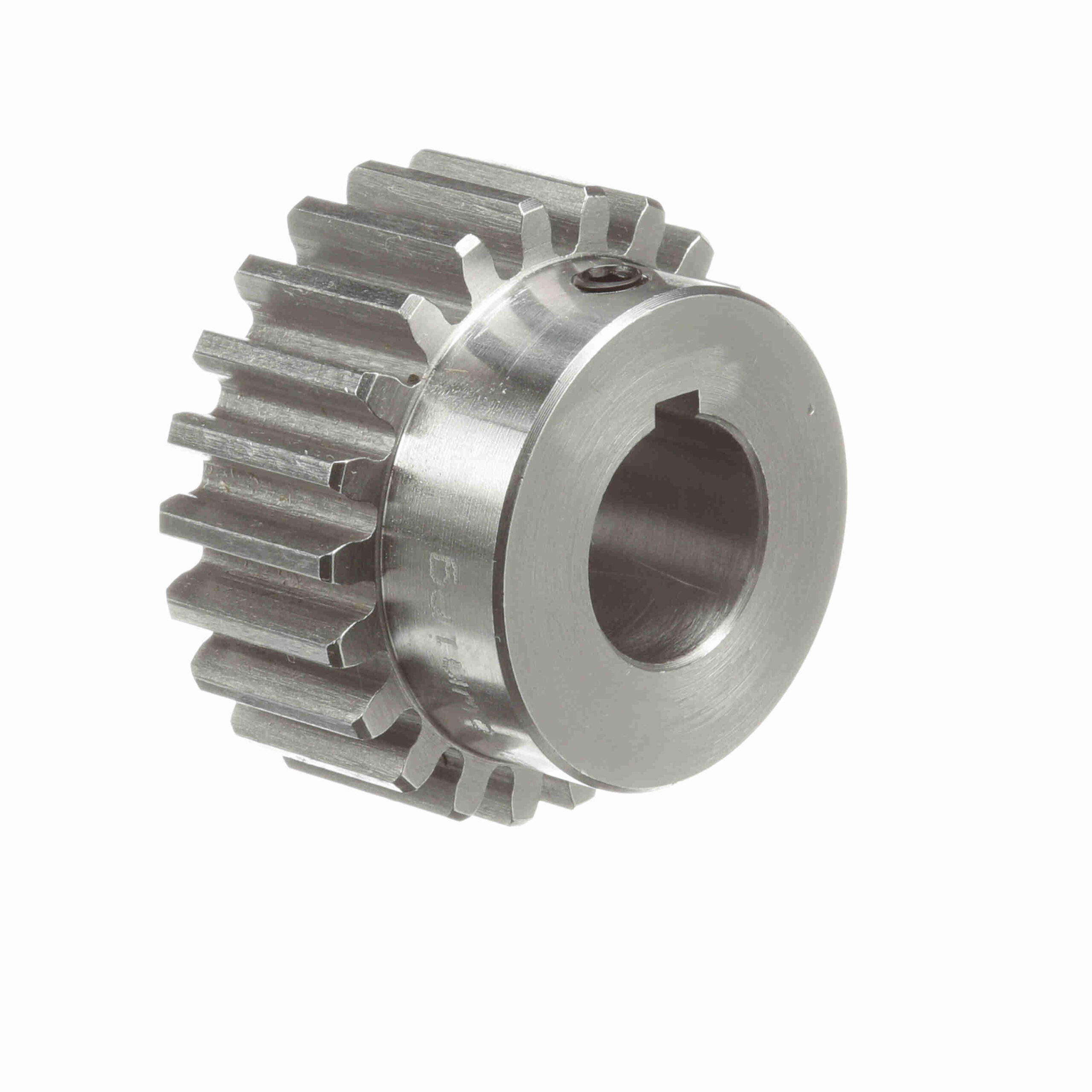

Browning Steel Finished Bore Spur Gear – 14.5 PA 12 DP – NSS12F22X3/4
$334.66
Out of stock
Out of stock
| Pressure Angle: | 14.5 | Outside Diameter (in): | 2 in |
|---|---|---|---|
| Material: | Steel | Pitch Diameter (in): | 1.833 in |
| Diametral Pitch: | 12 | Face Width (in): | 0.75 in |
| Hub Projection (in): | 0.5 in | Number of Teeth/Threads: | 22 |
| Hub Diameter (in): | 1.5625 in | Bore (Min) (in): | 0.75 in |
| Bore Type: | Finished Bore | Length Through Bore (in): | 1.25 in |
| Bore (Max) (in): | 0.75 in | Product Type: | Spur Gear |
| Bore Size (in): | 0.75 in | Hub Type: | Type B |
| Overall Length (in): | 1.25 in | Standard Met: | AGMA |
| UPC: | 662289297306 | Weight: | 0.69 LB |
| Packaged Length: | 3.10 Inches | Packaged Width: | 2.60 Inches |
| Packaged Height: | 2.00 Inches |
