- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NSS1256

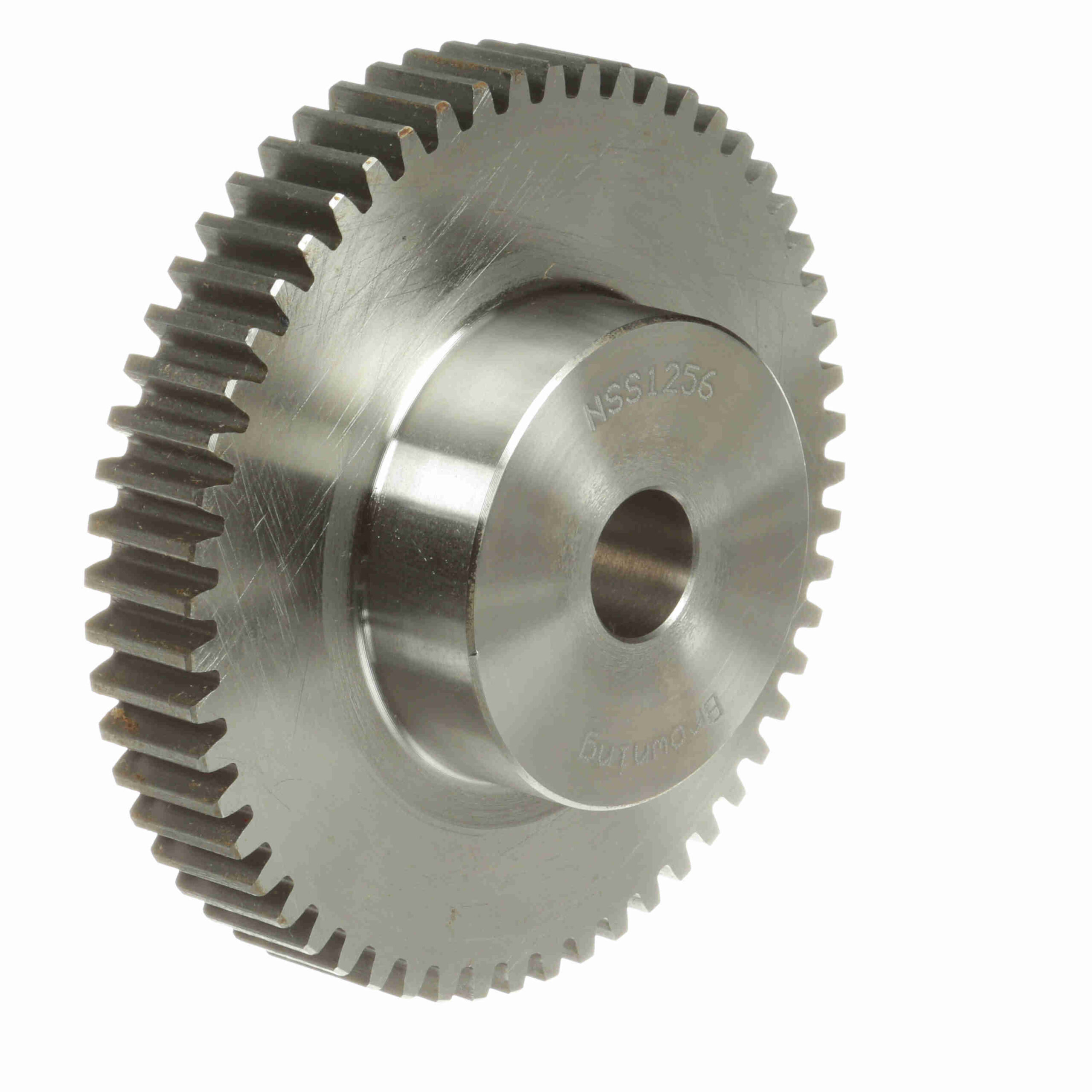

Browning Steel Minimum Plain Bore Spur Gear – 14.5 PA 12 DP – NSS1256
Out of stock
| Material: | Steel | Number of Teeth/Threads: | 56 |
|---|---|---|---|
| Pitch Diameter (in): | 4.667 in | Diametral Pitch: | 12 |
| Face Width (in): | 0.75 in | Outside Diameter (in): | 4.83 in |
| Hub Diameter (in): | 2.5 in | Hub Projection (in): | 0.75 in |
| Pressure Angle: | 14.5 | Bore (Max) (in): | 1.625 in |
| Length Through Bore (in): | 1.5 in | Bore (Min) (in): | 0.75 in |
| Bore Type: | Minimum Plain Bore | Product Type: | Spur Gear |
| Bore Size (in): | 0.75 in | Hub Type: | Type B |
| Overall Length (in): | 1.5 in | Standard Met: | AGMA |
| UPC: | 662289292974 | Weight: | 4.54 LB |
| Packaged Length: | 5.40 Inches | Packaged Width: | 5.10 Inches |
| Packaged Height: | 19.60 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
