- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NSS1216

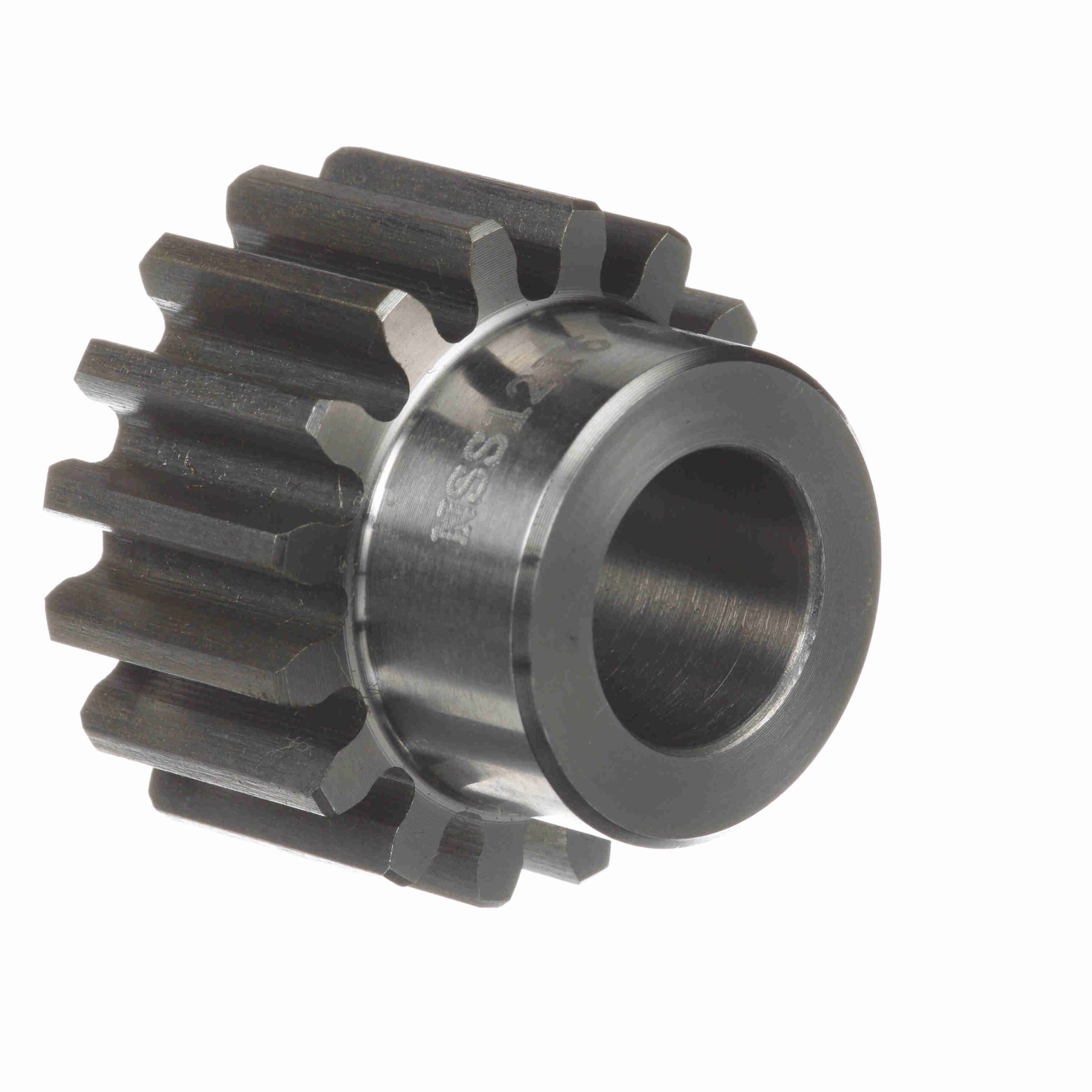

Browning Steel Minimum Plain Bore Spur Gear – 14.5 PA 12 DP – NSS1216
$95.82
Out of stock
Out of stock
| Hub Projection (in): | 0.5 in | Diametral Pitch: | 12 |
|---|---|---|---|
| Face Width (in): | 0.75 in | Hub Diameter (in): | 1.0625 in |
| Number of Teeth/Threads: | 16 | Material: | Steel |
| Pressure Angle: | 14.5 | Outside Diameter (in): | 1.5 in |
| Pitch Diameter (in): | 1.333 in | Bore (Max) (in): | 0.625 in |
| Length Through Bore (in): | 1.25 in | Bore (Min) (in): | 0.625 in |
| Bore Type: | Minimum Plain Bore | Bore Size (in): | 0.625 in |
| Product Type: | Spur Gear | Hub Type: | Type B |
| Overall Length (in): | 1.25 in | Standard Met: | AGMA |
| UPC: | 662289162710 | Weight: | 0.33 LB |
| Packaged Length: | 2.70 Inches | Packaged Width: | 2.70 Inches |
| Packaged Height: | 1.50 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
