- Browning Finish Bore Spur Gears are shaft ready and eliminate costly reworking of minimum bore gears
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NSS10F16X3/4

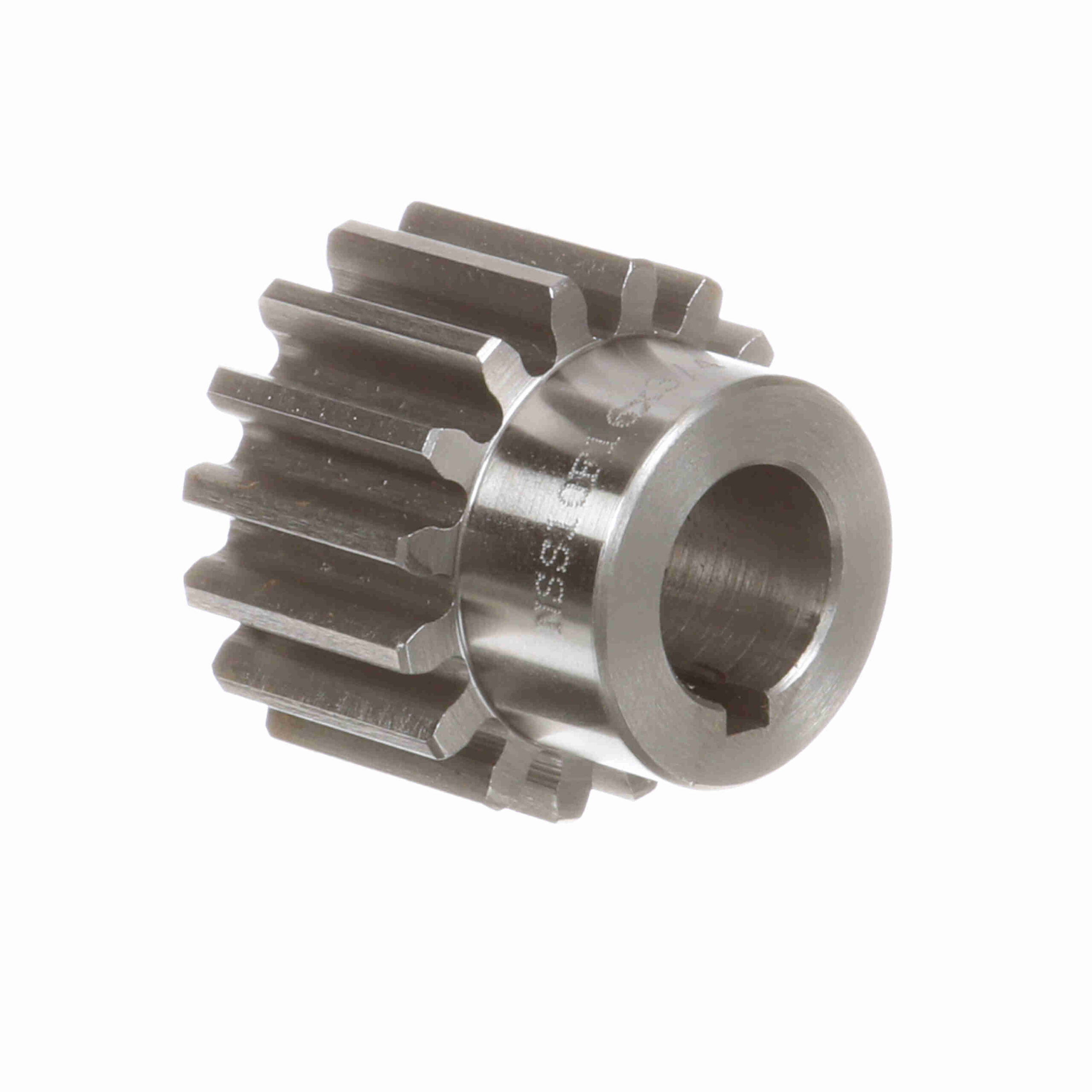

Browning Steel Finished Bore Spur Gear – 14.5 PA 10 DP – NSS10F16X3/4
Out of stock
| Hub Diameter (in): | 1.3125 in | Outside Diameter (in): | 1.8 in |
|---|---|---|---|
| Hub Projection (in): | 0.625 in | Diametral Pitch: | 10 |
| Face Width (in): | 1 in | Material: | Steel |
| Pitch Diameter (in): | 1.6 in | Pressure Angle: | 14.5 |
| Number of Teeth/Threads: | 16 | Bore (Max) (in): | 0.75 in |
| Length Through Bore (in): | 1.625 in | Bore (Min) (in): | 0.75 in |
| Bore Type: | Finished Bore | Product Type: | Spur Gear |
| Bore Size (in): | 0.75 in | Hub Type: | Type B |
| Standard Met: | AGMA | Overall Length (in): | 1.625 in |
| UPC: | 662289217427 | Weight: | 0.61 LB |
| Packaged Length: | 3.00 Inches | Packaged Width: | 2.50 Inches |
| Packaged Height: | 2.00 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
