- Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry
- The NFS Sprag one way clutch is designed with the same overall dimensions as medium series metric ball bearing.
- Manufactured with an inner race containing a key seat and out race containing key slots

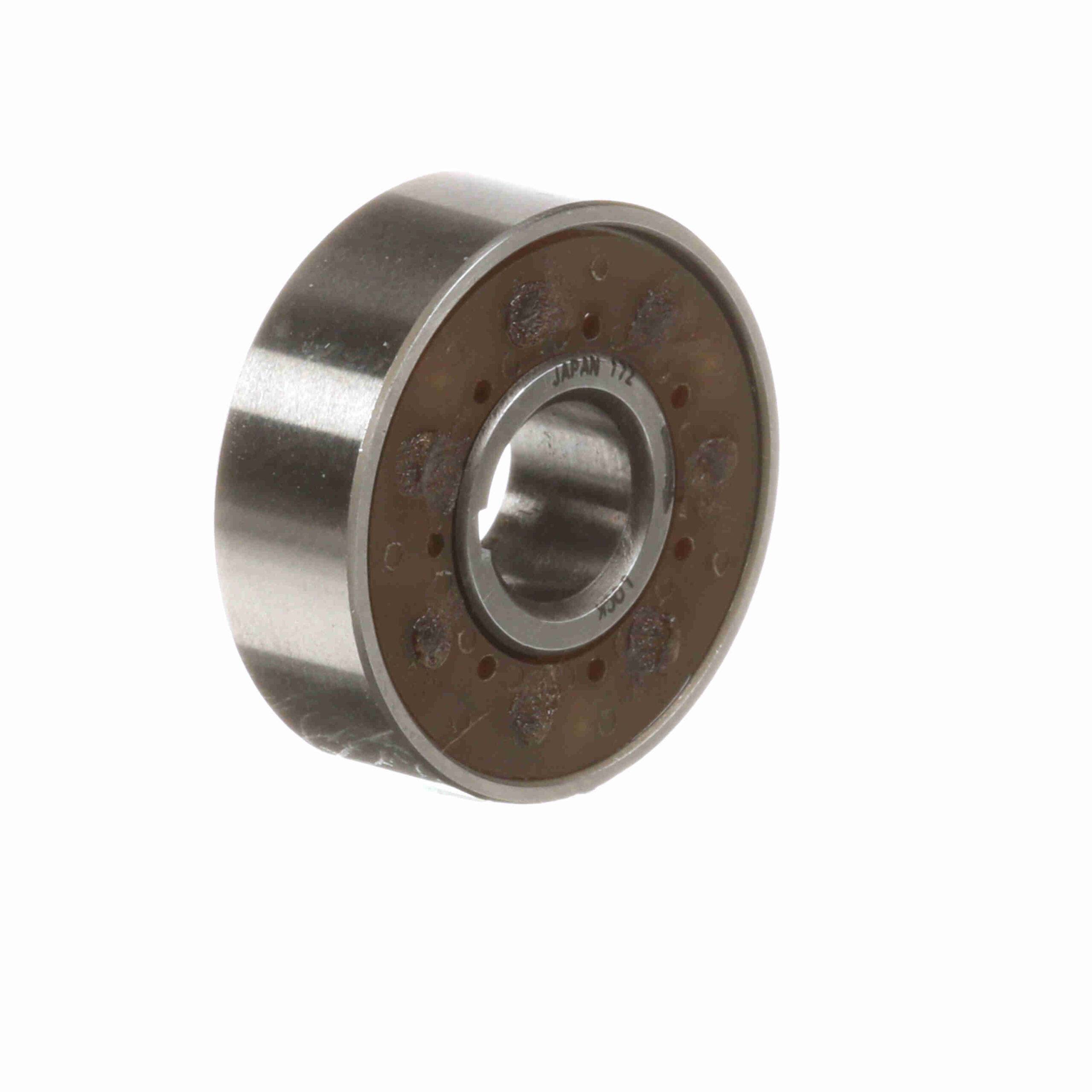

NSS-8 CLUTCH
Morse NSS Series CAM Clutch – NSS-8 CLUTCH
$3,219.86
Out of stock
Out of stock
| Rated Torque Capacity (ft.-lbs.): | 4.9 | Type: | CAM Clutches |
|---|---|---|---|
| Drag Torque (N-m): | .005 | Model: | NSS 8 |
| Lubrication Type: | The clutches are supplied with a protective coating of oil and must be lubricated before putting into service. | Keyway (in): | 0.08 x 0.04 in |
| Keyway (mm): | 2 x 1.0 mm | Maximum Overrunning Speed - Inner Race (rpm): | 6, 000 |
| Rated Torque Capacity (N-m): | 6.7 | Drag Torque (lb-in): | .0444 |
| Maximum Overrunning Speed - Outer Race (rpm): | 3, 000 | Add'l Bearing Support Requirement: | Yes |
| Backstopping Clutch: | No | Indexing Clutch: | Yes |
| Bore Size (in): | 0.31496 in | Overrunning Clutch: | Yes |
| Bore Size (mm): | 8 mm | Product Type: | NSS Series |
| Overall Diameter (in): | 0.9 in | RPM Max. -inner Race: | 6, 000 |
| Outer Width (in): | 0.3 in | Nominal Overrunning Drag (ft-lb): | 0.004 |
| Inner Race Width (in): | 0.3 in | UPC: | 662460387758 |
| Weight: | 0.08 LB | Packaged Length: | 2.60 Inches |
| Packaged Width: | 2.50 Inches | Packaged Height: | 1.20 Inches |
| HTC: | 8483.60.4040 | Country of Origin: | Japan |
