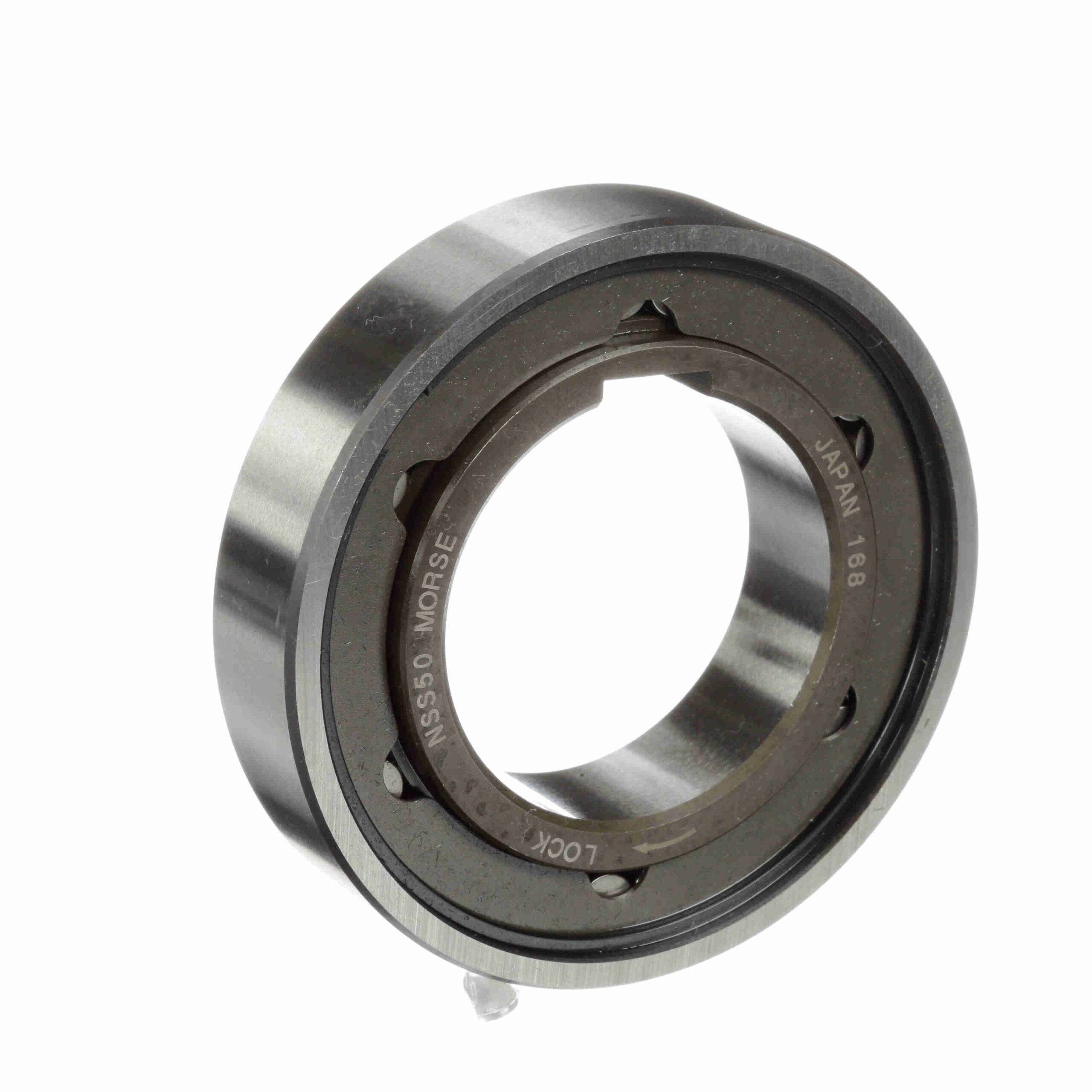

NSS-50 CLUTCH

Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry
The NFS Sprag one way clutch is designed with the same overall dimensions as medium series metric ball bearing.
Manufactured with an inner race containing a key seat and out race containing key slots

Drag Torque (N-m):	.22	Keyway (mm):	14 x 2.1 mm
Rated Torque Capacity (ft.-lbs.):	297.2	Lubrication Type:	The clutches are supplied with a protective coating of oil and must be lubricated before putting into service.
Maximum Overrunning Speed - Inner Race (rpm):	1, 200	Type:	CAM Clutches
Model:	NSS 50	Keyway (in):	0.55 x 0.08 in
Drag Torque (lb-in):	1.9476	Maximum Overrunning Speed - Outer Race (rpm):	600
Rated Torque Capacity (N-m):	403	Add'l Bearing Support Requirement:	Yes
Bore Size (mm):	50 mm	Indexing Clutch:	Yes
Backstopping Clutch:	No	Bore Size (in):	1.968498 in
Product Type:	NSS Series	Overrunning Clutch:	Yes
UPC:	662460387734	Weight:	1.22 LB
Packaged Length:	3.80 Inches	Packaged Width:	3.60 Inches
Packaged Height:	1.60 Inches	HTC:	8483.60.4040
Country of Origin:	Japan
