- Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry
- The NFS Sprag one way clutch is designed with the same overall dimensions as medium series metric ball bearing.
- Manufactured with an inner race containing a key seat and out race containing key slots

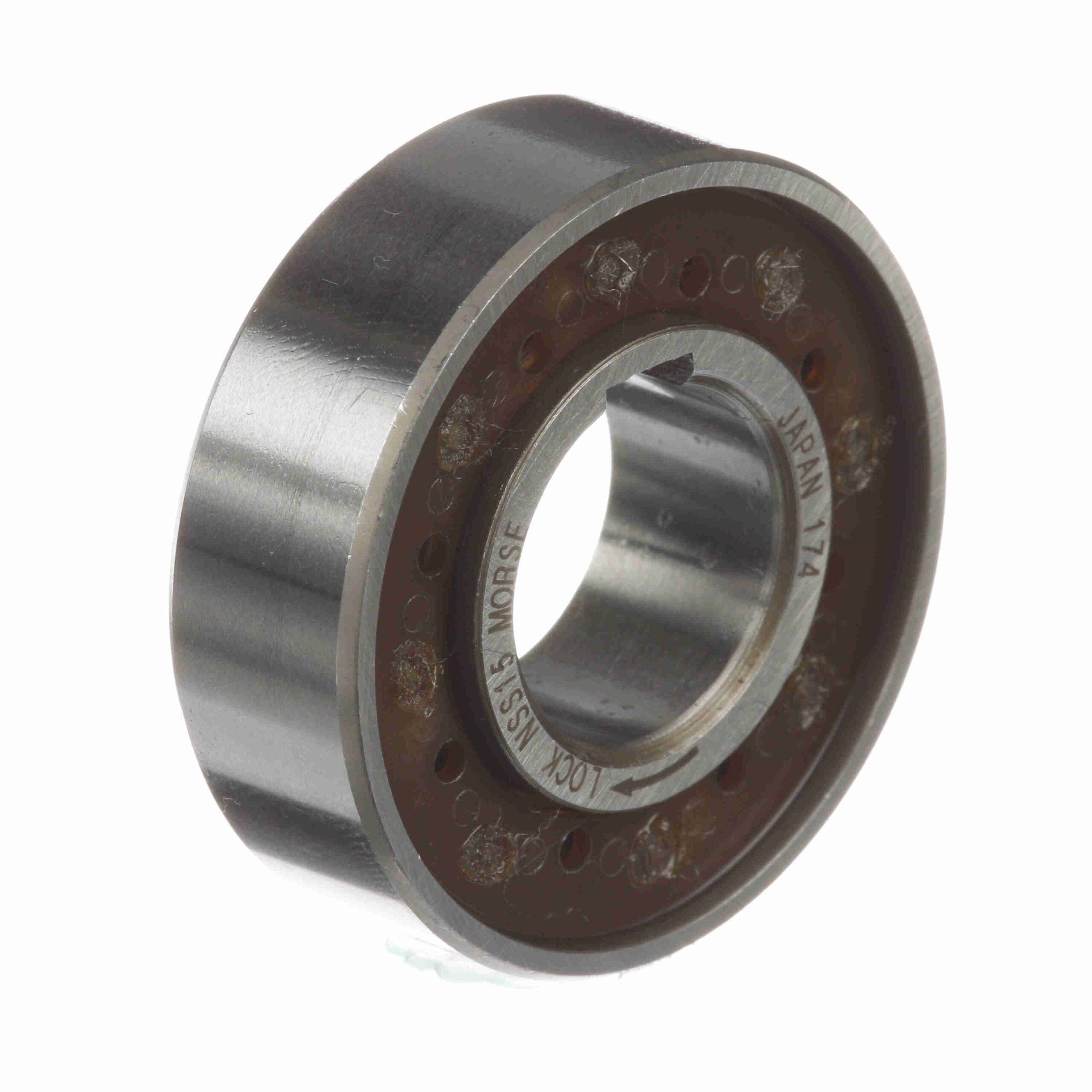

NSS-15 CLUTCH
Morse NSS Series CAM Clutch – NSS-15 CLUTCH
$745.47
Out of stock
Out of stock
| Maximum Overrunning Speed - Inner Race (rpm): | 3, 500 | Drag Torque (N-m): | .01 |
|---|---|---|---|
| Keyway (in): | 0.20 x 0.05 in | Drag Torque (lb-in): | .0888 |
| Rated Torque Capacity (N-m): | 22 | Lubrication Type: | The clutches are supplied with a protective coating of oil and must be lubricated before putting into service. |
| Model: | NSS 15 | Type: | CAM Clutches |
| Rated Torque Capacity (ft.-lbs.): | 16.2 | Keyway (mm): | 5 x 1.2 mm |
| Maximum Overrunning Speed - Outer Race (rpm): | 1, 800 | Add'l Bearing Support Requirement: | Yes |
| Overrunning Clutch: | Yes | Product Type: | NSS Series |
| Backstopping Clutch: | No | Bore Size (mm): | 15 mm |
| Bore Size (in): | 0.590549 in | Indexing Clutch: | Yes |
| UPC: | 662460387666 | Weight: | 0.55 LB |
| Packaged Length: | 2.60 Inches | Packaged Width: | 2.50 Inches |
| Packaged Height: | 1.20 Inches | HTC: | 8483.60.4040 |
| Country of Origin: | Japan |
