- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120? spacing setscrew locking with diamond faceted setscrews
- Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation
NPL-28

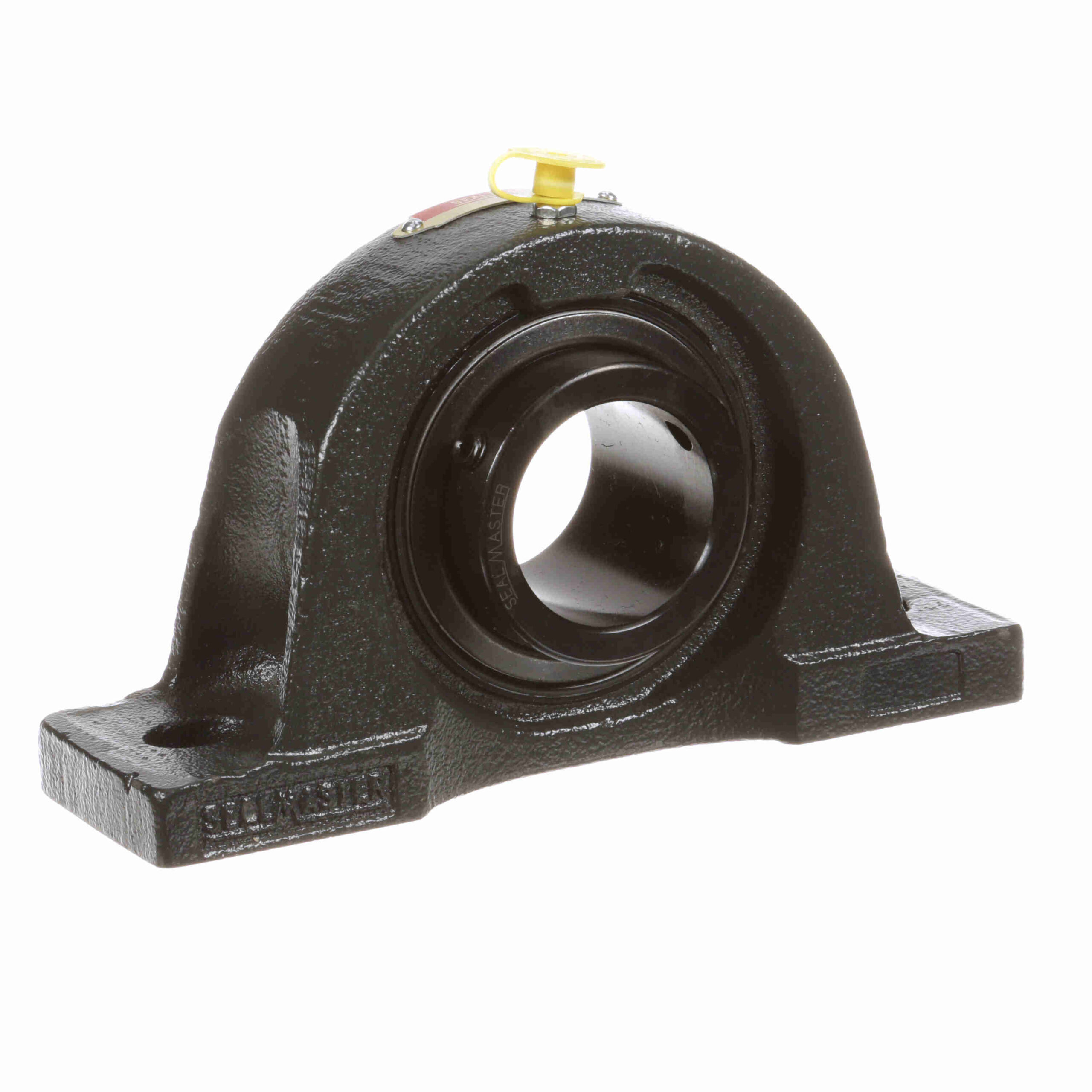

Sealmaster Mounted Cast Iron Two Bolt Low Base Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – NPL-28
$162.62
Out of stock
Out of stock
| Duty Series: | Standard Duty | Housing Material: | Cast Iron |
|---|---|---|---|
| Housing Base: | Solid | Internal Clearance: | Standard |
| Retainer Type: | Land Riding Retainer | Insert Material: | 52100 Bearing Steel; Black Oxided |
| Expansion: | No | Housing Type: | Pillow Block; Two Bolt; Low Base |
| Speed (Max): | 3800 | Seal Type: | Felt Labyrinth Seal |
| Rolling Element: | Ball Bearing | Measure Units: | Inch |
| Maximum Operating Temperature: | 220 °F | Insert No.: | 2-112 |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 7, 901 |
| Inner-Race Heat-Treat Method: | Zone-Hardened | Relubricatable: | Yes |
| Misalignment: | ±2.0° Misalignment - Static Only | Locking Type: | Setscrew |
| Lubrication: | Lithium Complex NLGI 2 Grease | Housing Construction: | One Piece |
| Housing Color: | Gray | Misalignment Type: | Static Only |
| Platform: | Gold Line Ball Bearing | End Cap: | No |
| Replaceable Insert: | Yes | Outer Ring Land Profile: | Standard |
| Bearing Insert Coating: | Black Oxide Coated | Radial Static Load Capacity (lb): | 5, 139 |
| UPC: | 662461004708 | Weight: | 6.35 LB |
| Packaged Length: | 5.19 Inches | Packaged Width: | 2.13 Inches |
| Packaged Height: | 7.81 Inches | HTC: | 8483.20.8040 |
| Country of Origin: | United States of America |
