- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
NPL-10 DBB

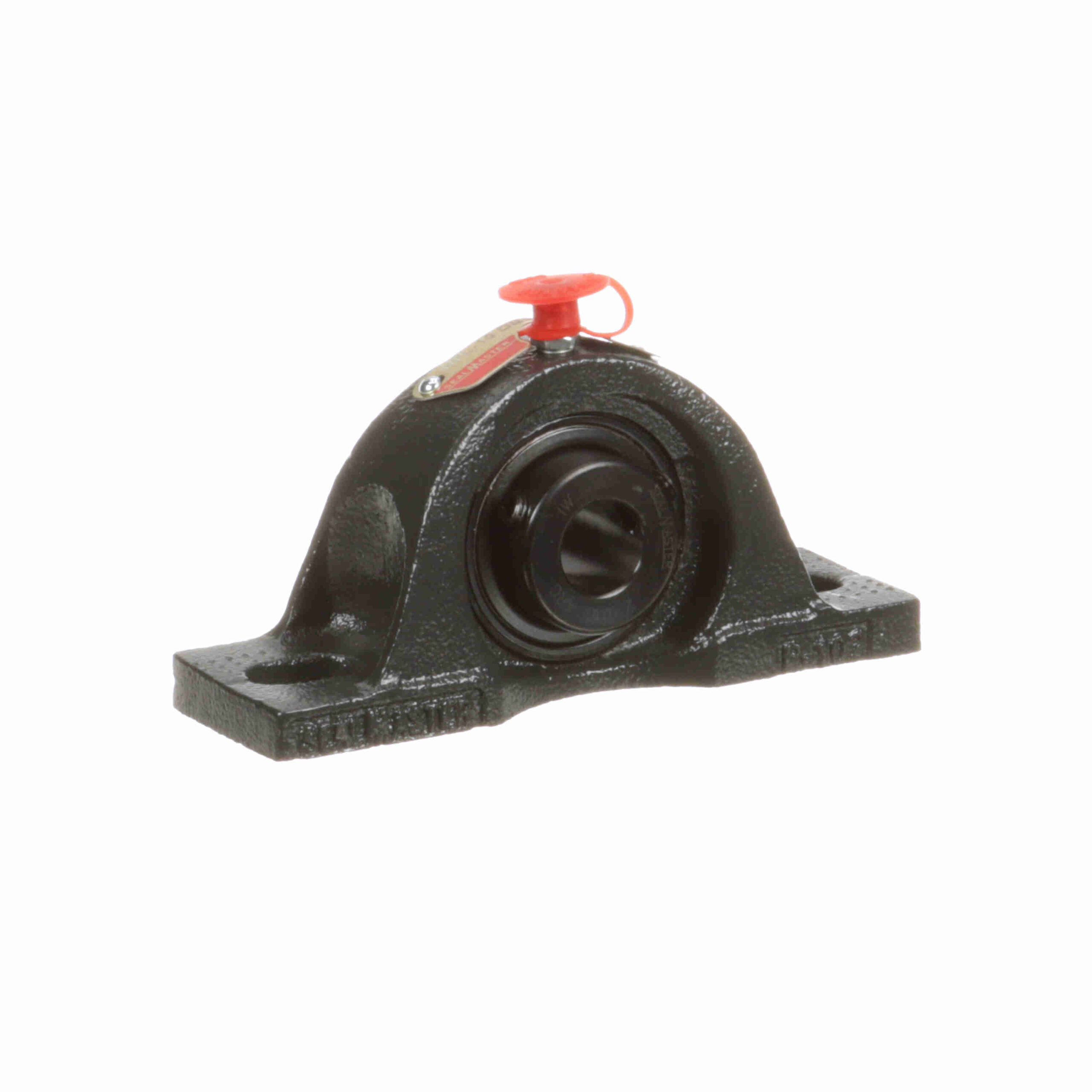

Sealmaster Mounted Cast Iron Two Bolt Low Base Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – High Temperature – NPL-10 DBB
$174.97
Out of stock
Out of stock
| Expansion: | No | Housing Type: | Pillow Block, Two Bolt, Low Base |
|---|---|---|---|
| Housing Material: | Cast Iron | Insert Material: | 52100 Bearing Steel, Black Oxided |
| Insert No.: | 2-010 ARC | Speed (Max): | 7300 |
| Measure Units: | Inch | Internal Clearance: | Standard |
| Retainer Type: | Land Riding Retainer | Rolling Element: | Ball Bearing |
| Duty Series: | Standard Duty | Seal Type: | High Temp Labyrinth |
| Housing Base: | Solid | Maximum Operating Temperature: | 220 °F |
| Lubrication: | Lithium Complex Grease With Synthetic Oil | Bore Shape: | Straight |
| Relubricatable: | Yes | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Locking Type: | Setscrew | Misalignment: | ±2.0° Misalignment - Static Only |
| Housing Construction: | One Piece | Replaceable Insert: | Yes |
| Options: | High Temperature | Housing Color: | Gray |
| Bearing Insert Coating: | Black Oxide Coated | Misalignment Type: | Static Only |
| Outer Ring Land Profile: | Standard | Platform: | Gold Line Ball Bearing |
| End Cap: | No | Operating Temperature Range: | Max. +400°F |
| UPC: | 662461301777 | Weight: | 1.70 LB |
| Packaged Length: | 3.19 Inches | Packaged Width: | 1.69 Inches |
| Packaged Height: | 5.25 Inches | HTC: | 8483.20.8040 |
| Country of Origin: | United States of America |
